JCC JC121400 LED Strip 10m 24V 4.8W IP20 3000K
Estimated delivery time: Estimated delivery tomorrow*
Description

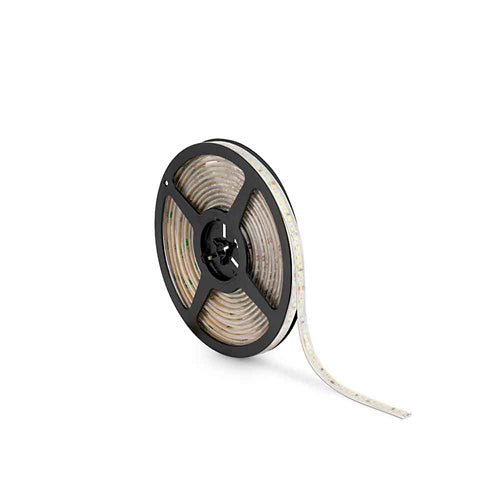

JCC JC121400 10m 24V 4.8W/m 3000K IP20 Warm White LED Strip

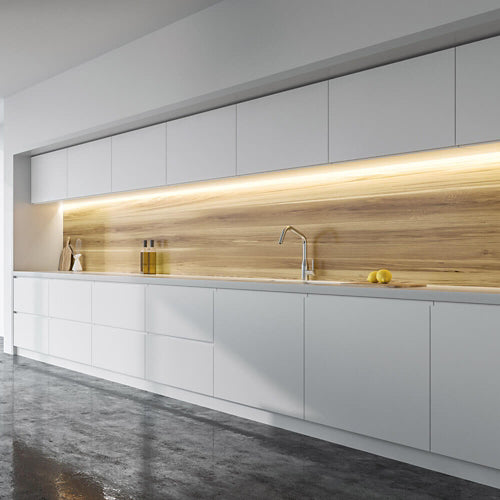

Create comfortable, professional accent lighting with the JCC JC121400 10m LED strip. Producing a welcoming 3000K warm white light, this energy-efficient LED tape is ideal for kitchens, cabinets, shelving, wardrobes, display units, reception areas and architectural lighting features.
The JC121400 consumes only 4.8W per metre while delivering 480 lumens per metre. Across the complete 10-metre reel, that provides a nominal output of 4,800 lumens from a connected load of just 48W.
With 120 LEDs per metre, the strip creates closely spaced illumination that helps reduce visible dark areas. Convenient 50mm cutting points allow electricians to tailor the strip accurately to the installation, while the self-adhesive backing supports quick positioning on a clean, dry and suitable surface.
Its 10mm-wide flexible design fits compatible surface-mounted, recessed, corner and plaster-in LED profiles. Installing the strip inside an aluminium profile can improve presentation, diffuse the individual LED points and assist with heat dissipation.
Key features
- 10-metre professional LED strip reel
- 24V DC Class III operation
- Energy-efficient 4.8W consumption per metre
- 480-lumen output per metre
- Approximately 4,800 lumens across the complete reel
- Comfortable 3000K warm white illumination
- 120 LEDs per metre for closely spaced light
- Accurate 50mm cutting intervals
- Wide 120° beam angle
- CRI 80 colour rendering
- Slim 10mm strip width
- Self-adhesive tape fixing
- IP20 rating for dry indoor locations
- Dimmable when used with a compatible dimmable driver and control
- Three-year JCC manufacturer’s warranty
The complete reel requires a correctly sized 24V constant-voltage LED driver capable of supporting its 48W connected load. A compatible 50W driver can operate up to approximately 10.4 metres of this 4.8W/m strip according to JCC’s driver calculation table.
Please note that the JC121400 is the IP20 indoor version and should not be exposed to moisture or water. The LED driver, profile, connectors and other installation accessories should be selected separately for the intended application. Installation should be completed by a suitably qualified electrician in accordance with current wiring regulations.
