JCC JC121268 LED Strip 5 meters 24V 4.8W IP20 3000K

JCC JC121268 LED Strip 5 meters 24V 4.8W IP20 3000K

SKU JC121268
£16.74 - £16.74
£16.74 inc VAT £13.95 exc VAT
£16.74 - £16.74
£16.74 inc VAT £13.95 exc VAT inc VAT £13.95 exc VAT
Datasheet

Estimated delivery time: Estimated delivery tomorrow*

Description

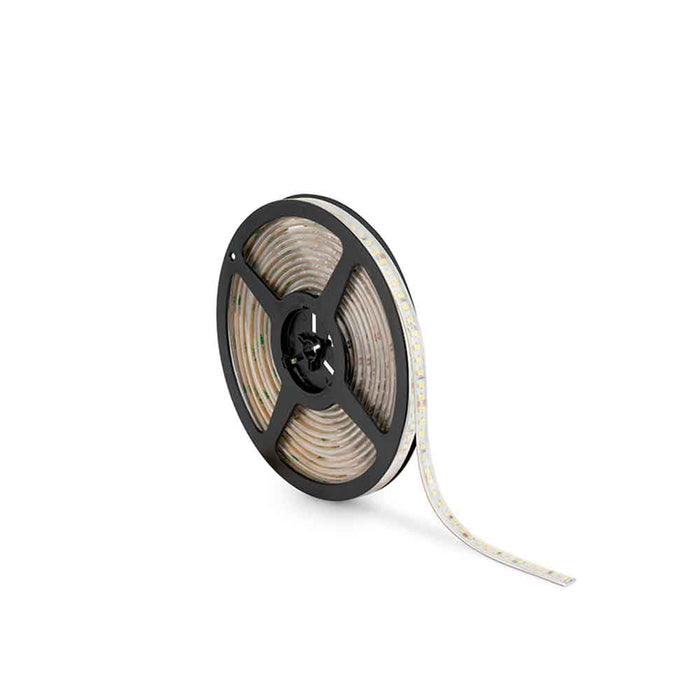

The JCC JC121268 5m LED Strip is a professional 24V 3000K warm white LED tape designed for electricians, electrical contractors, kitchen installers, lighting designers and homeowners who need flexible, energy-efficient indoor LED strip lighting. Supplied as a continuous 5 metre LED strip reel, the JC121268 combines a low 4.8W per metre power consumption with an output of approximately 480 lumens per metre, making it an excellent option for decorative lighting, task lighting, accent lighting and concealed architectural illumination.

With 120 LEDs per metre, the JCC JC121268 provides closely spaced LEDs for a more even distribution of warm white light along the strip. The 3000K warm white colour temperature produces a comfortable, welcoming appearance that works particularly well in homes, kitchens, bedrooms, living rooms, hospitality interiors, reception areas and retail installations where a warmer lighting effect is preferred.

The JCC 24V LED strip is particularly useful for bespoke installations because it can be cut at 50mm intervals. These short cut points allow electricians and installers to tailor the strip accurately to cabinets, shelving, coves, recesses, display units and custom aluminium LED profiles, helping reduce wasted strip and achieve a cleaner finished installation.

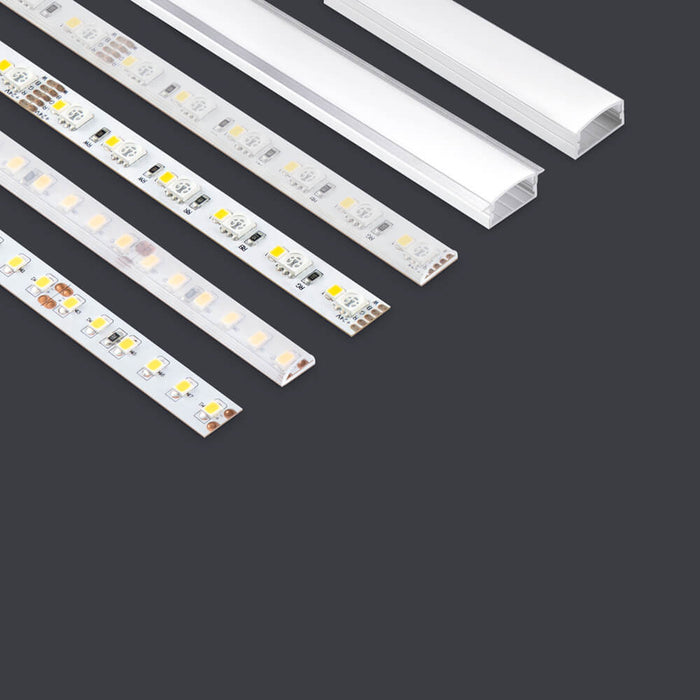

At only 10mm wide, the JCC JC121268 is suitable for discreet installation in many LED strip channels and aluminium profiles. JCC specifically offers compatible aluminium profile options, making this 5m LED tape suitable for professional surface-mounted, recessed and concealed lighting projects where a neat and finished appearance is important.

Installation is simplified by the integrated adhesive tape fixing, allowing the LED strip to be positioned onto a clean and suitable mounting surface or installed within an appropriate aluminium profile. Because it operates from a 24V supply, a compatible 24V LED driver is required for installation.

The JC121268 also provides flexibility for projects requiring dimmable LED strip lighting. JCC offers compatible Triac dimmable, 1–10V dimmable and non-dimmable 24V drivers, meaning the final dimming capability depends on the driver selected for the installation. This makes the strip suitable for everything from straightforward switched cabinet lighting to more advanced adjustable ambient lighting schemes.

Producing approximately 480 lumens per metre at 4.8W per metre, the strip achieves around 100 lumens per circuit watt per metre. Combined with a wide 120° beam angle, the JC121268 distributes light across a broad area rather than producing a narrow concentrated beam, making it useful for continuous linear illumination along shelves, worktops, coves and architectural details.

The CRI 80 performance provides dependable colour rendering for everyday residential and commercial applications. Its IP20 rating means the strip is designed for dry indoor locations, making it suitable for internal rooms and enclosed installations rather than exposed outdoor or wet-area applications.

Ideal Applications

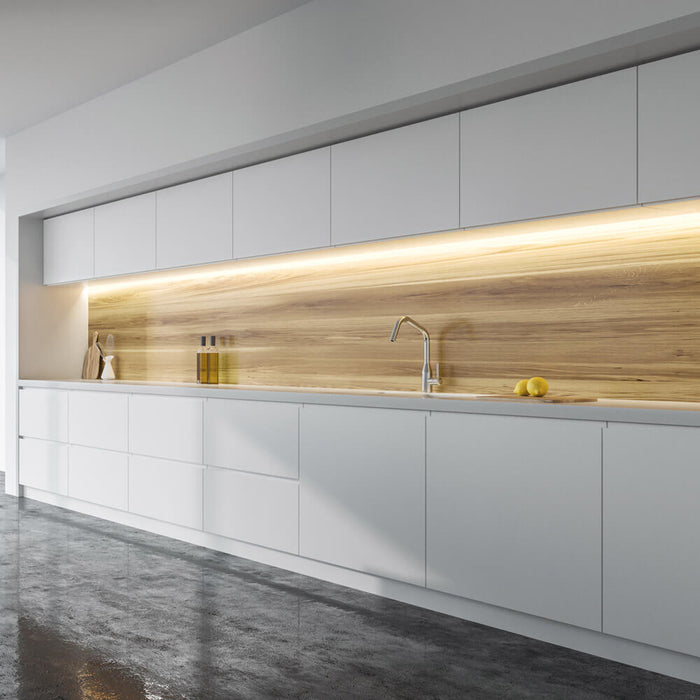

The JCC JC121268 warm white LED strip is an excellent choice for kitchen cabinet lighting, under-cabinet LED lighting, kitchen plinth lighting, shelving illumination, wardrobes, bedrooms, living rooms, ceiling coves, media units, display cabinets, reception desks, retail displays, hospitality interiors and architectural feature lighting.

For electricians searching for a reliable JCC LED strip, 24V LED tape, 3000K LED strip, 5m warm white LED strip, 4.8W LED strip, under cabinet lighting strip or indoor architectural LED tape, the JCC JC121268 offers a versatile solution backed by a 3-year JCC warranty.

Specification

The JCC JC121268 is a 5 metre warm white LED strip for indoor lighting installations. It runs on 24V, uses 4.8 watts per metre and produces around 480 lumens per metre, making it suitable for low-energy accent, cabinet, shelf and architectural lighting. The strip produces a 3000K warm white light, which is commonly chosen where a softer and more comfortable appearance is wanted rather than a cooler white light.

For customers asking “Which LED strip can I use under kitchen cabinets?”, the JC121268 is a strong option because it is only 10mm wide, uses adhesive tape for fixing and can be cut every 50mm, allowing the installer to achieve more accurate lengths around cabinets, shelves and furniture.

It contains 120 LEDs per metre, helping distribute light more evenly across the 5m strip, while the 120-degree beam angle spreads illumination over a broad area. It is rated IP20, so it should be used in dry indoor environments rather than exposed outdoor or wet locations.

The JCC JC121268 can also be used in a dimmable LED strip installation, provided that a suitable compatible driver is selected. JCC lists Triac and 1–10V dimmable driver options alongside non-dimmable 24V drivers. A 24V LED driver is therefore required and should be chosen to suit the total wattage and required control method of the installation.

This makes the JC121268 especially suitable for searches such as warm white kitchen LED tape, low wattage cabinet lighting, 24V shelf lighting, LED strip for aluminium profile, cuttable LED tape, concealed ceiling lighting and professional LED strip for electricians.

FAQ's

What is the JCC JC121268 5m LED strip used for?

The JCC JC121268 is a 5 metre 24V warm white LED strip designed for indoor accent, task and architectural lighting. It is particularly suitable for under kitchen cabinets, shelving, wardrobes, display cabinets, ceiling coves, media units, retail displays and aluminium LED profiles. Its 3000K colour temperature provides a comfortable warm white appearance.

Is the JCC JC121268 suitable for under kitchen cabinet lighting?

Yes. The JCC JC121268 LED strip is a good option for under-cabinet and kitchen feature lighting in suitable dry indoor locations. It is only 10mm wide, has adhesive fixing and can be cut every 50mm, allowing electricians and kitchen installers to create accurate lengths for individual cabinets and runs.

What LED driver do I need for the JCC JC121268?

The JCC JC121268 requires a suitable 24V LED driver. Because the strip consumes 4.8W per metre, the required driver capacity depends on the total length of LED strip being installed. The driver should be correctly sized with sufficient capacity for the complete connected load. JCC offers compatible driver options for the range.

Is the JCC JC121268 LED strip dimmable?

Yes, the JCC JC121268 can form part of a dimmable LED strip installation when paired with the appropriate compatible dimmable driver. JCC lists both Triac and 1–10V dimmable driver options alongside non-dimmable drivers, so the correct driver should be selected for the required lighting controls.

Can I cut the JCC JC121268 5m LED strip to size?

Yes. One of the useful features of the JCC JC121268 5m LED tape is its 50mm cut points. This allows the strip to be shortened in relatively small increments, making it useful for bespoke cabinet, shelf, furniture, cove and architectural lighting installations. Only cut the strip at the designated cut points.
