Red Arrow TRAN10-1 10kVA Single Phase Site Transformer – 230V to 110V, 4 × 16A & 2 × 32A

Red Arrow TRAN10-1 10kVA Single Phase Site Transformer – 230V to 110V, 4 × 16A & 2 × 32A

SKU TRAN10-1
£550.00 - £550.00
£550.00 inc VAT £458.33 exc VAT
£550.00 - £550.00
£550.00 inc VAT £458.33 exc VAT inc VAT £458.33 exc VAT
Datasheet

Estimated delivery time: Estimated delivery tomorrow*

Description

Set up your temporary site power with the Red Arrow TRAN10-1 10kVA single phase site transformer. This 230V to 110V step-down transformer supplies compatible power tools and lighting, making it an option for contractors planning construction site power, refurbishment work and temporary lighting installations.

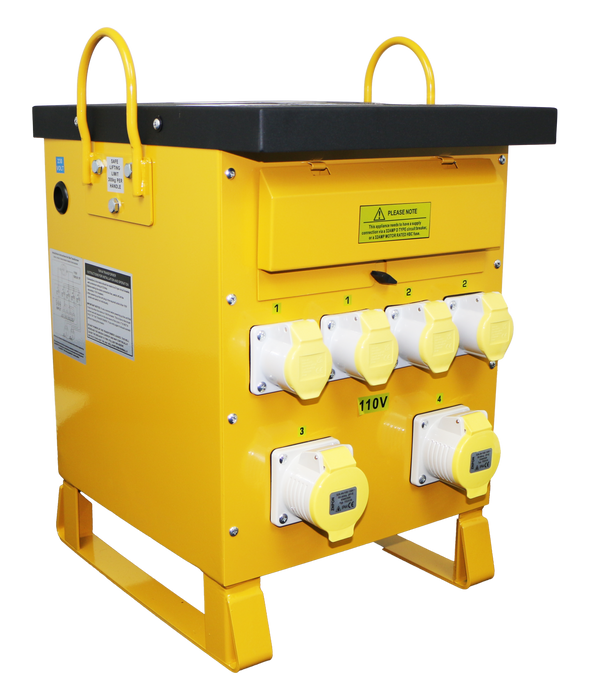

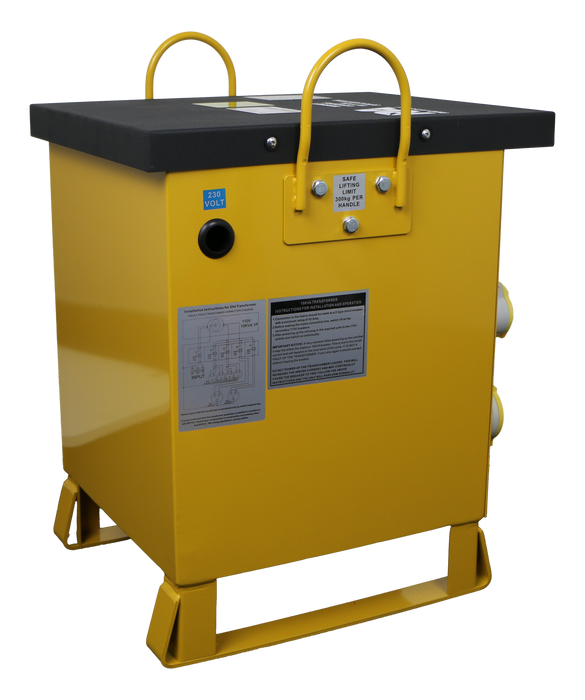

With four 16A sockets and two 32A sockets, this 110V site transformer offers connection points for different equipment requirements. Choose suitable tools, lights and leads, and assess their combined load before use.

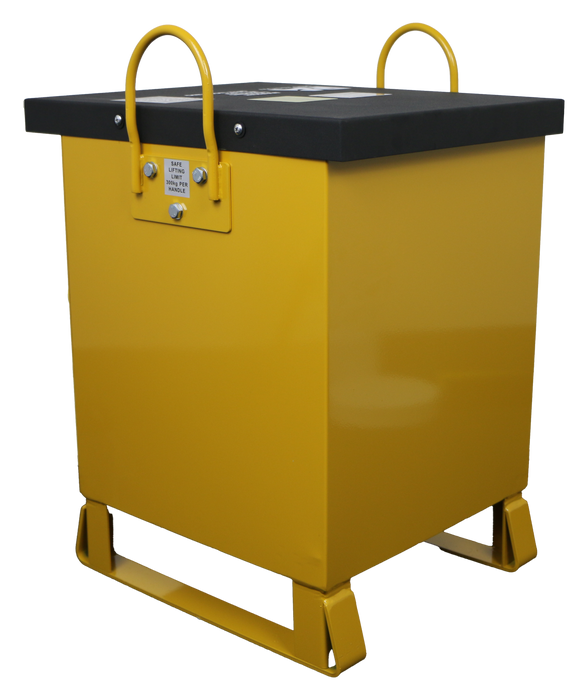

The yellow steel enclosure, carry handles and IK07 impact rating provide practical features for a working site. Resettable thermal overload protection disconnects the output if overheating occurs.

Choose the Red Arrow TRAN10-1 transformer from Electricals Online when organising a single phase site power supply for your next project.

10kVA is the intermittent maximum: 5 minutes on, 15 minutes off. Use a suitably rated supply and keep the transformer protected from wet conditions.

FAQ's

Is the Red Arrow TRAN10-1 a single phase transformer?

Yes. TRAN10-1 is the single phase model. Red Arrow lists TRAN10-3 separately as the three phase version.

How many sockets does the Red Arrow TRAN10-1 have?

Six: four 16A outlets and two 32A outlets. The combined equipment load must remain within the transformer and supply limits.

Can the Red Arrow TRAN10-1 power tools and site lights?

Yes, it is designed for compatible power tools and lighting. Check each device’s voltage, connector and load requirements before connection.

Can the Red Arrow TRAN10-1 deliver 10kVA continuously?

No. Its 10kVA maximum follows a 5-minute-on, 15-minute-off duty cycle. Confirm the model-specific continuous rating before planning sustained loads.

What supply does the Red Arrow TRAN10-1 require?

The instructions list a 230V, 50Hz, 32A input. Have a qualified electrician confirm the appropriate supply and connection.

Is the Red Arrow TRAN10-1 waterproof?

No. It is IP22 rated, and the manufacturer instructs users to keep it dry and protected from damp or wet conditions.

Does the Red Arrow TRAN10-1 have overload protection?

Yes. A resettable thermal cut-out protects against overheating. Allow cooling and address the cause before resetting.

How heavy is the Red Arrow TRAN10-1 site transformer?

Net weight is 68.4kg. Although carry handles are fitted, plan suitable handling and positioning for this substantial unit.
