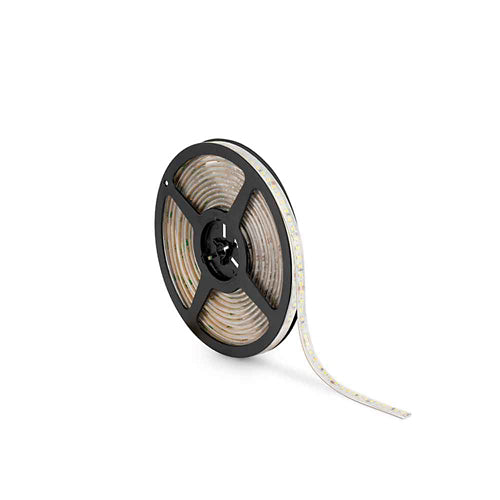

JCC JC121413 LED Strip 24V 4.8W IP65 3000K - 40m

JCC JC121413 LED Strip 24V 4.8W IP65 3000K - 40m

SKU JC121413
£146.26 - £146.26
£146.26 inc VAT £121.88 exc VAT
£146.26 - £146.26
£146.26 inc VAT £121.88 exc VAT inc VAT £121.88 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

OPTIONS
Description

Create consistent warm-white feature lighting across larger projects with the JCC JC121413 40m IP65 LED Strip. Supplied as a generous 40-metre contractor reel, this professional 24V LED tape is ideal for dividing into multiple coordinated lighting zones throughout hospitality venues, residential developments, retail interiors and sheltered exterior installations.

Producing 480 lumens per metre while consuming only 4.8W per metre, the JC121413 delivers efficient background and accent lighting without overpowering the space. Its inviting 3000K warm-white colour temperature is particularly effective in restaurants, hotels, bars, reception areas, kitchens, bedrooms and architectural features where a comfortable atmosphere is required.

With 120 LEDs per metre, the strip produces a closely spaced, more uniform lighting effect. The tape can be cut every 50mm at the marked copper contact points, allowing electricians to create accurately measured sections for shelving, cabinetry, coving, display lighting and illuminated architectural details.

The IP65 construction provides protection against dust and water jets when the strip is correctly installed and every cut or connection is properly resealed. For a professional finish, install the tape inside a compatible JCC aluminium LED profile. The profile can improve heat management, protect the strip and help create a smoother diffused light line.

A complete 40-metre reel has a calculated connected load of 192W and a nominal combined output of 19,200 lumens. It should normally be divided into separately powered sections rather than operated as one long end-fed run. For example, the reel can be designed as four 10-metre lighting zones, with each zone drawing 48W and being powered by a suitably selected 24V constant-voltage driver.

The JCC JC121413 is dimmable when used with a compatible dimmable 24V driver and control system, giving installers the flexibility to create comfortable ambient lighting, brighter task illumination or individually controlled lighting zones.

Key benefits:

  • Large 40-metre project reel for multi-zone installations
  • Warm 3000K light for comfortable, welcoming environments
  • 480 lumens per metre with an efficient 4.8W/m load
  • 120 LEDs per metre for closely spaced illumination
  • IP65-rated strip for suitably protected indoor and outdoor applications
  • Precise 50mm cutting intervals
  • Compatible with a range of surface, recessed, corner and plaster-in profiles
  • Dimmable with a suitable driver and control arrangement
  • 120° beam angle for broad, even illumination
  • Backed by JCC’s three-year warranty

Please note: a compatible 24V constant-voltage driver, aluminium profile, connectors and installation accessories may be required and are normally purchased separately.

Specification

The JCC JC121413 is a 40-metre reel of professional 24V, 3000K warm-white IP65 LED strip. It consumes 4.8W and produces 480 lumens per metre, with 120 LEDs per metre and cutting points every 50mm. The complete reel represents a 192W connected load, so it is best divided into shorter, separately powered lighting zones. A practical design is four 10-metre sections, each using approximately 48W and a suitable 24V constant-voltage driver. The strip can be dimmed with compatible control equipment and installed in JCC aluminium profiles for protection, heat dissipation and improved light diffusion.

FAQ's

What type of project is the JCC JC121413 40m IP65 LED Strip designed for?

The JCC JC121413 is particularly suitable for larger installations requiring several matching warm-white lighting sections. Its 40-metre reel can be divided across hospitality interiors, residential developments, retail displays, kitchens, fitted furniture, coving and architectural features.

What are the total wattage and lumen output of the JCC JC121413 40m IP65 LED Strip?

At 4.8W and 480 lumens per metre, the complete 40-metre reel has a calculated connected load of 192W and a nominal combined output of 19,200 lumens. Actual results can vary according to the driver, wiring, installation and operating conditions.

Can the JCC JC121413 40m IP65 LED Strip be powered as one continuous 40-metre run?

A single 40-metre end-fed run is not recommended. Voltage drop can cause reduced brightness and inconsistent illumination over longer distances. JCC advises considering a new power supply every 10 metres, depending on the driver, cable and installation configuration.

How can an electrician divide the JCC JC121413 40m IP65 LED Strip into four lighting zones?

One practical arrangement is four separate 10-metre sections. Each section consumes approximately 48W, allowing it to be paired with a suitably selected 50W 24V constant-voltage driver. Cable length, control equipment and installation conditions must also be considered.

Can one 180W driver power the complete JCC JC121413 40m IP65 LED Strip reel?

No. The complete reel requires 192W, which exceeds a 180W driver’s rated maximum. Dividing the strip into separately powered sections also helps reduce voltage-drop problems and provides more flexible zone control.

Can several sections of the JCC JC121413 40m IP65 LED Strip share one larger driver?

Multiple sections may be connected to one correctly specified constant-voltage driver using properly calculated parallel feeds, provided the combined load does not exceed the driver’s capacity. Cable size, voltage drop, protection and driver accessibility must be assessed by the installer.

How is the IP65 rating maintained after cutting the JCC JC121413 40m IP65 LED Strip?

Cutting or reconnecting the strip can compromise its original protection. Each exposed end or joint must be correctly resealed using appropriate heat-shrink, silicone end caps and suitable silicone sealant. Maintaining the required IP rating is the installer’s responsibility.

Where can the JCC JC121413 40m IP65 LED Strip be cut and reconnected?

The strip may only be cut at its marked copper contact points, positioned every 50mm. Connections must maintain the correct positive-to-positive and negative-to-negative polarity. Compatible connectors and appropriately sized DC cable should be used.

Is the JCC JC121413 40m IP65 LED Strip dimmable across multiple zones?

Yes, provided every zone uses compatible dimmable 24V drivers and suitable controls. Zones may be controlled together or independently, depending on the chosen dimming system, driver compatibility and wiring design.

Does the JCC JC121413 40m IP65 LED Strip need an aluminium profile?

An aluminium profile is strongly recommended for a clean professional installation. It helps protect the tape, assists heat dissipation and supports a diffuser for a smoother light line. Available options include surface, recessed, corner and plaster-in profiles. IP65 does not make the product suitable for submersion or continual exposure to running water.
