JCC JC121436 LED Strip 24V 14.4W IP20 3000K - 20M

JCC JC121436 LED Strip 24V 14.4W IP20 3000K - 20M

SKU JC121436
£99.00 - £99.00
£99.00 inc VAT £82.50 exc VAT
£99.00 - £99.00
£99.00 inc VAT £82.50 exc VAT inc VAT £82.50 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

OPTIONS
Description

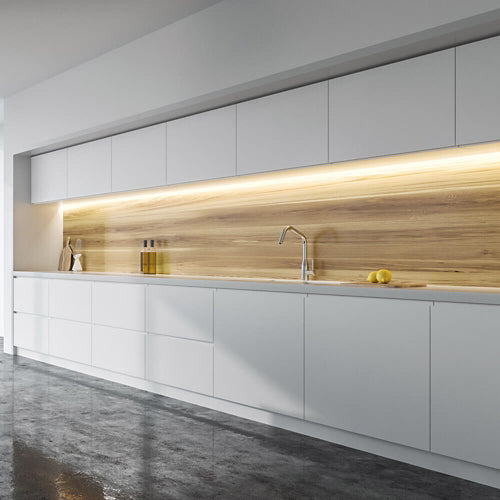

The JCC JC121436 20m LED strip gives electricians a generous length of warm white LED tape for indoor lighting projects. Use it to plan tailored lighting along kitchen cabinets, worktops, shelving, alcoves, display units and fitted joinery. For homeowners, its 3000K warm white colour creates a welcoming look while providing useful light where it is needed.

This JCC LED tape is rated at 1,440 lumens per metre and 14.4W per metre, with 120 LEDs per metre and a 120° beam angle. That makes JC121436 a strong option for projects where the strip needs to do more than provide a faint decorative glow. The tape is 10mm wide and can be cut at its marked 50mm intervals, giving installers flexibility when measuring around cabinets, shelving and architectural features. JCC specifies an adhesive tape fixing method.

The 20m length is particularly useful when a project calls for several sections of matching warm white lighting. An electrician can measure and cut the lengths needed for separate cabinets, shelves or runs, then plan the connections and power supplies for each section. JCC offers surface, slimline surface, recessed, corner and plaster-in profile options across its LED strip range. A suitable profile and diffuser can give an exposed installation a cleaner finish and help soften the appearance of individual LED points.

Plan the power supply before installation. JC121436 operates at 24V DC and requires a compatible driver. At 14.4W/m, using the entire 20m length represents a 288W strip load, but a 20m reel should not be assumed to work as one strip powered from a single end. JCC warns that voltage drop can reduce light output on runs over 10m and advises considering a new power supply every 10m. The driver, cable and layout must be specified for the actual lengths installed. Dimming is possible depending on the driver and controls selected. JC121436 is the IP20 indoor version. Select a suitably rated alternative where the strip will be exposed to moisture or outdoor conditions. JCC lists a three-year warranty for this product.

Product specifications: JCC JC121436 · 20m LED tape · 24V DC · 3000K warm white · IP20 · 14.4W/m · 1,440lm/m · 120 LEDs/m · 50mm cut points · 10mm width · CRI Ra 80 · 120° beam angle.

FAQ's

What is the JCC JC121436 LED strip suitable for?
JC121436 is designed for indoor LED strip lighting. It can be used for planned lighting in kitchens, under cabinets, around shelving, within joinery and along interior display features, provided the installation suits its IP20 rating.

Is JCC JC121436 one continuous 20m LED strip?
JCC identifies the product as 20m of LED strip, but the reel length should not be treated as confirmation that a single 20m run can be powered from one end without a drop in brightness. JCC warns about voltage drop on runs over 10m and recommends considering a new power supply every 10m.

What colour is the light from JCC JC121436?
This model produces 3000K warm white light. Check the product code when ordering, as JCC lists other colour temperature options within its LED strip range.

How bright is the JCC JC121436 20m LED tape?
JCC rates JC121436 at 1,440 lumens per metre. It has 120 LEDs per metre and a 120° beam angle. The light you see in the finished room will also depend on positioning and any profile or diffuser used.

What size driver do I need for JCC JC121436?
Specify a compatible 24V DC driver for the length connected to it. The tape uses 14.4W per metre, so a 10m section has a rated strip load of 144W. If all 20m is installed, the combined rated strip load is 288W; the circuit may need to be divided into separately planned sections to manage voltage drop. Never exceed the selected driver’s maximum wattage.

Can the JCC JC121436 LED tape be cut?
Yes. JCC specifies cut points every 50mm. Cut only at the marked copper points, because cutting between them can damage the tape and affect its light output.

Is JCC JC121436 dimmable?
Dimming depends on the driver. Choose a compatible driver and control method if dimmable kitchen lighting, cabinet lighting or accent lighting is required.

Can I use JC121436 outdoors or where it may get wet?
JC121436 is IP20. For an outdoor installation or an area requiring water protection, choose LED tape with an appropriate IP rating for that location.

Will the JCC JC121436 fit in an LED profile?
The tape is 10mm wide, and JCC lists several profile styles in its LED strip range. Check the internal dimensions of the exact profile and diffuser before ordering to confirm compatibility.

What warranty applies to JCC JC121436?
JCC lists a three-year warranty for JC121436. The applicable coverage is subject to JCC’s warranty terms.
