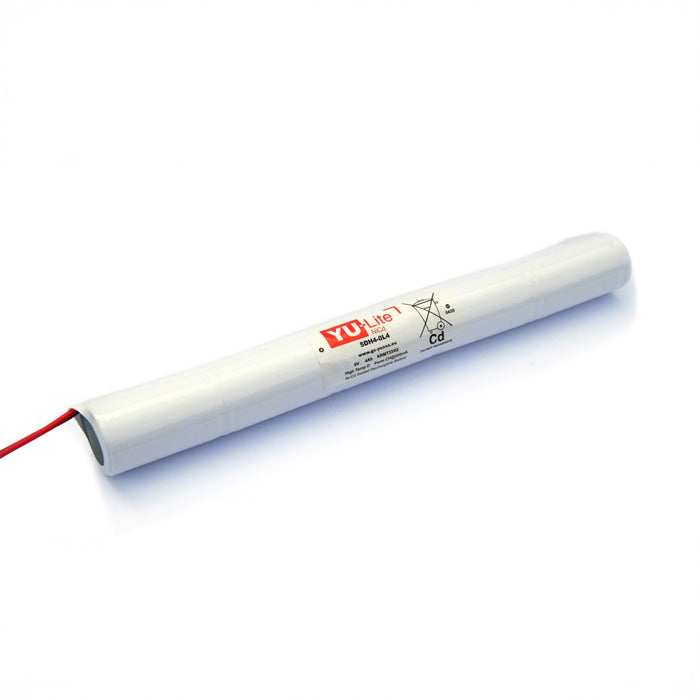

Yuasa 5DH4-0L4 6V 4Ah NiCd Emergency Lighting Battery Pack UK!!

Yuasa 5DH4-0L4 6V 4Ah NiCd Emergency Lighting Battery Pack UK!!

SKU 5DH4-0L4
£14.98 - £14.98
£14.98 inc VAT £12.48 exc VAT
£14.98 - £14.98
£14.98 inc VAT £12.48 exc VAT inc VAT £12.48 exc VAT
Datasheet

Estimated delivery time: 2-3 Working Days

Description

The Yuasa 5DH4-0L4 is a rechargeable 6V 4Ah NiCd battery pack designed for compatible emergency lighting, security, fire and other industrial applications. It forms part of the established Yuasa YU-Lite Nickel Cadmium battery range, providing reliable rechargeable power for equipment requiring a 6V 4Ah NiCd battery.

The 5DH4-0L4 contains five D-size Nickel Cadmium cells arranged in a Style 4 stick configuration. The battery is supplied with wire leads, making it suitable for replacement applications where the existing equipment requires the same voltage, capacity, physical configuration and connection.

With a nominal voltage of 6V and a capacity of 4Ah (4000mAh), the 5DH4-0L4 is designed for dependable cyclic performance. Yuasa's YU-Lite range is specifically designed for applications including emergency lighting, electronic equipment and testing equipment.

Yuasa's YU-Lite high-temperature NiCd batteries are tested to ICEL 1010, making the range suitable for applications where batteries may be exposed to elevated temperatures, including emergency lighting equipment. The range is also maintenance free and designed to provide a long service life.

Key Features

  • Brand: Yuasa
  • Part number: 5DH4-0L4
  • Product range: YU-Lite NiCd
  • Battery chemistry: Nickel Cadmium (NiCd)
  • Nominal voltage: 6V
  • Capacity: 4Ah / 4000mAh
  • Number of cells: 5
  • Cell type: D
  • Configuration: Style 4 stick
  • Connection: Wire leads
  • Rechargeable: Yes
  • High-temperature: Yes
  • Maintenance free: Yes
  • Primary application: Emergency lighting
  • Dimensions: 302 x 33.5mm
  • Lead allowance: Add 4mm to length for packs with leads

Yuasa's official YU-Lite documentation confirms that the 5DH4-0L4 is the 5-cell, 6V, 4Ah Style 4 battery with leads.

Specification

What is the Yuasa 5DH4-0L4?

The Yuasa 5DH4-0L4 is a 6V 4Ah rechargeable NiCd emergency lighting battery containing five D-size cells in a Style 4 stick configuration. It is supplied with wire leads and is designed for compatible emergency lighting and industrial applications.

FAQ's

Frequently Asked Questions

What voltage is the Yuasa 5DH4-0L4?

The Yuasa 5DH4-0L4 has a nominal voltage of 6V.

What capacity is the 5DH4-0L4?

The battery has a capacity of 4Ah, equivalent to 4000mAh.

What type of battery is the 5DH4-0L4?

It is a rechargeable Nickel Cadmium (NiCd) battery from Yuasa's YU-Lite range.

How many cells does the 5DH4-0L4 contain?

The 5DH4-0L4 contains five D-size NiCd cells.

Is the Yuasa 5DH4-0L4 rechargeable?

Yes. It is a rechargeable NiCd battery designed for repeated charging and discharge cycles.

What configuration is the 5DH4-0L4?

The 5DH4-0L4 uses a Style 4 stick configuration, with the five D-size cells arranged in-line.

Does the 5DH4-0L4 have wire leads?

Yes. The L4 version is supplied with wire leads for connection to compatible equipment.

Is the 5DH4-0L4 suitable for emergency lighting?

Yes. Yuasa specifically lists emergency lighting among the applications for its YU-Lite NiCd range.

Is the 5DH4-0L4 a high-temperature battery?

The 5DH4-0L4 is part of Yuasa's YU-Lite high-temperature NiCd D-cell range. Yuasa states that its high-temperature versions are tested to ICEL 1010.

Is the 5DH4-0L4 maintenance free?

Yes. Yuasa describes the YU-Lite NiCd range as maintenance free.

What are the dimensions of the 5DH4-0L4?

Yuasa lists the Style 4 five-cell pack at approximately 302mm long and 33.5mm in diameter. For packs with leads, Yuasa specifies an additional 4mm allowance to the length.

What applications is the 5DH4-0L4 used for?

The YU-Lite range is designed for applications including emergency lighting, electronic equipment and testing equipment.

Can I use the 5DH4-0L4 as a replacement battery?

It can be used where the equipment requires a 6V 4Ah NiCd battery with the same physical configuration and compatible connections. Always check the original battery and equipment manufacturer's requirements before replacement.

What is the difference between 4DH4-0L4 and 5DH4-0L4?

Both are 4Ah Yuasa YU-Lite NiCd batteries with Style 4 stick configurations, but they contain different numbers of cells. The 4DH4-0L4 is 4.8V with four cells, while the 5DH4-0L4 is 6V with five cells.

What is the difference between 5DH4-0L3 and 5DH4-0L4?

Both are 6V 4Ah NiCd batteries, but their physical configurations differ. The 5DH4-0L3 uses the Style 3 side-by-side configuration, measuring approximately 163 x 33.5 x 62mm, while the 5DH4-0L4 is the longer Style 4 stick configuration, measuring approximately 302 x 33.5mm.

What is the difference between 3DH4-0L4 and 5DH4-0L4?

The 3DH4-0L4 contains three cells and has a 3.6V nominal voltage, while the 5DH4-0L4 contains five cells and has a 6V nominal voltage. Both have a 4Ah capacity and Style 4 stick configuration.

What does 5DH4-0L4 mean?

The part number identifies a five-cell, 6V, 4Ah D-cell YU-Lite NiCd battery in Style 4 stick configuration with wire leads.

Is the 5DH4-0L4 a lithium battery?

No. The 5DH4-0L4 is a Nickel Cadmium (NiCd) rechargeable battery.

Who manufactures the 5DH4-0L4?

The 5DH4-0L4 is manufactured by Yuasa as part of its YU-Lite NiCd battery range.
