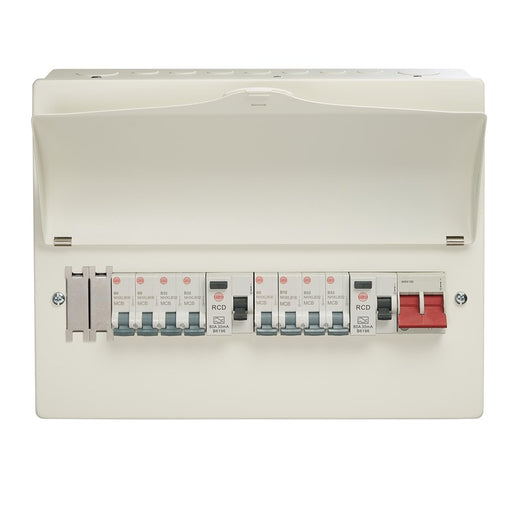

Wylex WNM1769 10 Way Pre Populated Type A Board with 100A Main Switch

Wylex WNM1769 10 Way Pre Populated Type A Board with 100A Main Switch

SKU WNM1769
Β£80.40 - Β£80.40
Β£80.40 inc VAT Β£67.00 exc VAT
Β£80.40 - Β£80.40
Β£80.40 inc VAT Β£67.00 exc VAT inc VAT Β£67.00 exc VAT
Availability:
8 in stock, ready to be shipped

Estimated delivery time: Next working day

Specification
  • Protection Miniature- / earth leakage circuit breaker
  • Total number of groups 3
  • Number of poles main switch 2
  • Main switch rated current 100 A
  • Over voltage protection No
  • Material housing Steel
  • Degree of protection (IP) IP2XC
  • Extension possible No
  • With transparent cover No
  • Lockable Yes
  • Product Standard/s BS EN 61439-3
  • Frequency 50 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
  • Amperage 100 A
  • Operating Voltage 230 V
  • Type of Current AC
  • Consumer Unit Type High integrity
  • Total final circuit modular ways 10
  • Busbar type Flexible
  • Main switch rating 100 A
  • Main switch final circuit modular ways Flexible
Product Dimensions
  • Height 261 mm
  • Width 343 mm
  • Width in number of modular spacings 16
  • Depth 121 mm
