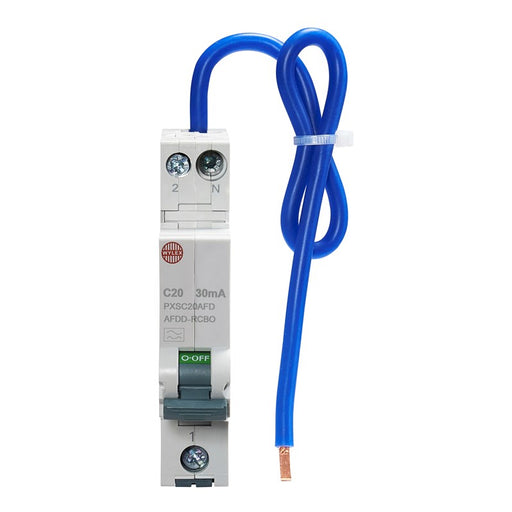

Wylex PXSC20AFD C20 30mA 10kA 1P+N Type A AFDD-RCBO (1 Module Width)

Wylex PXSC20AFD C20 30mA 10kA 1P+N Type A AFDD-RCBO (1 Module Width)

SKU PXSC20AFD
Save 5% Save 5%
£150.00
£150.00 - £150.00
£150.00
£141.85 inc VAT £118.21 exc VAT
£141.85 - £141.85
£141.85 inc VAT £118.21 exc VAT inc VAT £118.21 exc VAT
Availability:
30 in stock, ready to be shipped

Estimated delivery time: 3-4 working days

Description

Single module, Miniature AFDD/RCBO combined. 20A C curve (MCB), 30mA Type A (RCD). Single pole with switched neutral. Neutral Tail lengths = 1200mm. For use in Wylex NH Distribution Boards.

Specification
  • Number of poles (total) 2
  • Number of protected poles 1
  • Rated voltage 240 V
  • Rated current 20 A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Rated short-circuit breaking capacity according to
  • IEC 60947-2 10 kA
  • Disconnection characteristic Undelayed
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic C
  • Concurrently switching neutral conductor Yes
  • With interlocking device No
  • Over voltage category 3
  • Pollution degree 2
  • Ambient temperature during operating -25 - 45 °C
  • Width in number of modular spacings 1
  • Built-in depth 70 mm
  • Degree of protection (IP) IP20
  • Connectable conductor cross section solid-core 0.75 - 16 mm²
  • Connectable conductor cross section multi-wired 0.75 - 16 mm²
  • Product Standard/s IEC 61009-1 / IEC 62606
  • Frequency 50 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
  • Amperage 20 A
  • Height 90 mm
