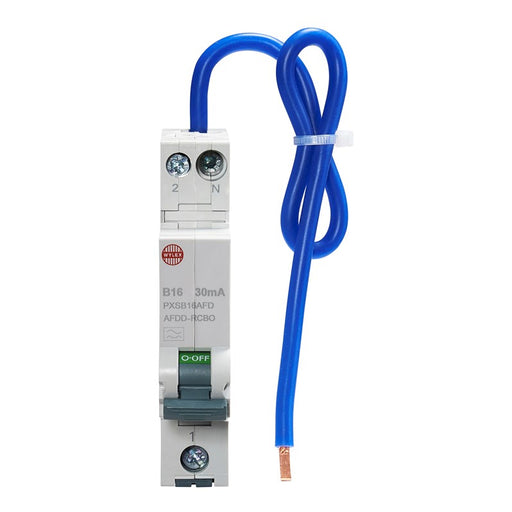

Wylex PXSB16AFD B16 30mA 10kA 1P+N Type A AFDD-RCBO (1 Module Width)

Wylex PXSB16AFD B16 30mA 10kA 1P+N Type A AFDD-RCBO (1 Module Width)

SKU PXSB16AFD
£150.00 - £150.00
£150.00 inc VAT £125.00 exc VAT
£150.00 - £150.00
£150.00 inc VAT £125.00 exc VAT inc VAT £125.00 exc VAT
Availability:
30 in stock, ready to be shipped

Estimated delivery time: 3-4 working days

Description

Protect your circuits with the Wylex PXSB16AFD B16 30mA 10kA 1P+N Type A AFDD RCBO, a compact and powerful 1 module width solution that combines arc fault detection (AFDD) and residual current protection (RCD). This 16A B curve RCBO is ideal for Wylex NH distribution boards, offering 10kA short-circuit protection, 30mA Type A RCD, and a switched neutral with a 1200mm tail for easy installation. Designed for both residential and commercial applications, the Wylex PXSB16AFD ensures advanced protection against electrical fires and circuit faults. Order now from Electricals Online for fast UK delivery and expert service.

Specification
  • Number of poles (total) 2
  • Number of protected poles 1
  • Rated voltage 240 V
  • Rated current 16A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Rated short-circuit breaking capacity according to IEC 60947-2 10 kA
  • Disconnection characteristic Undelayed
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic B
  • Concurrently switching neutral conductor Yes
  • With interlocking device No
  • Over voltage category 3
  • Pollution degree 2
  • Ambient temperature during operating -25 - 45 °C
  • Width in number of modular spacings 1
  • Built-in depth 70 mm
  • Degree of protection (IP) IP20
  • Connectable conductor cross section solid-core 0.75 - 16 mm²
  • Connectable conductor cross section multi-wired 0.75 - 16 mm²
  • Product Standard/s IEC 61009-1 / IEC 62606
  • Frequency 50 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
  • Amperage 16 A
    Height 90 mm
