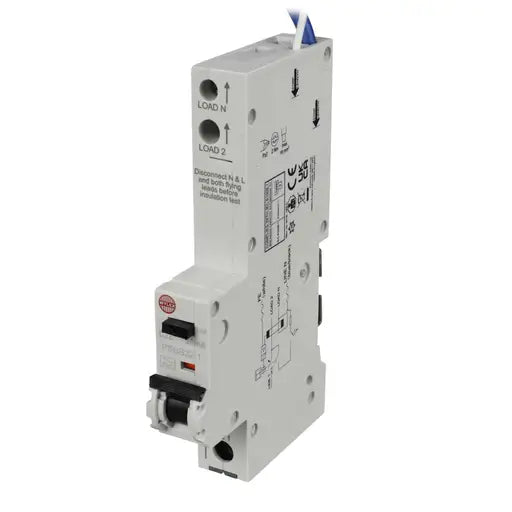

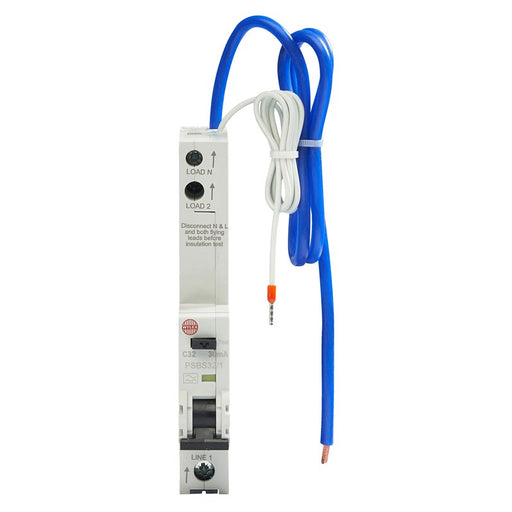

Wylex PSBS32/1 32A C Curve Type A C32 30ma 10ka 1P+N RCBO

Wylex PSBS32/1 32A C Curve Type A C32 30ma 10ka 1P+N RCBO

SKU PSBS32/1
£29.88 - £29.88
£29.88 inc VAT £24.90 exc VAT
£29.88 - £29.88
£29.88 inc VAT £24.90 exc VAT inc VAT £24.90 exc VAT
Availability:
6 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

Single module 10kA Uni-Directional RCBO. 32A C curve (MCB), 30mA Type A (RCD). Neutral & Earth Tail lengths = 600mm. Suitable for use in Wylex NH Distribution Boards.

Specification
  • Number of poles (total) 1
  • Number of protected poles 1
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Rated current 32 A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Rated short-circuit breaking capacity according to EN 61009 10 kA
  • Disconnection characteristic Undelayed
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic C
  • Concurrently switching neutral conductor No
  • With interlocking device No
  • Over voltage category 3
  • Ambient temperature during operating -5 - 45 °C
  • Width in number of modular spacings 1
  • Flush-mounted installation No
  • Anti-nuisance tripping version No
  • Degree of protection (IP) IP20
  • Product Standard/s IEC 61009-1
  • Terminal Capacity L&N 16 mm²
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes

Datasheet
