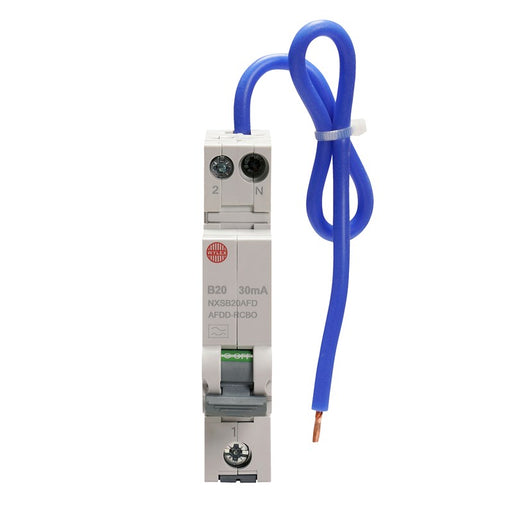

Wylex NXSB20AFD 20A 30MA Single Mod AFDD

Wylex NXSB20AFD 20A 30MA Single Mod AFDD

SKU NXSB20AFD
£92.00 - £92.00
£92.00 inc VAT £76.67 exc VAT
£92.00 - £92.00
£92.00 inc VAT £76.67 exc VAT inc VAT £76.67 exc VAT
Availability:
15 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

 Main Features:

  • Single module, Miniature Bi-Directional AFDD RCBO combine
  • 20A B curve (MCB), 30mA Type A (RCD)
  • Single pole with switched neutral
  • No miss busbar connection
  • Fits NM & NMX consumer units and NH L range
    Distribution Boards
Specification
  • Number of protected poles 1
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Rated current 20 A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Disconnection characteristic Undelayed
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic B
  • Concurrently switching neutral conductor Yes
  • With interlocking device No
  • Over voltage category 3
  • Ambient temperature during operating -5 - 40 °C
  • Width in number of modular spacings 1
  • Built-in depth 73 mm
  • Flush-mounted installation No
  • Anti-nuisance tripping version No
  • Degree of protection (IP) IP20
