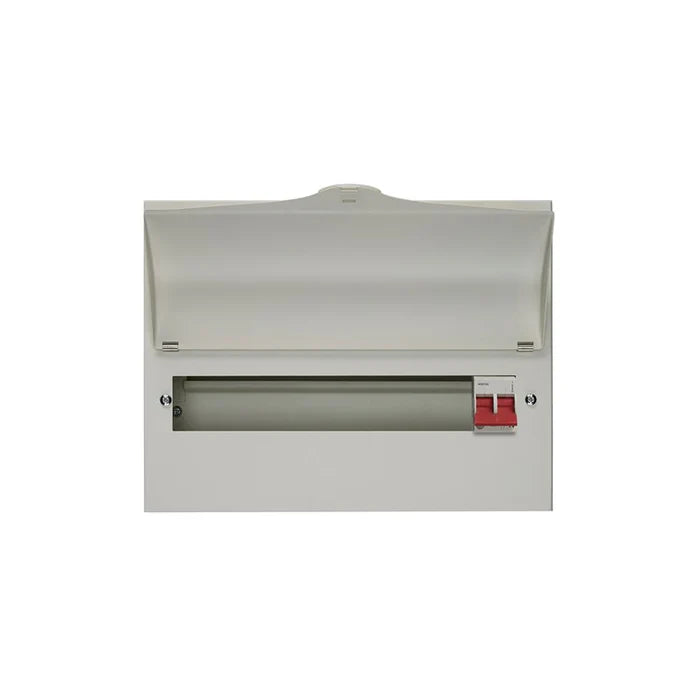

Wylex NM1406L 14 Way Consumer Unit Main Switch 100A

Wylex NM1406L 14 Way Consumer Unit Main Switch 100A

SKU NM1406L
Β£38.10 - Β£38.10
Β£38.10 inc VAT Β£31.75 exc VAT
Β£38.10 - Β£38.10
Β£38.10 inc VAT Β£31.75 exc VAT inc VAT Β£31.75 exc VAT
Availability:
61 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

14W Main switch only consumer unit. Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly. Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs. Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1. Constructed from a full metal enclosure with curved visor and temporary locking facility.

Specification
  • Mounting method Surface mounted (plaster)
  • Number of phases 1
  • Protection Miniature- / earth leakage circuit breaker
  • Total number of groups 1
  • Number of poles main switch 2
  • Main switch rated current 100 A
  • Over voltage protection No
  • Material housing Steel
  • Degree of protection (IP) IP2XC
  • Width in number of modular spacings 16
  • Extension possible No
  • With transparent cover No
  • Lockable Yes
  • Product Standard/s BS EN 61439-3
  • Frequency 50 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
  • Amperage 100 A
  • Operating Voltage 230 V
  • Type of Current AC
  • Consumer Unit Type Main switch only
  • Total final circuit modular ways 14
  • Busbar type Fixed
  • Main switch rating 100 A
  • Main switch final circuit modular ways 14

Datasheet

Product Dimensions
  • Height : 261mm
  • Width : 343mm
  • Depth : 121mm
