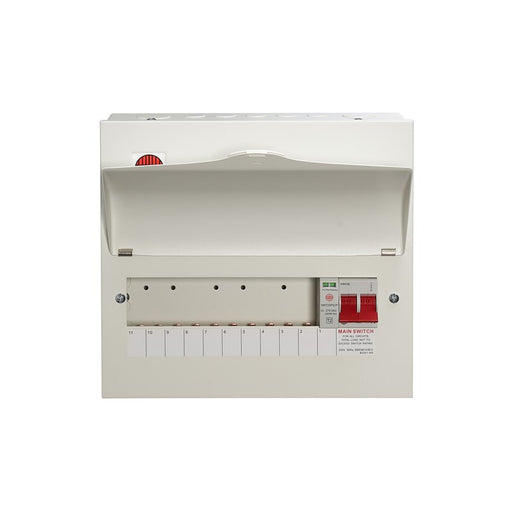

Wylex NM1006LS 10 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD

Wylex NM1006LS 10 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD

SKU NM1006LS
£0
£85.10 - £85.10
£85.10 inc VAT £70.92 exc VAT
£85.10 - £85.10
£85.10 inc VAT £70.92 exc VAT inc VAT £70.92 exc VAT
Availability:
7 in stock, ready to be shipped
 More payment options

Estimated delivery time: Next working day

Description

Ideal for modern residential and light commercial installations, the Wylex NM1006LS consumer unit delivers robust distribution capabilities in a compact, surface-mounted steel enclosure measuring 292 × 261 × 121 mm. It features a 100 A double-pole isolator incomer, a pre-fitted Type 2 surge protection device (SPD) to guard against transient voltage surges, and a fixed busbar assembly accommodating ten outgoing modules

Specification
  • Mounting method Surface mounted (plaster)
  • Number of phases 1
  • Protection Miniature- / earth leakage circuit breaker
  • Total number of groups 1
  • Number of poles main switch 2
  • Main switch rated current 100 A
  • Over voltage protection Yes
  • Material housing Steel
  • Degree of protection (IP) IP2XC
  • Extension possible No
  • With transparent cover No
  • Lockable Yes
  • Product Standard/s BS EN 61439-3
  • Frequency 50 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
  • Amperage 100 A
  • Operating Voltage 230 V
  • Type of Current AC
  • Consumer Unit Type Main switch only
  • Total final circuit modular ways 10
  • Busbar type Fixed
  • Main switch rating 100 A
  • Main switch final circuit modular ways 10
