Description

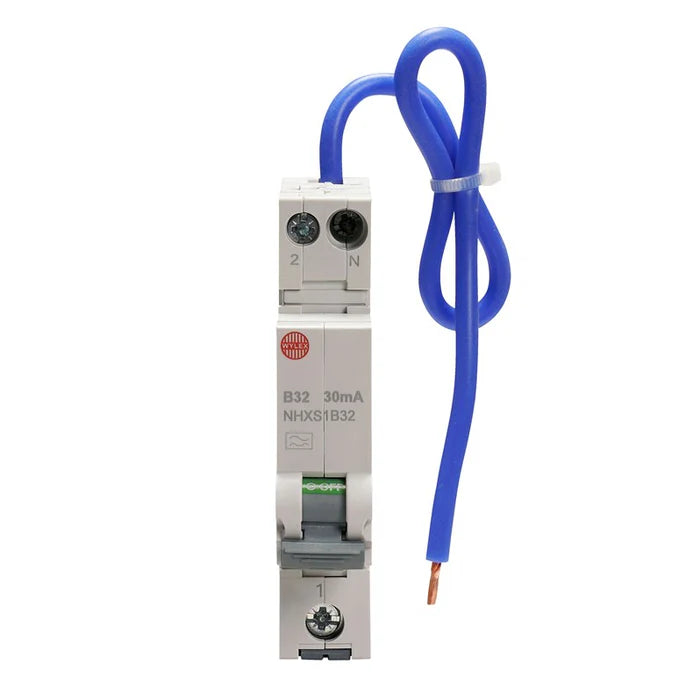

The Wylex NHXS1B32 Miniature Bi-Directional RCBO combines overcurrent and residual-current protection within a compact single-module device. Rated at 32A with a B Curve characteristic, it protects a compatible circuit against overloads and short circuits while its 30mA Type A RCD element monitors for qualifying earth-leakage faults.
Its Type A residual-current classification is designed to detect alternating residual currents and pulsating DC residual currents. This makes the NHXS1B32 suitable for correctly designed modern circuits supplying compatible electrical and electronic equipment. The device has an undelayed operating characteristic and a rated short-circuit breaking capacity of 6kA to IEC 61009-1.
Specification
Rated voltage 230 V
Rated insulation voltage Ui 400 V
Rated impulse withstand voltage Uimp 4 kV
Rated current 32 A
Rated fault current 0.03 A
Leakage current type A
Current limiting class 3
Disconnection characteristic Undelayed
Voltage type AC
Frequency 50 Hz
Release characteristic B
Concurrently switching neutral conductor Yes
With interlocking device No
Over voltage category 3
Ambient temperature during operating -5 - 40 °C
Width in number of modular spacings 1
Built-in depth 73 mm
Flush-mounted installation No
Anti-nuisance tripping version No
Degree of protection (IP) IP20
