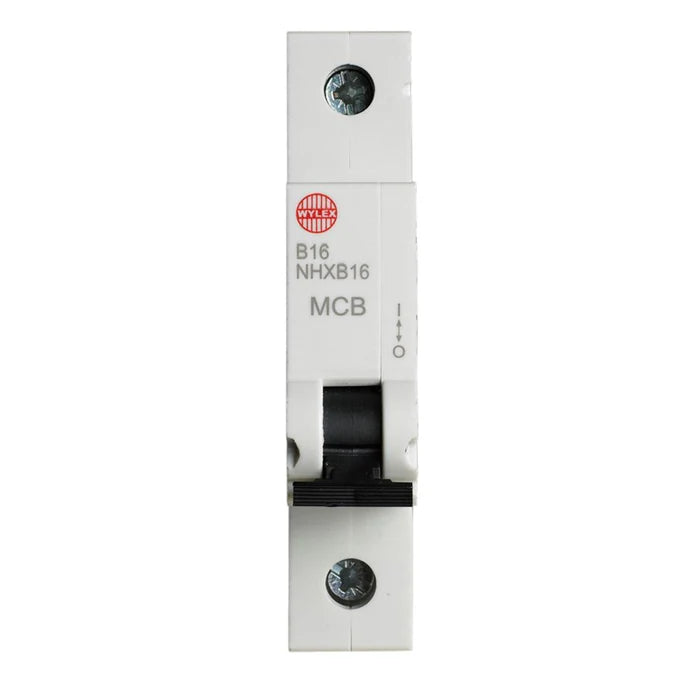

Wylex NHXB16 16A SP Type B 6kA MCB

Wylex NHXB16 16A SP Type B 6kA MCB

SKU NHXB16
£3.36 - £3.36
£3.36 inc VAT £2.80 exc VAT
£3.36 - £3.36
£3.36 inc VAT £2.80 exc VAT inc VAT £2.80 exc VAT
Availability:
160 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The Wylex NHXB16 16A Type B MCB is a single-pole miniature circuit breaker designed to protect compatible electrical circuits against overload and short-circuit fault currents. Its Type B tripping characteristic makes it suitable for circuits with relatively low inrush currents, subject to the electrical design and installation requirements.

Rated at 16A and 230V AC, the NHXB16 provides a 6kA short-circuit breaking capacity and Class 3 current-limiting performance. It occupies one modular space and is designed for installation in compatible Wylex NH, NM and NMX consumer units and distribution equipment.

Specification
  • Release characteristic B
  • Number of poles (total) 1
  • Number of protected poles 1
  • Rated current 16 A
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Voltage type AC
  • Frequency 50 Hz
  • Current limiting class 3
  • Flush-mounted installation No
  • Concurrently switching neutral conductor No
  • Over voltage category 3
  • Additional equipment possible No
  • Width in number of modular spacings 1
  • Built-in depth 73 mm
  • Degree of protection (IP) IP20
  • Product Standard/s BS EN 60898-1
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
