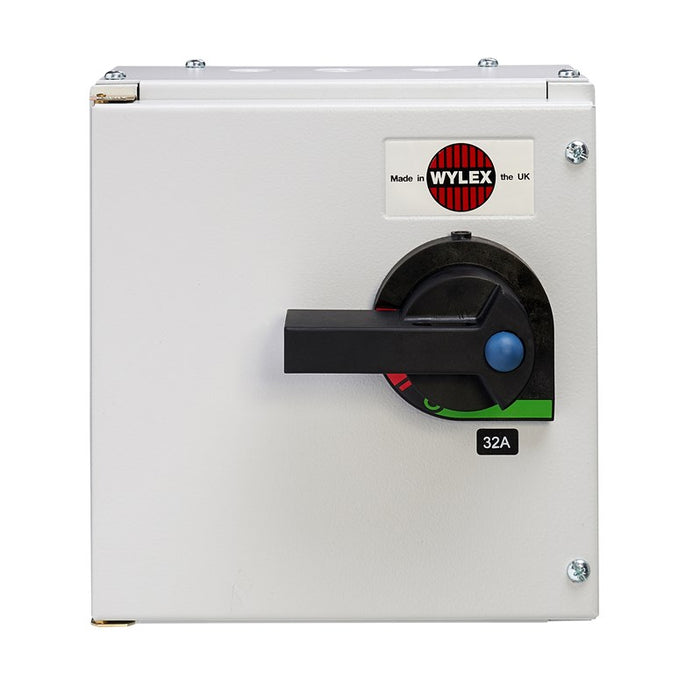

Wylex NHTPSF32 32A 3P+N Fuse Combination Unit c/w Fuses

SKU NHTPSF32
Original price £162.00 - Original price £162.00
Original price
£162.00 inc VAT £135.00 exc VAT
£162.00 - £162.00
Current price £162.00 inc VAT £135.00 exc VAT inc VAT £135.00 exc VAT
Availability:
9 in stock, ready to be shipped

Estimated delivery time: 3-4 working days

Description

The Wylex NHTPSF32 NH 32A 3P+N Fuse Combination Unit is a premium-grade solution for three-phase circuit protection in commercial and industrial settings. Housed in a RAL 7035 painted steel enclosure, this IP40 rated fuse unit includes a 32A fuse (Shape A2/A3) and supports terminal capacity up to 16mm². Designed for safe and secure circuit isolation, it features a padlockable operating handle, a reversible front door with 180° opening, and full compliance with BS EN 60947-3IEC 60947-3, and BS EN 61439-3 standards. With a rated operational power of 11kW at 400V, the Wylex NHTPSF32 is ideal for electricians and contractors seeking reliable NH series 3P+N fuse combination units.

Specification
  • Version as main switch Yes
  • Version as safety switch No
  • Max. rated operation voltage Ue AC 415 V
  • Rated permanent current Iu 32 A
  • Rated operation power at AC-23, 400 V 11 kW
  • Conditioned rated short-circuit current Iq 50 kA
  • Rated short-time withstand current lcw 1.26 kA
  • Suitable for fuses Shape A2/A3
  • Number of poles 3
  • With error protection No
  • Type of electrical connection of main circuit Cable clamp
  • Equipped with connectors Yes
  • Suitable for floor mounting No
  • Suitable for front mounting No
  • Suitable for busbar mounting No
  • Type of control element Door coupling rotary drive
  • Position control element Front side
  • Motor drive optional No
  • Motor drive integrated No
  • Version as emergency stop installation No
  • Degree of protection (IP), front side IP40
  • Product Standard/s BSEN60947-3, IEC60947-3,
  • BSEN61439-3
  • Terminal Capacity L&N 16 mm²
  • Frequency 50 - 60 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
