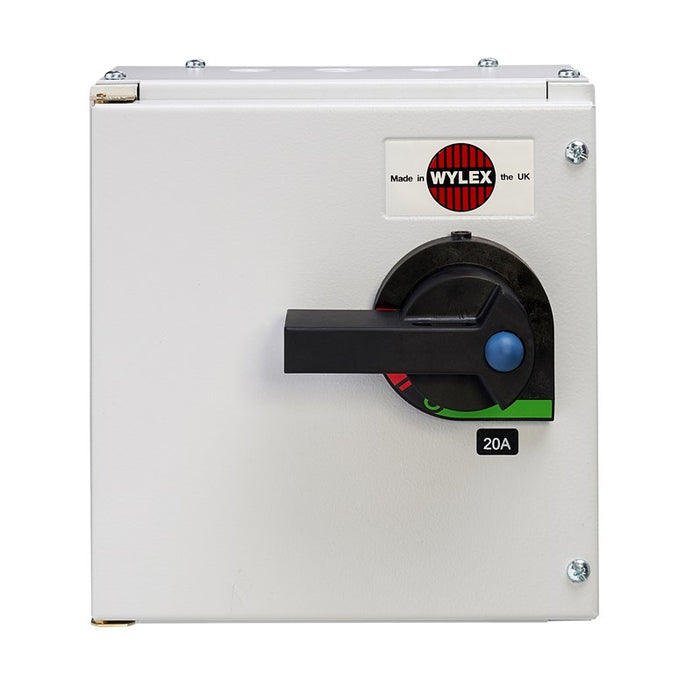

Wylex NHTPSF20 20A 3P+N Fuse Combination Unit c/w Fuses

Wylex NHTPSF20 20A 3P+N Fuse Combination Unit c/w Fuses

SKU NHTPSF20
£111.00 - £111.00
£111.00 inc VAT £92.50 exc VAT
£111.00 - £111.00
£111.00 inc VAT £92.50 exc VAT inc VAT £92.50 exc VAT
Availability:
9 in stock, ready to be shipped

Estimated delivery time: 3-4 working days

Description

The Wylex NHSPSF20 NH 20A 1P+N Fuse Combination Unit is a robust and reliable solution for circuit protection in residential, commercial, and industrial environments. Featuring a steel enclosure painted RAL 7035, this IP40 rated fuse unit includes a 20A fuse (Shape A2/A3) and supports terminal capacity up to 16mm². Designed for safe circuit isolation, the unit offers a padlockable operating handle, a reversible front door opening to 180 degrees, and complies with BS EN 60947-3, IEC 60947-3, and BS EN 61439-3 standards. Ideal for electricians and contractors seeking NH series fuse combination units, the Wylex NHSPSF20 delivers 7.5kW rated power at 400V, ensuring dependable performance and safety.

Specification
  • Version as main switch Yes
  • Version as safety switch No
  • Max. rated operation voltage Ue AC 415 VRated
  • permanent current Iu 20 A
  • Rated operation power at AC-23, 400 V 7.5 kW
  • Conditioned rated short-circuit current Iq 50 kA
  • Rated short-time withstand current lcw 1.26 kA
  • Suitable for fuses Shape A2/A3
  • Number of poles 3
  • With error protection No
  • Type of electrical connection of main circuit Clamp bracket
  • Equipped with connectors Yes
  • Suitable for floor mounting No
  • Suitable for front mounting No
  • Suitable for busbar mounting No
  • Type of control element Door coupling rotary drive
  • Position control element Front side
  • Motor drive optional No
  • Motor drive integrated No
  • Version as emergency stop installation No
  • Degree of protection (IP), front side IP40
  • Product Standard/s BSEN60947-3, IEC60947-3,
  • BSEN61439-3
  • Terminal Capacity L&N 16 mm²
  • Frequency 50 - 60 Hz
    CE Conformity Yes
    WEEE Symbol Yes
    UKCA Conformity Yes
