Wylex NHTPSF160 160A 3P+N Fuse Combination Unit

Name: Wylex NHTPSF160 160A 3P+N Fuse Combination Unit
Brand: Wylex
SKU: NHTPSF160
Price: 408.0 GBP
Availability: InStock

SKU NHTPSF160

£408.00 - £408.00

£408.00 inc VAT £340.00 exc VAT

£408.00 - £408.00

£408.00 inc VAT £340.00 exc VAT inc VAT £340.00 exc VAT

Availability:

8 in stock, ready to be shipped

Quantity

Estimated delivery time: 3-4 working days

Description

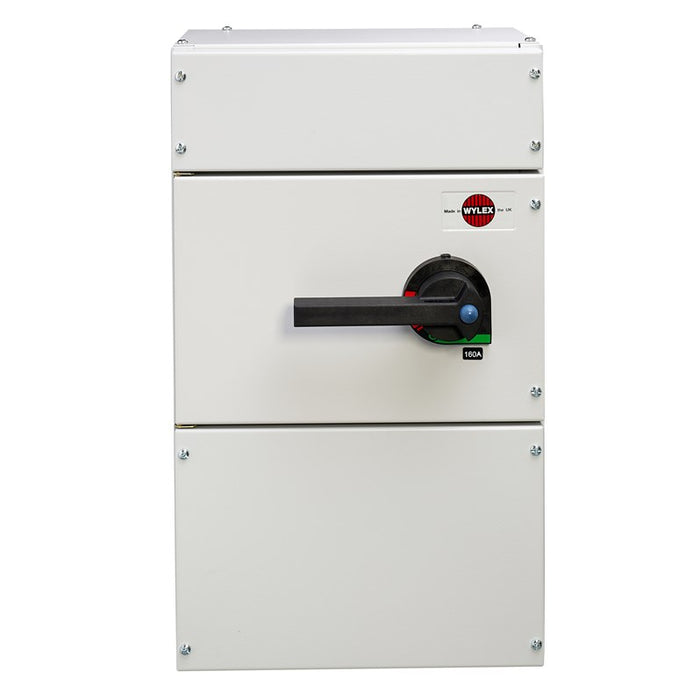

The Wylex NHTPSF160 NH 160A 3P+N Fuse Combination Unit is a heavy-duty solution for three-phase circuit protection in industrial and commercial environments. Housed in a RAL 7035 painted steel enclosure, this IP40 rated fuse unit is supplied without fuses and is compatible with Shape A4 fuses. It supports cable spreading room up to 150mm² (4-core), with spreading room allowed at one end only—an additional NHCSB3 cable spreader is required for both ends. The unit features a padlockable operating handle, a reversible front door with 180° opening, and complies with BS EN 60947-3, IEC 60947-3, and BS EN 61439-8 standards. With a rated operational power of 55kW at 415V, the Wylex NHTPSF160 is ideal for professionals seeking high-capacity NH series 3P+N fuse combination units.

Specification

Version as main switch Yes
Version as safety switch No
Max. rated operation voltage Ue AC 415 V
Rated permanent current Iu 160 A
Suitable for fuses Shape A4
Number of poles 3
With error protection No
Type of electrical connection of main circuit Bolt connection
Equipped with connectors Yes
Suitable for floor mounting No
Suitable for front mounting No
Suitable for busbar mounting No
Type of control element Door coupling rotary drive
Position control element Front side
Motor drive optional No
Motor drive integrated No
Version as emergency stop installation No
Degree of protection (IP), front side IP40
Product Standard/s BSEN60947-3, IEC60947-3,
BSEN61439-2
Terminal Capacity L&N 150 mm²
Frequency 50 - 60 Hz
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
