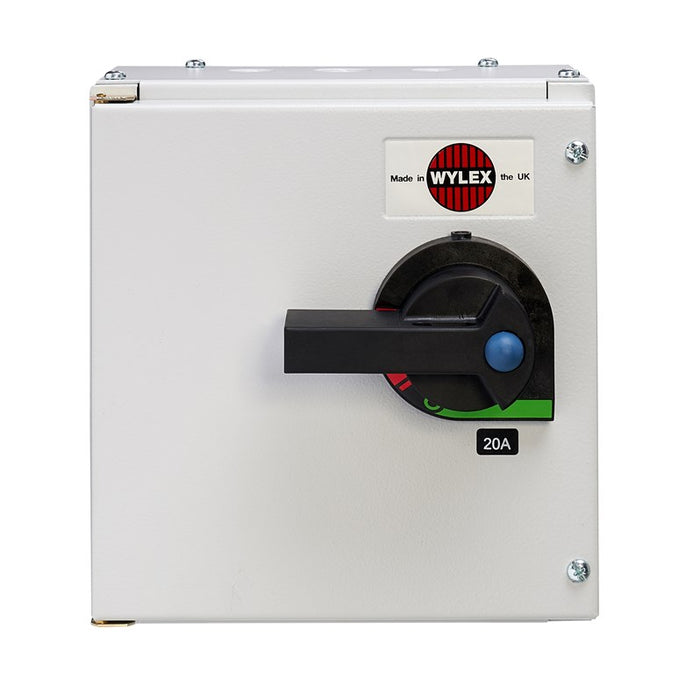

Wylex NHSPSF20 NH 20A 1P-N Fuse Combination Unit with Fuse

SKU NHSPSF20
Original price £110.00 - Original price £110.00
Original price
£110.00 inc VAT £91.67 exc VAT
£110.00 - £110.00
Current price £110.00 inc VAT £91.67 exc VAT inc VAT £91.67 exc VAT
Availability:
9 in stock, ready to be shipped

Estimated delivery time: 3-4 working days

Description

Supplied with 20A BS88 fuses. IP4X rated steel enclosure 220mmH x 210mmW x 135mmD. Front door reversible, opening to 180°. Operating handle can be padlocked.. Accommodates cable spreading room up to 10mm² 4 core. Spreading room is allowed for at one end only. RAL7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 60947-3.

Specification
  • Version as main switch Yes
  • Version as safety switch No
  • Max. rated operation voltage Ue AC 230 V
  • Rated permanent current Iu 20 A
  • Rated operation power at AC-23, 400 V 7.5 kW
  • Conditioned rated short-circuit current Iq 50 kA
  • Rated short-time withstand current lcw 1.26 kA
  • Suitable for fuses Shape A2/A3
  • Number of poles 1
  • With error protection No
  • Type of electrical connection of main circuit Clamp bracket
  • Equipped with connectors Yes
  • Suitable for floor mounting No
  • Suitable for front mounting No
  • Suitable for busbar mounting No
  • Type of control element Door coupling rotary drive
  • Position control element Front side
  • Motor drive optional No
  • Motor drive integrated No
  • Version as emergency stop installation No
  • Degree of protection (IP), front side IP40
  • Product Standard/s BSEN60947-3, IEC60947-3,
  • BSEN61439-3
  • Terminal Capacity L&N 16 mm²
  • Frequency 50 - 60 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
