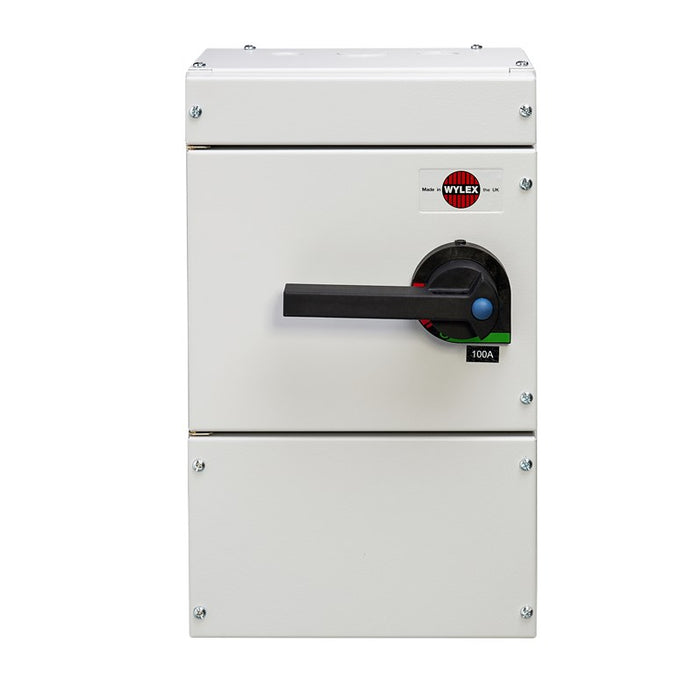

Wylex NHSPSF100 100A 1P+N Fuse Combination Unit c/w Fuses

Wylex NHSPSF100 100A 1P+N Fuse Combination Unit c/w Fuses

SKU NHSPSF100
£260.00 - £260.00
£260.00 inc VAT £216.67 exc VAT
£260.00 - £260.00
£260.00 inc VAT £216.67 exc VAT inc VAT £216.67 exc VAT
Availability:
8 in stock, ready to be shipped

Estimated delivery time: 3-4 working days

Description

The Wylex NHSPSF100 NH 100A 1P+N Fuse Combination Unit is a high-capacity solution for circuit protection in demanding commercial and industrial environments. Housed in a RAL 7035 painted steel enclosure, this IP40 rated fuse unit includes a 100A fuse (Shape A4) and supports cable spreading room up to 70mm². Designed for safe circuit isolation, it features a padlockable operating handle, a reversible front door with 180° opening, and full compliance with BS EN 60947-3, IEC 60947-3, and BS EN 61439-3 standards. With a rated operational power of 37kW at 400V, the Wylex NHSPSF100 is ideal for electricians and contractors seeking robust NH series fuse combination units.

Specification
  • Version as main switch Yes
  • Version as safety switch No
  • Max. rated operation voltage Ue AC 230 V
  • Rated permanent current Iu 100 A
  • Rated operation power at AC-23, 400 V 37 kW
  • Conditioned rated short-circuit current Iq 20 kA
  • Rated short-time withstand current lcw 1.5 kA
  • Suitable for fuses Shape A4
  • Number of poles 1
  • With error protection No
  • Type of electrical connection of main circuit Bolt connection
  • Equipped with connectors Yes
  • Suitable for floor mounting No
  • Suitable for front mounting No
  • Suitable for busbar mounting No
  • Type of control element Door coupling rotary drive
  • Position control element Front side
  • Motor drive optional No
  • Motor drive integrated No
  • Version as emergency stop installation No
  • Degree of protection (IP), front side IP40
  • Product Standard/s BSEN60947-3, IEC60947-3, BSEN61439-3
  • Terminal Capacity L&N 70 mm²
  • Frequency 50 - 60 Hz
  • CE Conformity Yes
  • WEEE Symbol Yes
    UKCA Conformity Yes
