Wylex DSF60M 100A DP Domestic Switch Fuse

Wylex DSF60M 100A DP Domestic Switch Fuse

SKU DSF60M
£70.75 - £70.75
£70.75 inc VAT £58.96 exc VAT
£70.75 - £70.75
£70.75 inc VAT £58.96 exc VAT inc VAT £58.96 exc VAT
Availability:
Only 1 left!

Estimated delivery time: Next working day

Description

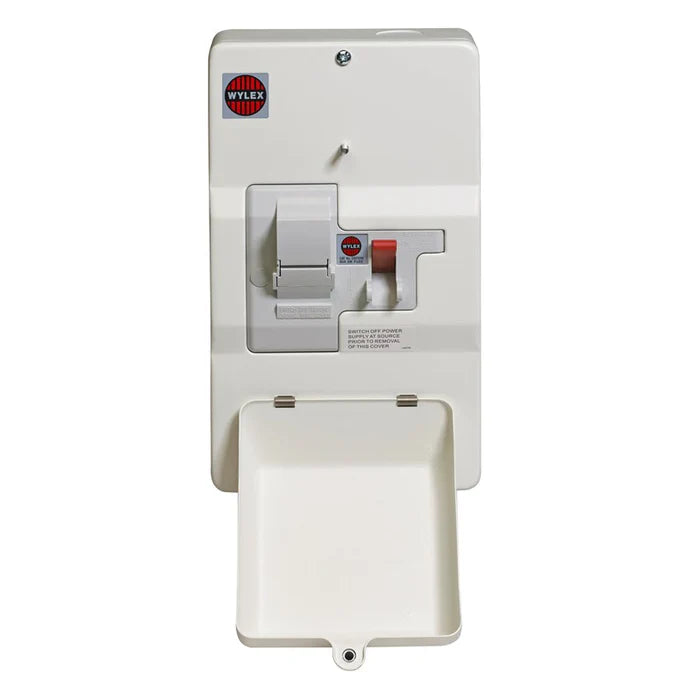

Wylex DSF60M 100A DP is a metal enclosed, domestic switch fuse with a 60A fuse fitted Suitable for use in domestic household premises, the switch fuse unit has an easy to open rotary fuse drawer and a 16mm Earth terminating point inside the enclosure. The unit is also lockable for safe isolation.

Specification
  • Version as main switch No
  • Version as maintenance-/service switch Yes
  • Max. rated operation voltage Ue AC 400 V
  • Rated operating voltage 230-400 V
  • Rated permanent current Iu 100 A
  • Conditioned rated short-circuit current Iq 16 kA
  • Number of poles 2
  • Motor drive optional No
  • Voltage release optional No
  • Suitable for distribution board installation No
  • Type of control element Toggle
  • Interlockable No
  • Type of electrical connection of main circuit Screw connection
  • Degree of protection (IP), front side IP20
  • Product Standard/s BS EN 60947-3
  • Terminal Capacity L&N 35 mm²
  • Terminal Capacity E 16 mm²
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes

Datasheet

Product Dimensions

  • Height 302 mm
  • Width 178 mm
  • Depth 111 mm
