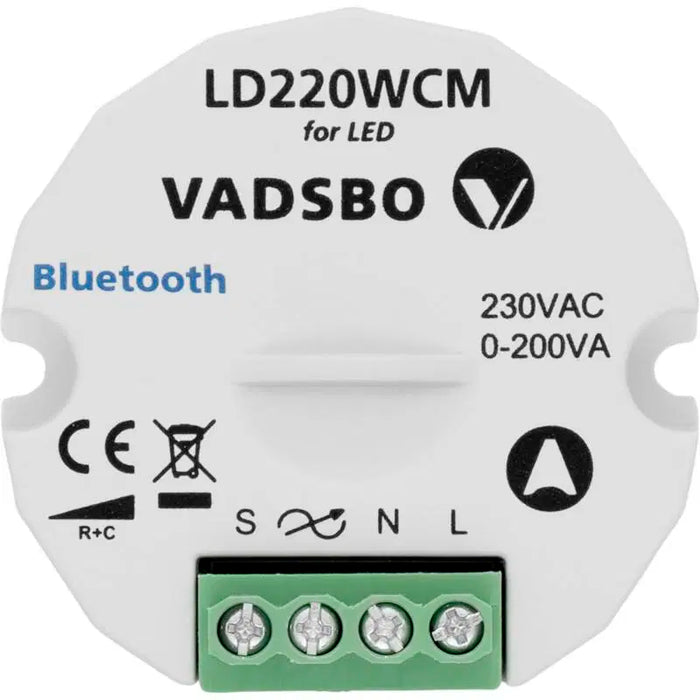

Vadsbo LD220WCM Casambi 200VA Wireless Trailing Edge LED Dimmer Module

Vadsbo LD220WCM Casambi Wireless Trailing Edge Dimmer 200VA

The Vadsbo LD220WCM is a compact, Casambi enabled wireless trailing edge dimmer designed to provide intelligent control of compatible LED and conventional lighting. With a maximum rated load of 200VA, it enables users to switch and dim lighting through the Casambi app or a connected retractive push button.

Ideal for residential, commercial and hospitality lighting installations, the LD220WCM combines wireless connectivity with flexible local control in a compact module that can be installed in a suitable wall back box or luminaire.

Wireless Casambi Lighting Control

The LD220WCM integrates with the Casambi wireless lighting control system, allowing compatible lighting to be controlled from a smartphone or tablet using the Casambi app. Users can adjust brightness, switch lighting on and off, and incorporate the dimmer into lighting groups and scenes.

The built in astronomical clock function allows lighting schedules to follow local sunrise and sunset times. Once configured, schedules are stored within the dimmer, allowing programmed operation without continuous control from the app.

Trailing Edge Dimming for Compatible Lighting

Using trailing edge phase control, the Vadsbo LD220WCM is suitable for compatible dimmable 230V LED lamps, LED drivers, electronic transformers, incandescent lamps and 230V halogen lighting.

The dimmer supports a load range of approximately 1–200VA, with the permitted load depending on the connected equipment. Its soft start function helps provide a smoother start when switching on lighting, while the memory function retains the last brightness setting after a power interruption.

Push Button Control and Compact Installation

Alongside wireless control, the LD220WCM supports one or more normally open retractive push buttons connected in parallel. A short press switches the lighting on or off, while a long press adjusts the brightness.

Its compact design makes it suitable for installation in a compatible wall back box or inside a luminaire. The unit features overheating protection that automatically resets after the fault has been resolved.

Key Features

• Manufacturer: Vadsbo

• Product code: LD220WCM

• Manufacturer part number: V-4022010WCM

• Casambi wireless lighting control

• Bluetooth based control through the Casambi app

• Trailing edge dimming technology

• Rated load: approximately 1–200VA

• Supply voltage: 220–240V AC

• Supply frequency: 50/60Hz

• Maximum current: 0.87A

• Dimming range: 1–100%

• Compatible with suitable dimmable LED lamps and drivers

• Suitable for compatible electronic transformers, incandescent lamps and 230V halogen lamps

• Retractive push button control

• Soft start function

• Remembers the last brightness setting after a power interruption

• Overheating protection with automatic recovery

• Standby power consumption: less than 0.2W

• Ingress protection: IP20

• Electrical protection class: Class II

• Dimensions: approximately 52mm diameter × 19mm deep

• White housing

Suitable Applications

The Vadsbo LD220WCM is suitable for smart lighting installations in homes, offices, retail premises and hospitality environments where wireless dimming and flexible lighting control are required.

Choose the Vadsbo LD220WCM for compact Casambi integration, convenient app based dimming and retractive push button control of compatible lighting.

Installation note: The connected lamps and drivers must be suitable for trailing edge dimming. Check the manufacturer's load ratings and account for reactive power when calculating the total connected load. Installation should be carried out by a suitably qualified electrician.
