Timeguard TT1002 HobGuard 40A Hob Safety Timer
Add an extra layer of control to a compatible electric hob with the Timeguard TT1002 HobGuard 2 Gang 40A Timer Switch.
The HobGuard is designed to help prevent a hob from remaining powered indefinitely when a user forgets to switch it off or becomes distracted. Once activated, the unit counts down for a preset period before automatically disconnecting the hob supply.
Six maximum operating periods are available:
- 15 minutes
- 20 minutes
- 30 minutes
- 45 minutes
- 60 minutes
- 120 minutes
The cut-off duration is selected using controls on the rear of the unit. Because the timer must be removed from the wall box before this setting can be changed, the chosen period cannot easily be altered by the everyday user. This makes the TT1002 particularly useful in rented properties, supported-living environments and installations where a consistent maximum operating time is required.

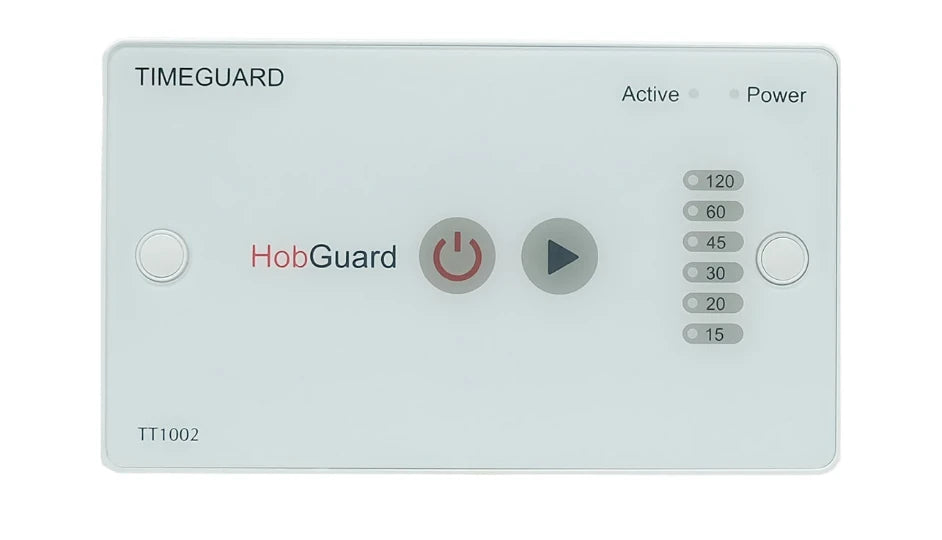

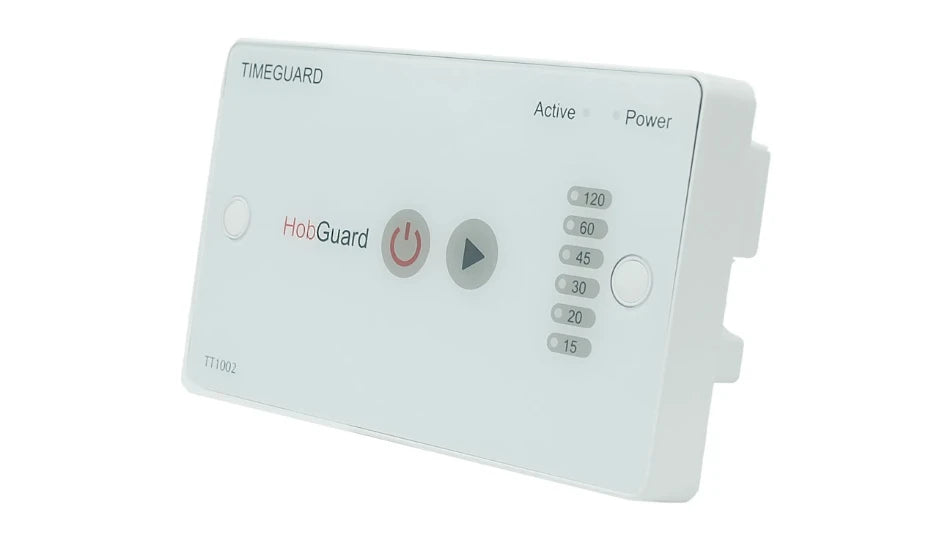

The smooth glass front plate features simple touchscreen operation, with countdown and power indicators providing a clear view of the unit’s status.

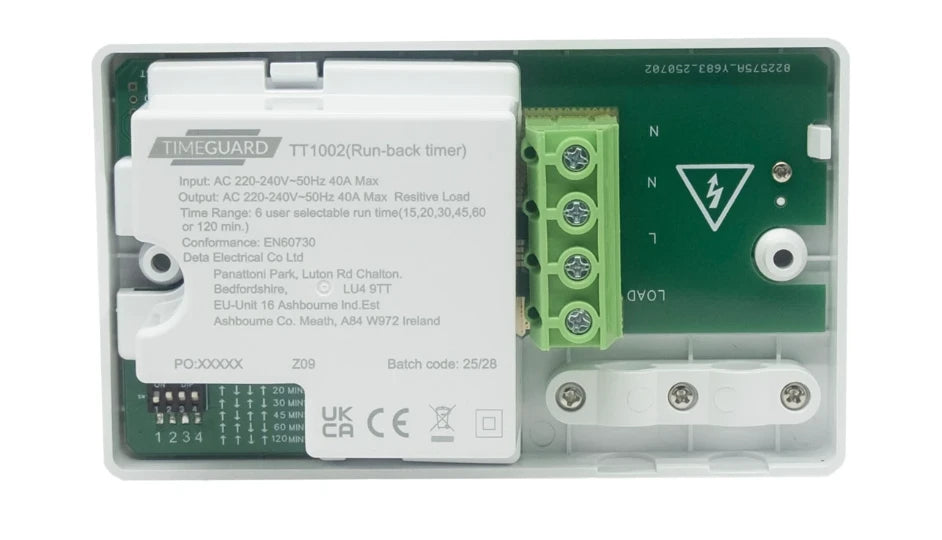

A rear DIP switch allows the installer to select either switched mode or fixed mode, depending on the required operating arrangement. The TT1002 has a maximum switching capacity of 40A and is intended for compatible electric cooking appliances within its published electrical ratings.
The unit fits a standard two-gang wall-box format and requires a sufficiently deep back box to accommodate the device and its high-current wiring. The manufacturer’s technical specification states a minimum back-box depth of 47mm.
Key Features
- Timeguard HobGuard electric-hob safety timer
- Manufacturer product code: TT1002
- Maximum 40A switching capacity
- Automatically disconnects the hob after a preset period
- Six selectable cut-off periods
- 15, 20, 30, 45, 60 or 120-minute settings
- Tamper-resistant timer selection
- Timer setting accessible only after removing the unit
- Smooth glass touchscreen front plate
- Countdown and power LED indicators
- Fixed or switched operating modes
- Rear DIP-switch mode selection
- Resilient, heat-resistant construction
- Standard two-gang plate format
- Suitable for compatible 220–240V AC electric hobs
- Three-year manufacturer guarantee
Technical Specifications
Brand: Timeguard
Range: HobGuard
Product code: TT1002
Product type: Hob timer and safety switch
Plate size: 2 gang
Maximum rated current: 40A
Input voltage: 220–240V AC
Supply frequency: 50–60Hz
Preset cut-off periods: 15, 20, 30, 45, 60 or 120 minutes
Operating modes: Fixed or switched
User control: Glass touchscreen
Indicators: Power and countdown LEDs
Mounting method: Flush mounted
Minimum back-box depth: 47mm
Terminal capacity: Approximately 0.6mm² to 13.5mm²
Connections: Supply live, supply neutral, load live and load neutral
IP rating: IP20
Impact rating: IK03
Construction: Heat-resistant PC and ABS
Insulation: Class II
Compliance: EN 60730
Colour: White
Approximate height: 145mm
Approximate width: 85mm
Approximate device depth: 39mm
Manufacturer guarantee: 3 years
