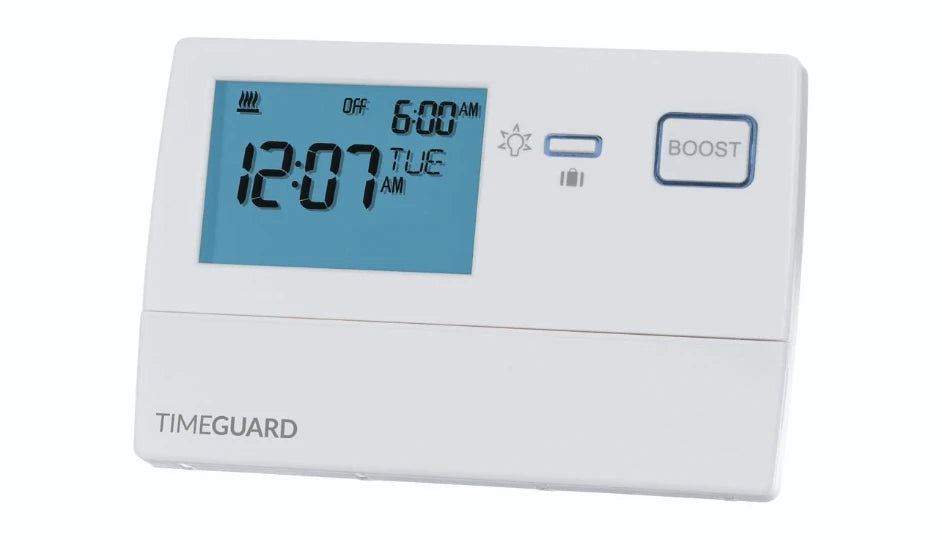

Timeguard TRT034N 7 Day Single-Channel Digital Programmer
Manage your heating schedule with the Timeguard TRT034N 7 Day Digital Programmer.
Designed for use with a compatible room thermostat and heating system, this single-channel programmer automatically switches the connected equipment according to the times selected by the user.
The TRT034N supports either 5/2-day programming—with one schedule for weekdays and another for the weekend—or fully independent seven-day programming. Up to three ON and three OFF periods can be entered for each day, allowing the heating schedule to be adapted around work, sleep and occupancy patterns.
A programme-copy function makes it easier to duplicate a schedule from one day to another, reducing the need to enter the same settings repeatedly. Its shortest switching interval is one minute, supporting precise schedule adjustment.
For temporary changes, the programmer includes a one-, two- or three-hour boost function. This turns the controlled system on for the selected period without permanently changing the programmed schedule.
Holiday mode can suspend normal operation for a chosen period, while the permanent ON and OFF override modes provide straightforward manual control when the regular programme is not required.

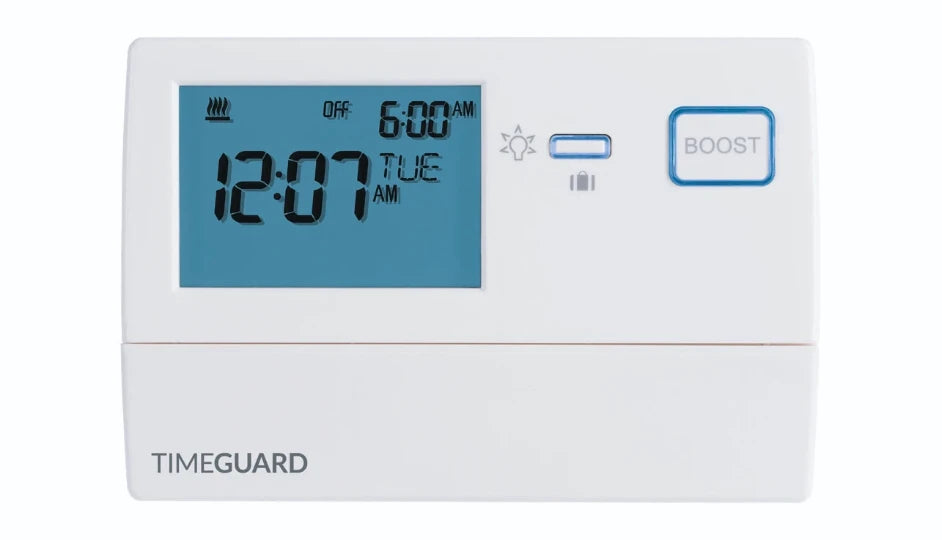

The blue illuminated digital screen displays the current settings clearly during adjustment. Automatic summer and winter clock changeover also reduces the need to alter the time manually when the clocks change.
A factory-fitted rechargeable backup battery helps retain the clock and programmed settings during a temporary mains failure.
Key Features
- Timeguard single-channel digital programmer
- Product code: TRT034N
- Suitable for use with a compatible room thermostat
- 5/2-day or individual seven-day programming
- Up to three ON and three OFF periods per day
- One-minute minimum switching interval
- Programme-copy function
- Holiday mode
- One-, two- or three-hour boost function
- Permanent ON and OFF override modes
- Automatic summer and winter clock changeover
- Blue illuminated digital display
- Factory-fitted rechargeable backup battery
- Changeover switching contacts
- Surface-mounted design
- Three-year manufacturer guarantee
Technical Specifications
Brand: Timeguard
Range: Programastat Plus
Product code: TRT034N
Product type: Digital heating programmer
Number of channels: 1
Programming options: 24-hour, 5/2-day or individual 7-day
Daily switching periods: Up to 3 ON and 3 OFF
Shortest switching interval: 1 minute
Boost periods: 1, 2 or 3 hours
Additional modes: Holiday, permanently ON and permanently OFF
Switch type: Single-pole changeover / SPDT
Rated supply: 230V AC
Frequency: 50Hz
Switch rating: 3A resistive or 1A inductive
Connection: 3 wire
Backup battery: Factory-fitted rechargeable battery
Published power reserve: Up to 7 days
Installation type: Surface mounted
Protection class: Class II
Operating temperature: 0°C to 40°C
Material: Polycarbonate
Colour: White

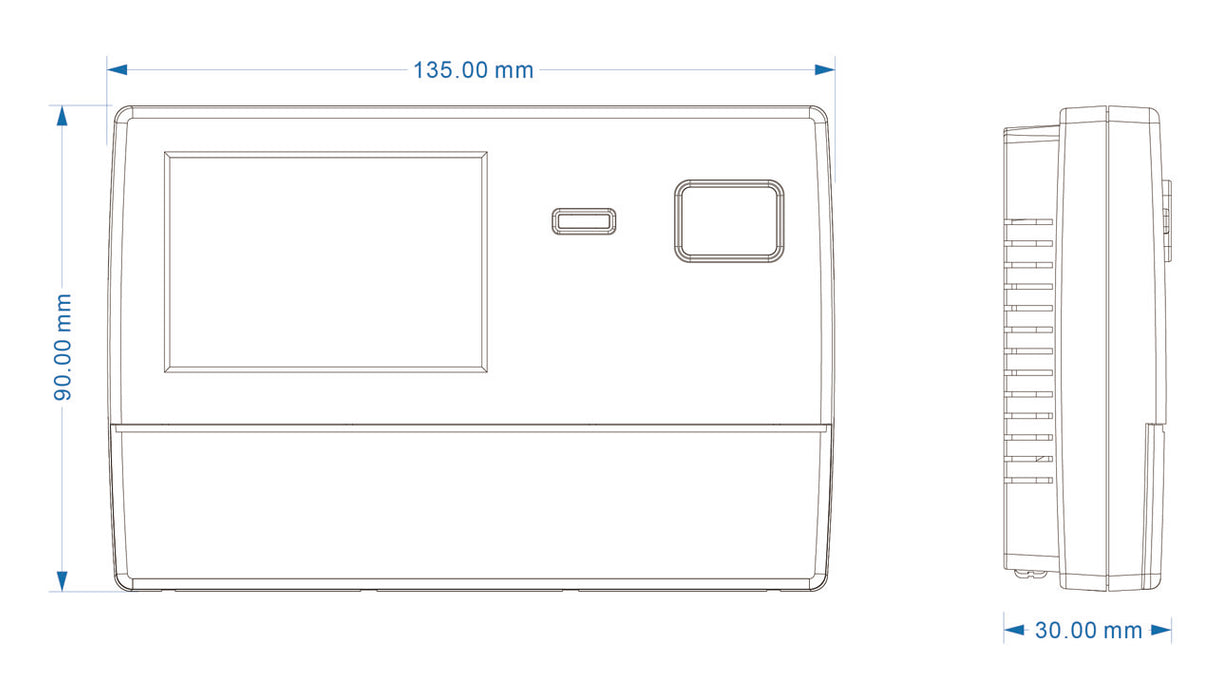

Approximate height: 90mm
Approximate width: 135mm
Approximate depth: 30mm
Approximate weight: 194g
Cable entry: Rear
Guarantee: 3 years
