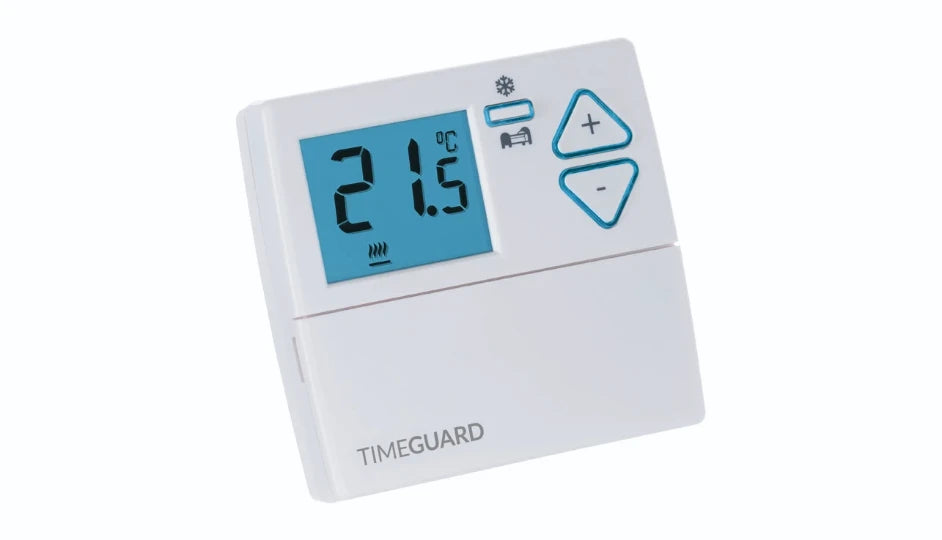

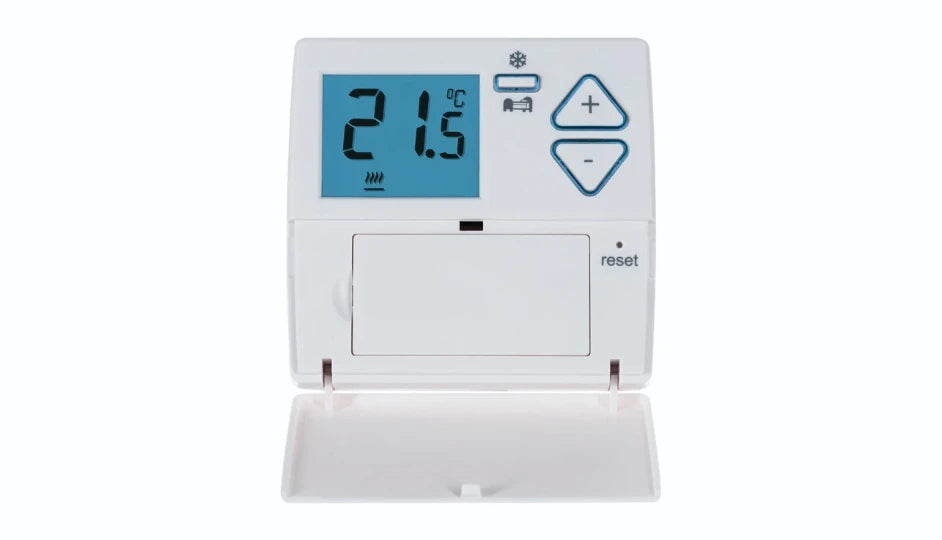

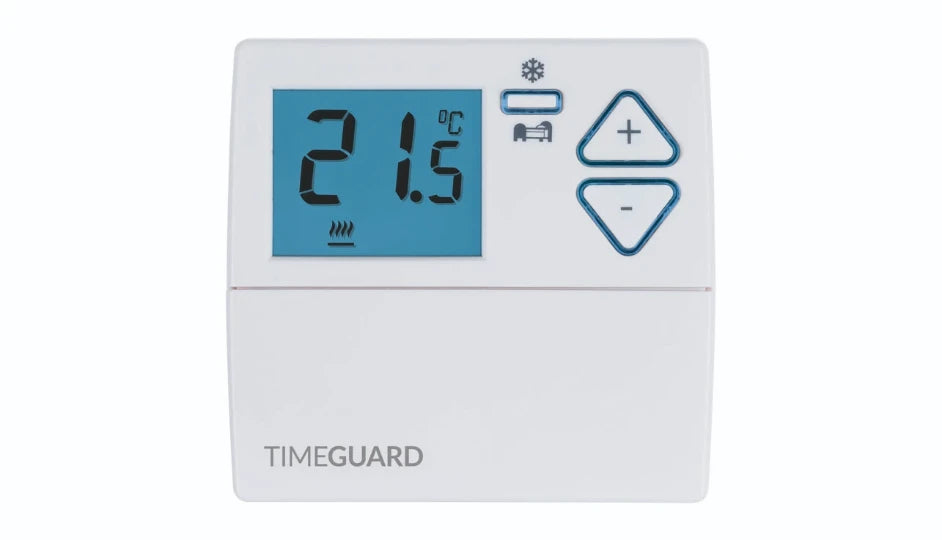

Timeguard TRT033N Digital Room Thermostat with Night Set-Back

Timeguard TRT033N Digital Room Thermostat with Night Setback

Control your heating simply and accurately with the Timeguard TRT033N Digital Room Thermostat.

Designed for straightforward everyday operation, this surface-mounted thermostat has an easy-to-read digital room-temperature display and illuminated plus and minus buttons. The required temperature can be adjusted between 10°C and 30°C, making it suitable for managing comfort levels across a wide range of domestic heating applications.

The built-in night setback function temporarily reduces the selected temperature by 4°C. It can be set for a period of between one and nine hours, helping reduce unnecessary heating overnight without requiring the main thermostat setting to be changed.

A dedicated frost-protection mode helps protect the property and heating system during colder conditions. The display also shows a heating symbol when the thermostat is calling for heat, providing a clear visual indication of its operating status.

The TRT033N uses PID temperature control and offers an adjustable temperature swing of either 0.5°C or 1°C through its internal DIP-switch settings. This allows the installer to configure the thermostat to suit the heating system.

Its voltage-free changeover contacts support connection to a range of compatible heating or cooling equipment. The thermostat display and controls are powered by two AA batteries.

Key Features

• Digital room thermostat for compatible heating systems
• Product code: TRT033N
• Clear digital room-temperature display
• Display illuminates when settings are adjusted
• Easy illuminated plus and minus controls
• Adjustable temperature range from 10°C to 30°C
• Night setback reduces the set temperature by 4°C
• Night setback duration adjustable from one to nine hours
• Dedicated frost-protection setting
• Heating-demand symbol on the display
• PID temperature control
• Adjustable 0.5°C or 1°C temperature swing
• Voltage-free changeover contacts
• Suitable for compatible heating and cooling systems
• Battery-powered display and controls
• Surface-mounted installation
• Three-year manufacturer guarantee

Technical Specifications

Brand: Timeguard
Product code: TRT033N
Product type: Digital room thermostat
Control type: On/off
Temperature setting range: 10°C to 30°C
Measurement range: 5°C to 30°C
Temperature adjustment: Push buttons
Temperature swing: 0.5°C or 1°C, selectable by DIP switch
Control system: PID
Night setback: 4°C reduction
Night setback duration: One to nine hours
Contact type: Voltage-free changeover contact, normally open or normally closed
Maximum contact load: 3A
Maximum contact voltage: 230V
Connection: Two-wire
Power supply: Two AA batteries
Display: Digital, illuminated during adjustment
IP rating: IP20
Mounting method: Surface mounted
Colour: White
Approximate height: 90mm
Approximate width: 95mm
Approximate depth: 30mm
Guarantee: Three years

Product Data Sheet (PDF) - DS 1050 V1.0 - TRT033N.pdf

What is the Timeguard TRT033N?

The TRT033N is a digital room thermostat designed to switch compatible heating or cooling equipment on and off according to the selected room temperature.

Is the TRT033N a programmable thermostat?

It is not a full seven-day heating programmer. It allows the user to select a temperature and includes a temporary night setback function, but it does not provide a complete daily or weekly heating schedule.

A separate heating programmer may be required to control the times at which the heating system operates.

What does the night setback function do?

Night setback temporarily reduces the selected room temperature by 4°C. The reduction can be applied for between one and nine hours.

For example, when the normal setting is 20°C, activating night setback changes the target to approximately 16°C for the selected period.

Does the night setback operate automatically every night?

The night setback function is manually activated. It includes a recall function so the thermostat can repeat the selected setback duration at the corresponding time on subsequent days, subject to the product settings and instructions.

What temperature range can I select?

The thermostat can be set between 10°C and 30°C.

Does the thermostat display the current room temperature?

Yes. Its digital screen displays the measured room temperature. The display illuminates when the controls are being adjusted.

What does the heating symbol mean?

The heating or burner symbol appears when the thermostat is requesting heat from the connected heating system.
