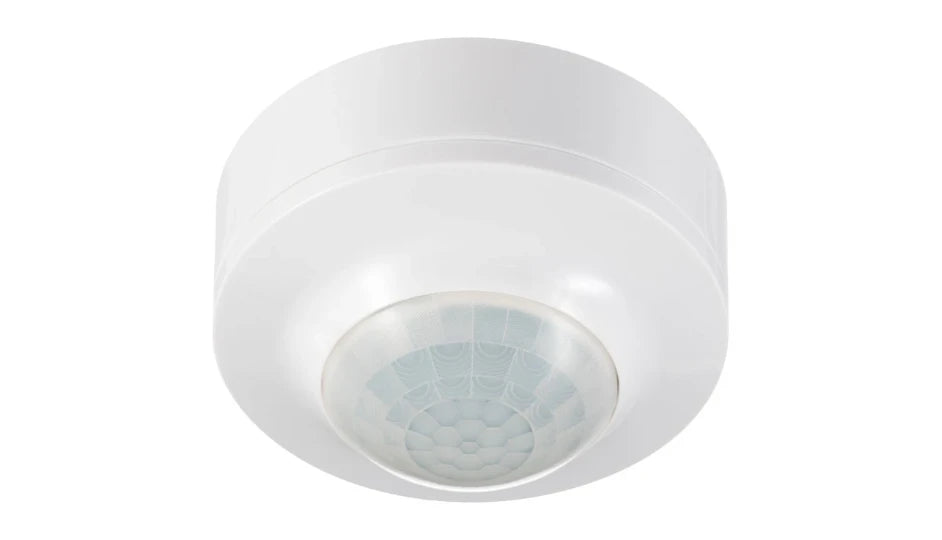

The Timeguard STW360 Suretime Surface Mount 360° PIR is a practical indoor motion sensor for automatic lighting control. It is designed to switch lights on when movement is detected, helping make everyday areas safer, more convenient and more energy efficient.
This ceiling-mounted PIR sensor is ideal for areas where lights are often left on, such as hallways, landings, toilets, cupboards, corridors, utility rooms, storerooms, garages, offices and communal indoor spaces. Once installed, the sensor detects movement and switches the connected lighting on automatically, then turns it off again after the selected time delay.

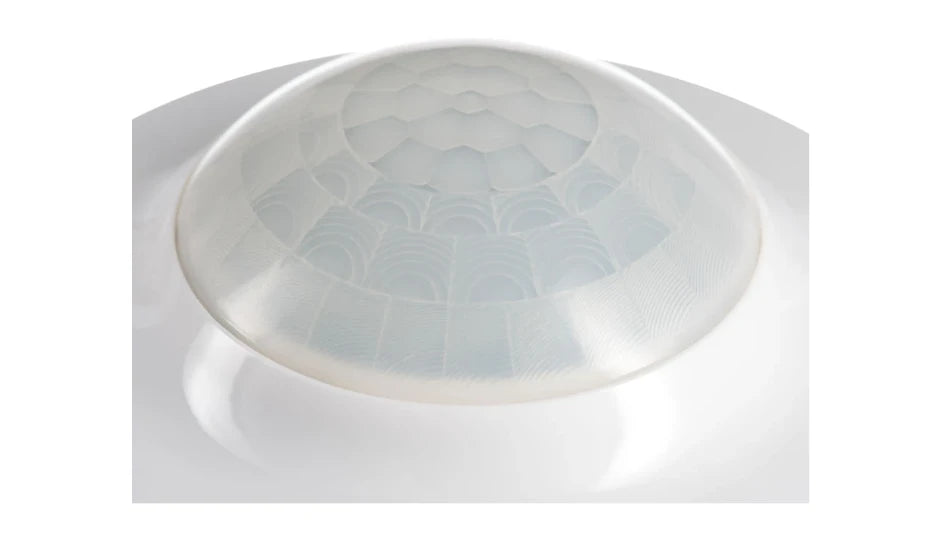

The STW360 provides 360° detection from a ceiling position, giving wide coverage across the room. When mounted at approximately 2.5m height, it offers an 8m diameter detection range, making it suitable for many standard domestic and light commercial rooms. The surface mount design means it sits on the ceiling and does not require a recessed cut-out.

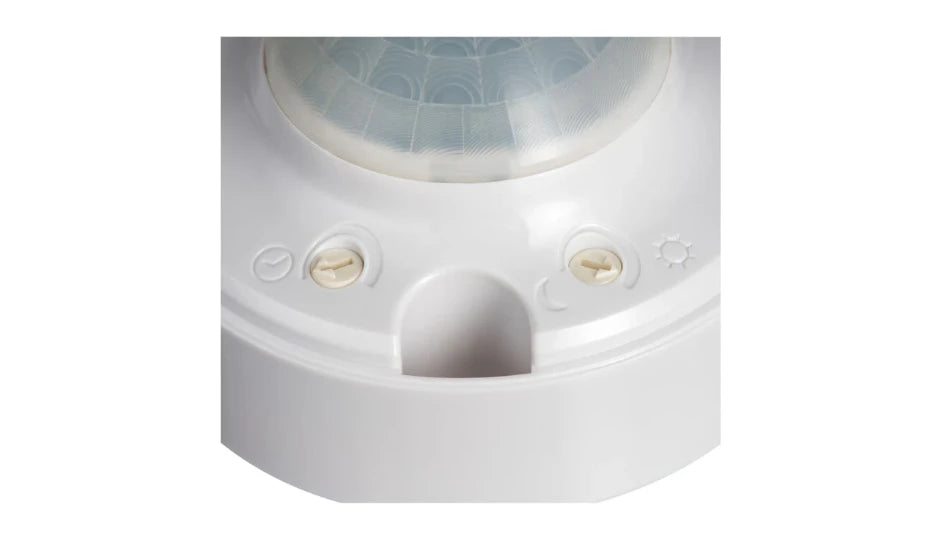

For flexible setup, the Timeguard STW360 includes an adjustable ON time from 3 seconds to 18 minutes. This allows the light to stay on for a short time in quick-use areas, or longer in rooms where people may remain for more time. The adjustable lux setting from 10 to 1000 lux allows the sensor to be set so lights only come on when the surrounding light level is low enough.
The unit is suitable for LED lighting loads up to 200W and halogen loads up to 1000W, making it a dependable choice for many indoor lighting circuits. It also includes a manual override pulse function for extended light-on times, plus support for wiring up to 5 STW360 sensors in parallel, provided the total load does not exceed the rating of a single unit.
Finished in white with a compact polycarbonate body, the STW360 is a clean and discreet ceiling PIR sensor for homes, rental properties, offices and shared indoor areas. It is IP40 rated for restricted internal applications and should be installed by a qualified electrician.
Key SEO Features
360° ceiling PIR motion sensor
Surface mount indoor light sensor
Automatically switches lights on when movement is detected
Ideal for hallways, corridors, toilets, cupboards and utility rooms
8m diameter detection range at 2.5m mounting height
Adjustable ON time from 3 seconds to 18 minutes
Adjustable daylight lux setting from 10 to 1000 lux
Manual override pulse for extended light-on times
Suitable for LED lighting loads up to 200W
Suitable for halogen lighting loads up to 1000W
Up to 5 STW360 PIR sensors can be wired in parallel
230V AC operation
IP40 rated for indoor restricted applications
White polycarbonate body
Compact 88mm x 88mm x 50mm design
2-year manufacturer guarantee
Customer Benefits
Helps stop lights being left on unnecessarily
Makes lighting automatic and more convenient
Useful in rooms where hands-free lighting is helpful
Helps improve safety in hallways, landings and shared spaces
Daylight setting helps avoid lights switching on when not needed
Adjustable timer lets you choose how long lights stay on
Surface mount design avoids the need for ceiling cut-outs
Works with many LED lighting circuits up to 200W
Clean white finish blends into most ceilings
Suitable for homes, landlords, offices and light commercial buildings
Product Specification
Brand: Timeguard
Product Code: STW360
Product Range: Suretime
Product Type: Surface mount PIR motion sensor
Mounting Type: Ceiling surface mount
Detection Angle: 360°
Detection Range: 8m diameter at 2.5m mounting height
Operating Voltage: 230V AC
Frequency: 50Hz / 50–60Hz listed across datasheet sources
ON Time Adjustment: 3 seconds to 18 minutes
Lux Adjustment: 10 to 1000 lux
LED Load Rating: 200W
Halogen Load Rating: 1000W
Low Energy / Fluorescent Load: 200W
Ingress Protection: IP40
Installation Type: Surface
Class Rating: Class II / Class 2
Number of Channels: 1
Standby Consumption: Less than 1W
Parallel Wiring: Up to 5 STW360 units
Cable Entry: Back entry
Body Material: Polycarbonate
Colour: White
Height: 88mm
Width: 88mm
Depth: 50mm
Weight: 72g
Guarantee: 2 years
Application: Indoor automatic lighting control
