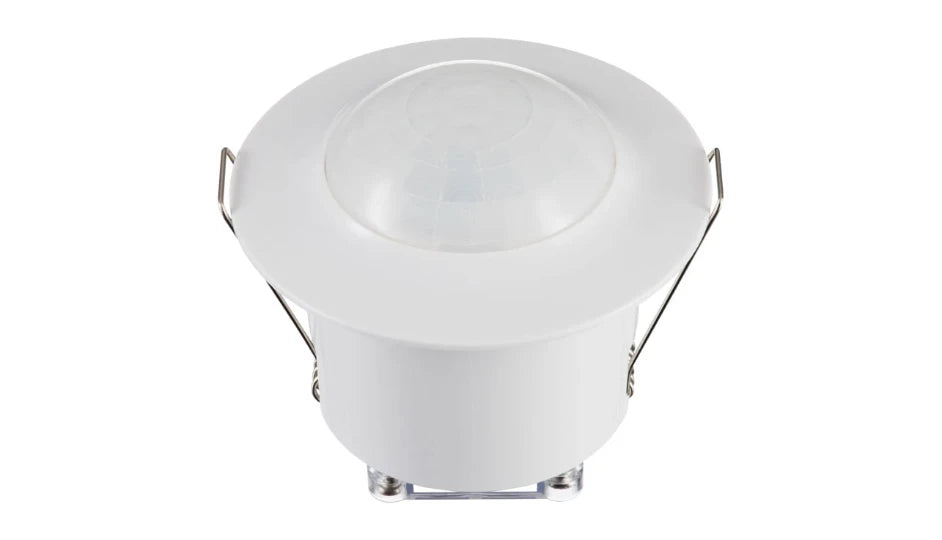

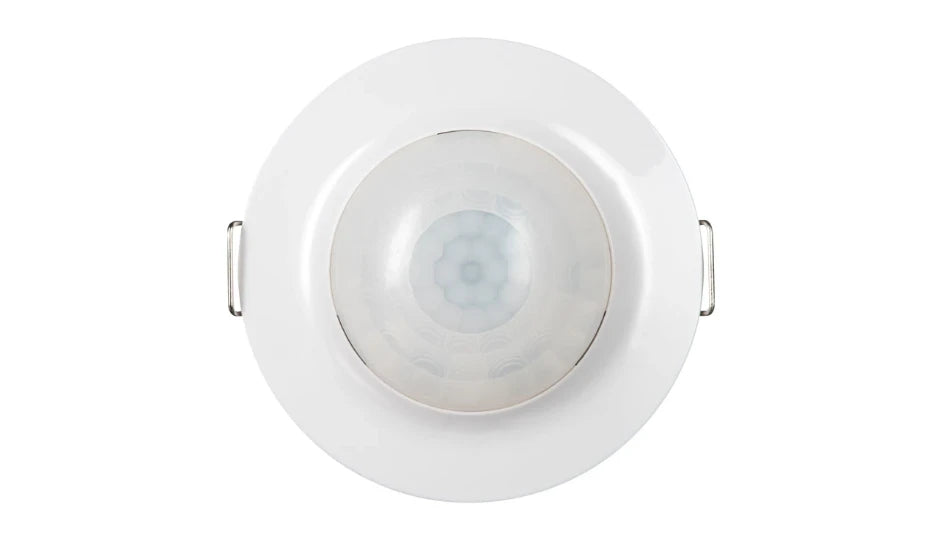

Timeguard STFM360 Suretime Flush Mount 360° PIR

The Timeguard STFM360 Suretime Flush Mount 360° PIR is a compact ceiling motion sensor designed to control indoor lighting automatically. It detects movement and switches connected lights on, helping make everyday spaces more convenient while reducing the chance of lights being left on unnecessarily.

This flush-mounted PIR sensor is ideal for areas where hands-free lighting is useful, including hallways, landings, toilets, cupboards, storerooms, utility rooms, corridors, offices and communal indoor areas. Unlike a surface-mounted PIR, the STFM360 is designed to sit recessed into the ceiling for a cleaner, more discreet finish.

With 360° detection, the sensor provides wide coverage from a ceiling position. At a 3m mounting height, it offers a detection range of up to 6m, making it suitable for many standard domestic and light commercial rooms. The included 60mm ceiling cut-out requirement makes it suitable for neat flush installation in compatible ceiling types.

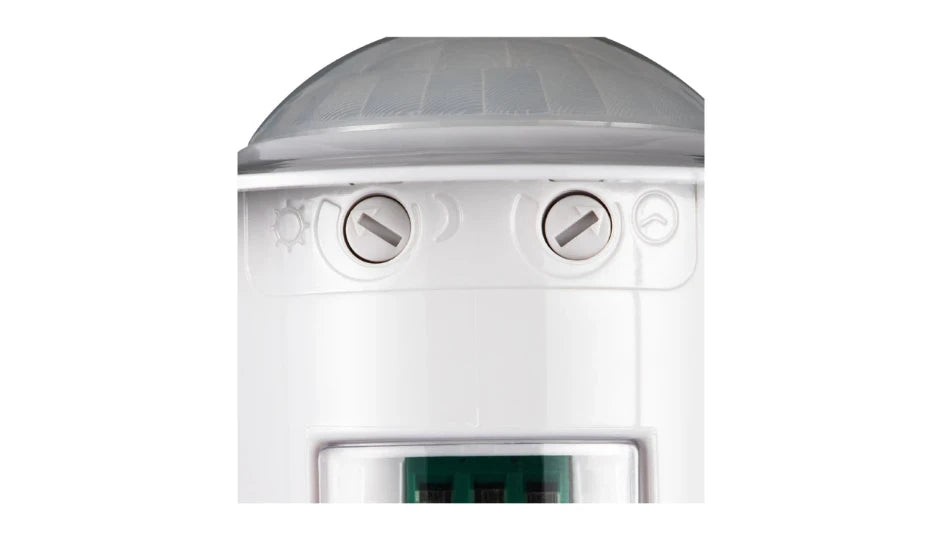

The adjustable ON time lets users choose how long the lights remain on after movement is detected, from 3 seconds to 18 minutes. The adjustable daylight setting, from 10 to 1000 lux, allows the sensor to be set so lights only activate when the room is dark enough. This helps avoid unnecessary switching during daylight hours.

The Timeguard STFM360 is suitable for LED lighting loads up to 200W and incandescent or halogen loads up to 1000W. It also includes a manual override pulse facility for extended light-on times, and up to 5 STFM360 PIR sensors can be wired in parallel, provided the total lighting load does not exceed the rating of a single unit.

Finished in white with a polycarbonate body, the STFM360 is a discreet PIR light controller for homes, rental properties, offices and shared indoor spaces. It is IP44 rated for restricted internal applications, Class 2 protected and supplied with a 2-year manufacturer guarantee.

Key SEO Features

•
  Flush mount 360° ceiling PIR sensor

•
  Indoor motion sensor for automatic lighting

•
  Switches lights on when movement is detected

•
  Ideal for hallways, toilets, corridors, cupboards and utility rooms

•
  Discreet recessed ceiling installation

•
  360° detection angle for wide room coverage

•
  Up to 6m detection range at 3m mounting height

•
  Adjustable ON time from 3 seconds to 18 minutes

•
  Adjustable daylight lux setting from 10 to 1000 lux

•
  Manual override pulse for extended light-on times

•
  Suitable for LED lighting loads up to 200W

•
  Suitable for halogen/incandescent loads up to 1000W

•
  Up to 5 STFM360 sensors can be wired in parallel

•
  60mm diameter ceiling cut-out

•
  IP44 rated for restricted internal applications

•
  White polycarbonate body

•
  Class 2 protection

•
  2-year manufacturer guarantee


Customer Benefits

•
  Helps stop lights being left on unnecessarily

•
  Makes lighting automatic and more convenient

•
  Ideal for hands-free lighting in busy areas

•
  Flush mount design gives a neat, low-profile ceiling finish

•
  Daylight setting helps lights operate only when needed

•
  Adjustable timer suits both quick-use and longer-stay rooms

•
  Works with many modern LED lighting circuits up to 200W

•
  Useful for homes, rental properties and small commercial spaces

•
  Can be linked with multiple sensors for wider area coverage

•
  Clean white finish blends with most ceilings


Product Specification

•
  Brand: Timeguard

•
  Product Code: STFM360

•
  Product Range: Suretime

•
  Product Type: Ceiling PIR motion sensor

•
  Mounting Type: Flush mount

•
  Detection Angle: 360°

•
  Detection Range: Up to 6m at 3m mounting height

•
  Operating Voltage: 230V AC

•
  Frequency: 50Hz

•
  ON Time Adjustment: 3 seconds to 18 minutes

•
  Lux Adjustment: 10 to 1000 lux

•
  LED Load Rating: 200W

•
  Fluorescent Load Rating: 200W

•
  Low Energy / CFL Load Rating: 200W

•
  Incandescent / Halogen Load Rating: 1000W

•
  Manual Override: Yes, pulse function

•
  Parallel Wiring: Up to 5 STFM360 units

•
  Ceiling Cut-Out: 60mm diameter

•
  Ingress Protection: IP44, restricted internal applications

•
  Class Protection: Class 2

•
  Body Material: Polycarbonate

•
  Colour: White

•
  Height: 76.5mm

•
  Width: 82mm

•
  Depth: 82mm

•
  Weight: 86g

•
  Operating Temperature: -20°C to +40°C

•
  Included Accessories: Instructions, fittings, cable clamps and lens mask sticker

•
  Standard: Designed in accordance with BS EN 60669-2-1

•
  Guarantee: 2 years

What is the difference between STFM360 and STW360?

The STFM360 is flush mounted, meaning it sits recessed into the ceiling. The STW360 is surface mounted, meaning it fixes onto the ceiling surface. The STFM360 is usually better when a neater, low-profile ceiling finish is required.

Does this PIR sensor need a ceiling cut-out?

Yes. The STFM360 requires a 60mm diameter ceiling cut-out.

What detection angle does it have?

It has a 360° detection angle, giving wide coverage from a ceiling-mounted position.

What is the detection range?

The STFM360 has a detection range of up to 6m at a 3m mounting height.

Can the light-on time be adjusted?

Yes. The ON time can be adjusted from 3 seconds to 18 minutes.

Does it have a daylight sensor?

Yes. The lux setting is adjustable from 10 to 1000 lux, so the lights can be set to operate only when the room is dark enough.

Can I use the STFM360 with LED lights?

Yes. It is suitable for LED lighting loads up to 200W.

What is the maximum halogen load?

The STFM360 is suitable for incandescent or halogen lighting loads up to 1000W.

Does it have manual override?

Yes. It includes a manual override pulse function for extended light-on times.

Can multiple STFM360 sensors be used together?

Yes. Up to 5 STFM360 PIR sensors can be wired in parallel, provided the total connected load does not exceed the rating of one unit.

Is the STFM360 suitable for outdoor use?

No. It is IP44 rated for restricted internal applications, so it is intended for indoor use only.

Is this suitable for bathrooms?

It may be suitable in some bathroom locations, but suitability depends on the bathroom zone and current wiring regulations. A qualified electrician should confirm the installation location before fitting.

Who should install the Timeguard STFM360?

The STFM360 should be installed by a qualified electrician or competent electrical professional in accordance with current wiring regulations.
