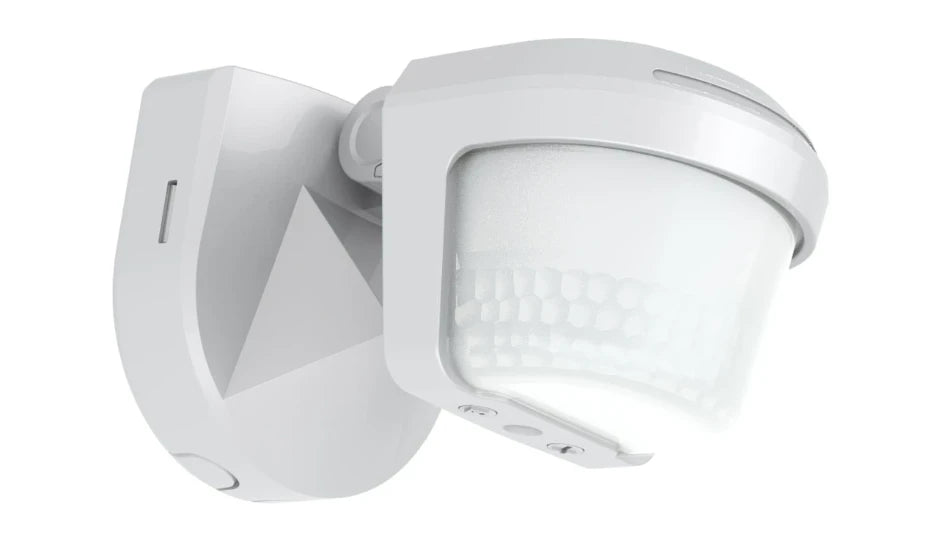

Timeguard SLW2301 PIR & Photocell 2kW Standalone White

The Timeguard SLW2301 Outdoor PIR Photocell Sensor is a reliable motion sensor light controller for homes, gardens, driveways, garages and light commercial properties. It is designed to automatically switch connected lighting on when movement is detected, helping improve outdoor security, visibility and convenience.

This standalone PIR sensor combines movement detection with a built-in photocell, allowing lighting to operate only when it is dark enough. This helps reduce unnecessary daytime switching and can support lower energy use compared with lights that are left on manually.

With a 180° detection angle and a detection range of up to 12 metres at 2.5m mounting height, the SLW2301 is ideal for covering entrances, side paths, driveways, garden areas, sheds, outbuildings and building perimeters. The pan and tilt sensor head allows the detection zone to be adjusted for more accurate coverage.

The adjustable timer lets you choose how long the connected light stays on after motion is detected, from 2 seconds to 15 minutes. The adjustable lux control allows the sensor to respond at the preferred ambient light level, while the dusk-to-dawn photocell mode can keep the load on from dusk until dawn when required. The Timeguard installation instructions also confirm a Lux Learn mode, which allows the PIR to learn the ambient light level at which the load should switch on.

Designed for outdoor use, the SLW2301 has an IP65 rating, offering protection against dust and low-pressure water jets. It is suitable for 2000W halogen, 400W LED, 400W fluorescent and 200W CFL loads, making it suitable for many replacement and new lighting installations.

Finished in white, with push-fit terminals for easier installation, the Timeguard SLW2301 is a practical choice for anyone looking to add automatic control to outdoor lights, security lights or existing floodlights.

Key SEO Features

•
  White outdoor PIR photocell sensor

•
  Automatic motion sensor light controller

•
  Ideal for outdoor security lighting

•
  180° wide-angle PIR detection

•
  Up to 12m detection range at 2.5m mounting height

•
  Adjustable ON time from 2 seconds to 15 minutes

•
  Adjustable light level setting from 2 to 1000 lux

•
  Dusk-to-dawn photocell mode

•
  Lux Learn setting for preferred light activation level

•
  Manual override function

•
  Adjustable sensitivity settings

•
  Pan and tilt sensor head to alter the detection zone

•
  IP65 weatherproof rating for outdoor use

•
  Suitable for 2000W halogen loads

•
  Suitable for 400W LED loads

•
  Push-fit terminals for easier installation

•
  White finish for clean exterior wall mounting

•
  3-year manufacturer guarantee


Customer Benefits

•
  Automatically switches outdoor lights on when movement is detected

•
  Helps improve home security around doors, paths and driveways

•
  Helps stop outdoor lights being left on unnecessarily

•
  Built-in photocell helps lights work only when needed

•
  Adjustable timer lets customers choose how long lights stay on

•
  Manual override gives extra control when constant lighting is needed

•
  Pan and tilt head helps direct detection away from unwanted areas

•
  IP65 rating makes it suitable for exposed outdoor installations

•
  Good replacement for older outdoor PIR light sensors

•
  Suitable for homes, rental properties, garages and small commercial sites


Product Specification

•
  Brand: Timeguard

•
  Product Code: SLW2301

•
  Product Type: PIR and photocell sensor

•
  Controller Type: Outdoor motion sensor light controller

•
  Colour: White

•
  Detection Angle: 180°

•
  Detection Range: Up to 12m

•
  Optimum Mounting Height: 2.5m

•
  Timer Range: 2 seconds to 15 minutes

•
  Lux Adjustment: 2 to 1000 lux

•
  Photocell Mode: Dusk-to-dawn operation

•
  Manual Override: Yes

•
  Sensitivity Adjustment: Yes

•
  Sensor Head Adjustment: Pan and tilt

•
  Maximum Halogen Load: 2000W

•
  Maximum LED Load: 400W

•
  Maximum Fluorescent Load: 400W

•
  Maximum CFL Load: 200W

•
  Voltage: 220–240V / 230V AC

•
  Frequency: 50–60Hz

•
  IP Rating: IP65

•
  Mounting Type: Surface mounted

•
  Connection Type: Push-fit terminals

•
  Compliance: BS EN 61347

•
  Ambient Temperature: -25°C to +50°C, according to the Deta product data

•
  Dimensions: 75mm high x 78mm wide x 122mm deep, according to the Deta product data

•
  Guarantee: 3 years

What is the Timeguard SLW2301 used for?

The Timeguard SLW2301 is used to control outdoor lighting automatically. It switches connected lights on when movement is detected and can use the built-in photocell to operate only when the surrounding light level is low.

Is the SLW2301 suitable for outdoor use?

Yes. The SLW2301 is IP65 rated, making it suitable for outdoor lighting control applications.

Does this sensor detect movement?

Yes. It uses a PIR motion sensor with a 180° detection angle and a detection range of up to 12m.

Does it have a photocell?

Yes. The built-in photocell allows the sensor to respond to ambient light levels, so lights can be set to operate only when it is dark enough.

What is dusk-to-dawn mode?

Dusk-to-dawn mode allows the connected light to come on at dusk and go off at dawn, using the photocell function rather than normal PIR motion detection.

Can I adjust how long the light stays on?

Yes. The timer can be adjusted from 2 seconds to 15 minutes.

Can I adjust when the light comes on in darkness?

Yes. The lux setting can be adjusted from 2 to 1000 lux, allowing you to choose how dark it needs to be before the light operates.

Does the Timeguard SLW2301 have manual override?

Yes. It includes manual override, so the connected light can be kept on when needed.

Can I use it with LED floodlights?

Yes. The SLW2301 is suitable for LED lighting loads up to 400W.

What is the maximum halogen load?

The maximum halogen load is 2000W.

Can the sensor direction be adjusted?

Yes. The pan and tilt head lets the installer adjust the detection zone for better coverage.

Where should I install this PIR sensor?

It is commonly installed near driveways, entrances, garden paths, garages, side passages, sheds, outbuildings and building perimeters.

Is this suitable for replacing an old outdoor PIR sensor?

Yes. It is suitable for new and existing installations, provided the connected load and wiring are compatible.

Who should install the SLW2301?

This product should be installed by a qualified electrician or competent electrical professional in accordance with current wiring regulations.
