Timeguard PV1000 Boostmaster PV Boost Immersion Controller

Boostmaster’s PV Boost by Timeguard is an innovative way to lower your water heating costs by utilising the excess energy your solar panels generate. With a single clamp fitted by your household meter, the system can wirelessly send real-time information about how much solar energy you’re exporting. Whenever surplus energy greater than 100W is detected, PV Boost automatically adjusts and redirects this excess power to your immersion heater.
PV Boost continuously regulates the energy flow to match changing levels of solar export throughout the day, so your water is heated efficiently using only the surplus power. Once the water reaches the temperature set on your immersion thermostat, the system stops supplying extra energy to prevent waste. If additional hot water is required, it can be supplemented using traditional heating system or manually adjusted via the PV Boost controls. It’s a smart, eco-friendly way to maximise your solar investment and enjoy lower energy bills.

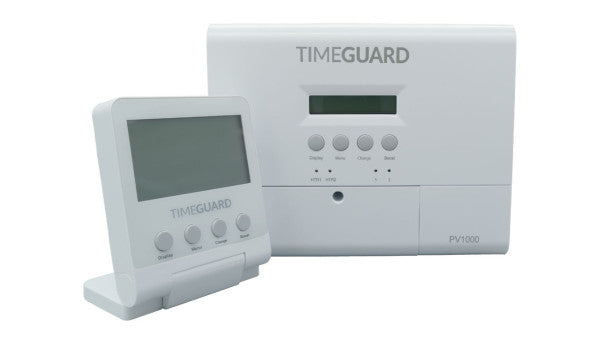

• All-in-one solution with main unit, display unit and sender
• Redirects excess solar energy to your immersion heater, heating your water for free
• View the total kWh saved during today, yesterday, 7 days, 28 days and total days via the main PV Boost unit or display unit
• Cut in threshold of 100W of excess current before switching on
• Boosts of 15-minute timed increments up to 2 hours
• Wireless display unit can be positioned up to 30m away from the PV Boost main unit
• Fixing accessories and clamp included
• EN300220, EN301489-1, EN301489-3, EN61010-1, EN60730-2-7, EN50663:2017-EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

The Timeguard PV1000 BoostMaster Immersion Controller is the perfect replacement solution for maximizing your solar PV energy by diverting excess electricity to heat your water. Designed for solar hot water systems, the PV1000 intelligently controls your immersion heater, offering energy savings and efficient water heating
