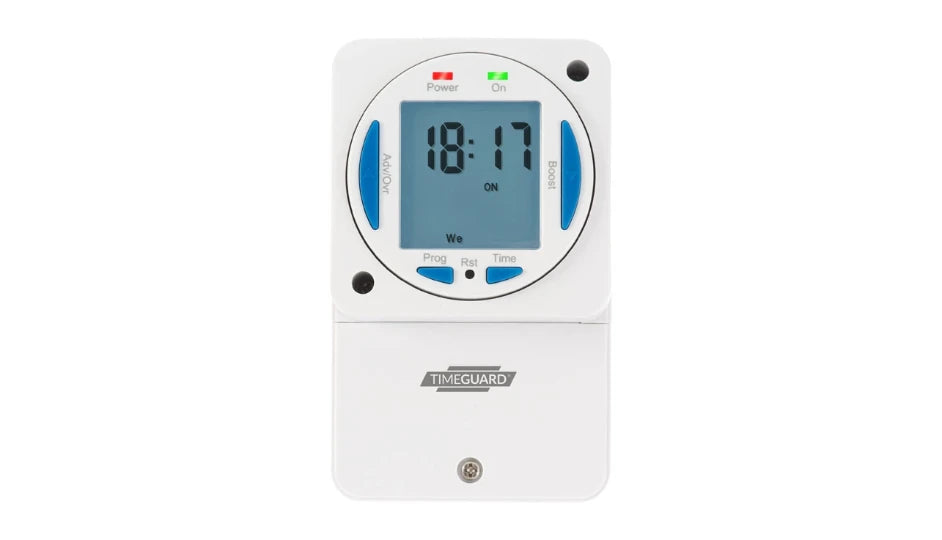

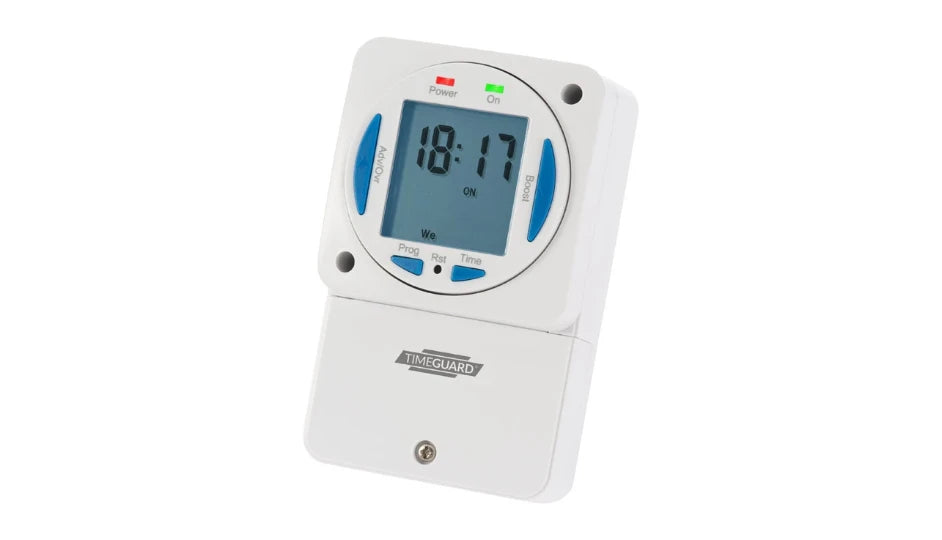

The Timeguard NTT07 7 Day Slimline Electronic General Purpose Timeswitch is designed for reliable weekly control of lighting, heating, appliances and other electrical loads. With voltage free contacts and a 16A rating, it is a flexible timer switch for domestic, commercial and light-duty control applications.
This slimline electronic timeswitch offers up to 4 ON and OFF programmes, allowing users to automate connected equipment across a weekly schedule. The 1-minute shortest switching interval provides accurate timing control, making it suitable for everyday energy saving, heating control, lighting schedules and appliance automation.
The extra large display with blue LED backlighting makes settings easy to view, while the large programme buttons help simplify setup. Red “Mains ON” and green “Output” LED indicators show the timer status at a glance, giving installers and users clear confirmation of power and output operation.
For practical day-to-day use, the NTT07 includes a self-cancelling override button to the next programme change, optional 1 and 2 hour boost function, automatic summer/winter time change and rechargeable memory backup to help retain settings during power interruptions.
With a compact surface-mounted design, IP20 rating and 3-year manufacturer guarantee, the Timeguard NTT07 is a dependable choice for electricians, landlords and maintenance teams needing a slimline 7 day timer switch with voltage free contacts.
Key SEO Features
- Slimline 7 day electronic timeswitch
- General purpose digital timer switch
- Voltage free contacts for flexible applications
- 16A rated current
- Up to 4 ON/OFF programmes
- 1-minute shortest switching interval
- Extra large screen with blue LED backlighting
- Large programme buttons
- Red mains ON LED indicator
- Green output LED indicator
- Self-cancelling override to next programme change
- Optional 1 and 2 hour boost button
- Automatic summer/winter time change
- Rechargeable memory backup
- Surface-mounted installation
- IP20 rated for indoor use
- 3-year manufacturer guarantee
Customer Benefits
- Provides weekly automatic control of connected equipment
- Voltage free contacts suit lighting, heating and appliance applications
- Slimline design offers a neat installation finish
- Boost function gives temporary extra operation without changing programmes
- Override button allows quick manual control until the next schedule change
- Backlit screen and large buttons make programming easier
- LED indicators clearly show mains and output status
- Battery backup helps protect settings during power interruptions
- Ideal for electricians, landlords and facilities maintenance teams
Product Specification
- Brand: Timeguard
- Product Code: NTT07
- Product Type: Slimline electronic general purpose timeswitch
- Timer Type: 7 day electronic timer
- Contact Type: Voltage free contacts
- Rated Current: 16A
- Nominal Voltage: 230V AC
- Frequency: 50–60Hz
- Programmes: Up to 4 ON/OFF programmes
- Minimum Switching Interval: 1 minute
- Display: Extra large screen with blue LED backlighting
- Indicators: Red mains ON LED and green output LED
- Controls: Large programme buttons
- Override: Self-cancelling override to next programme change
- Boost: Optional 1 and 2 hour boost
- Time Changeover: Automatic summer/winter time change
- Backup: Rechargeable memory backup
- Mounting Method: Surface mounted
- IP Rating: IP20
- Colour: White
- Finish: Matt
- Height: 120mm
- Width: 74mm
- Depth: 46mm
- Guarantee: 3 years
- Application: Lighting control, heating control, appliance control and general-purpose timed switching
