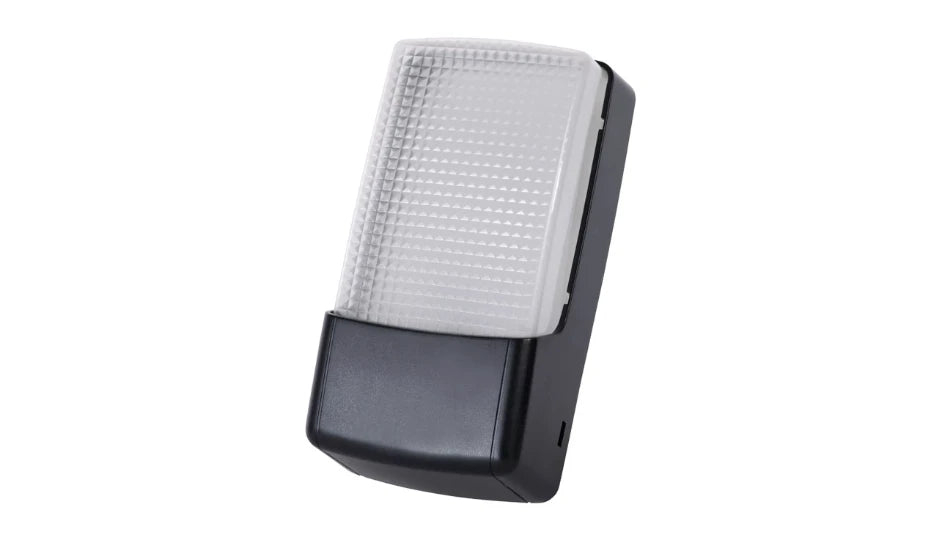

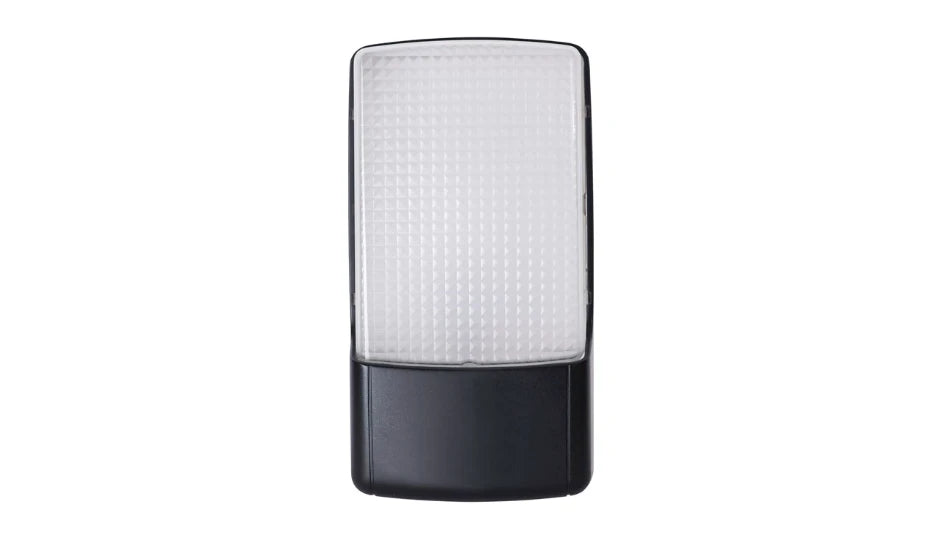

Timeguard LED88N is a 6.5W LED energy saver bulkhead light for indoor and outdoor wall or surface mounting. It produces 500 lumens of 4000K cool white light, has an IP55 weatherproof rating, integrated SMD LEDs, prismatic diffuser, polycarbonate housing, fast-fix terminal block, through wiring support and a 3-year guarantee.
Specification
The Timeguard LED88N 6.5W LED Energy Saver Bulkhead Light is a compact and efficient lighting solution for indoor and outdoor applications. Designed for surface mounting, this IP55 LED bulkhead is suitable for domestic and light commercial areas such as entrances, corridors, utility spaces, garages, porches, walkways and exterior walls.
Producing 500 lumens of 4000K cool white light, the LED88N offers clear everyday illumination while using only 6.5W of power. The wide 90° x 90° beam angle helps distribute light across the surrounding area, making it a practical choice for general-purpose safety, security and access lighting.
The fitting features a lightweight polycarbonate housing with a prismatic diffuser to help provide even light distribution. Integrated SMD LEDs offer low-maintenance performance, while the fast-fix terminal block connection helps make installation quicker and simpler for electricians.
With an IP55 rating, the Timeguard LED88N is protected against dust and low-pressure water jets from any direction, making it suitable for outdoor wall mounting as well as indoor use. Through wiring support, Class II protection and a 3-year manufacturer guarantee make this a reliable energy-saving LED bulkhead for residential and light commercial installations.
Key SEO Features
6.5W LED energy saver bulkhead light
500 lumen light output
4000K cool white colour temperature
IP55 rated for indoor and outdoor use
Wide 90° x 90° beam angle
Integrated SMD LEDs
Prismatic diffuser for even light distribution
Lightweight polycarbonate housing
Fast-fix terminal block connection
Suitable for surface mounting
Suitable for wall mounting
Suitable for through wiring
230V AC operation
Class II protection
Compact black housing
3-year manufacturer guarantee
Customer Benefits
Energy-saving 6.5W LED lighting helps reduce running costs
Suitable for both indoor and outdoor installations
Cool white light improves visibility around entrances and walkways
IP55 rating makes it suitable for exposed wall areas
Prismatic diffuser helps reduce harsh glare and spread light evenly
Integrated LEDs mean no separate lamp is required
Fast-fix terminals help speed up installation
Through wiring support gives installers more flexibility
Compact bulkhead design suits domestic and light commercial properties
Product Specification
Brand: Timeguard
Product Code: LED88N
Product Type: LED energy saver bulkhead light
Wattage: 6.5W
Light Output: 500 lumens
Colour Temperature: 4000K cool white / 3700K–4200K range
Beam Angle: 90° x 90°
IP Rating: IP55
Voltage: 230V AC
Light Source: Integrated non-replaceable LED
LED Type: Integrated SMD LEDs
Diffuser: Prismatic diffuser
Housing Material: Polycarbonate
Housing Colour: Black
Connection Type: Fast-fix / screwed terminal
Mounting: Surface mounting / wall mounting
Cabling: Suitable for through wiring
Protection Class: Class II
Height: 205mm
Width: 108mm
Depth: 63.5mm
Guarantee: 3 years
Application: Entrances, porches, garages, walkways, corridors, utility areas and exterior wall lighting
FAQ's
What is the Timeguard LED88N used for?
The Timeguard LED88N is used for energy-saving indoor and outdoor lighting. It is suitable for entrances, garages, corridors, porches, walkways, utility areas and exterior wall lighting.
Is the LED88N suitable for outdoor use?
Yes. The LED88N has an IP55 rating, giving protection against dust and low-pressure water jets from any direction.
How bright is the Timeguard LED88N?
It produces 500 lumens of light output.
What wattage is the LED88N?
The LED88N uses 6.5W of power.
What colour temperature is the light?
The LED88N produces cool white light, listed as 4000K with a 3700K to 4200K colour temperature range.
Does this bulkhead include the LED light source?
Yes. It has integrated SMD LEDs, so no separate lamp is required.
Can the LED be replaced?
No. The LED88N uses a non-replaceable integrated LED light source.
What type of diffuser does it have?
It has a prismatic diffuser to help provide even light distribution.
Can it be surface mounted?
Yes. The LED88N is suitable for surface mounting and wall mounting.
Is it suitable for through wiring?
Yes. Timeguard lists the LED88N as suitable for through wiring.
