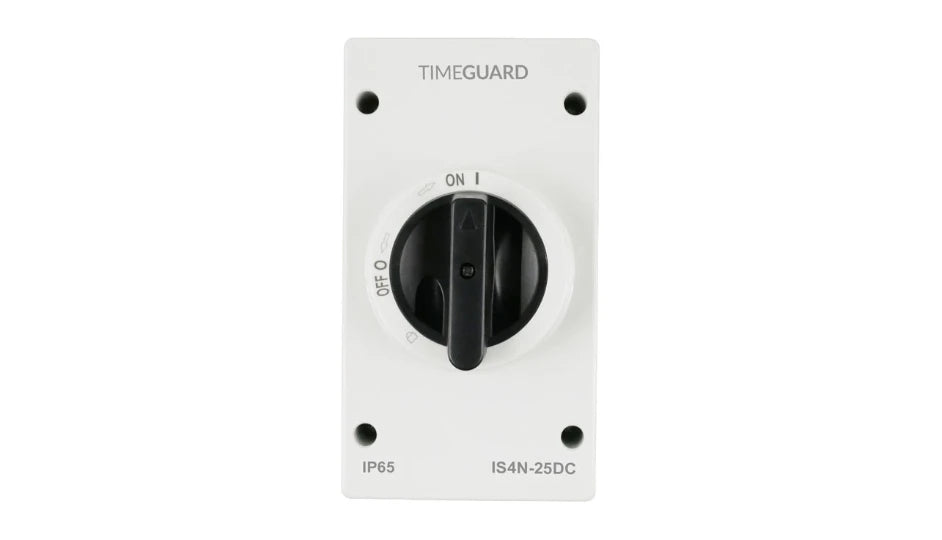

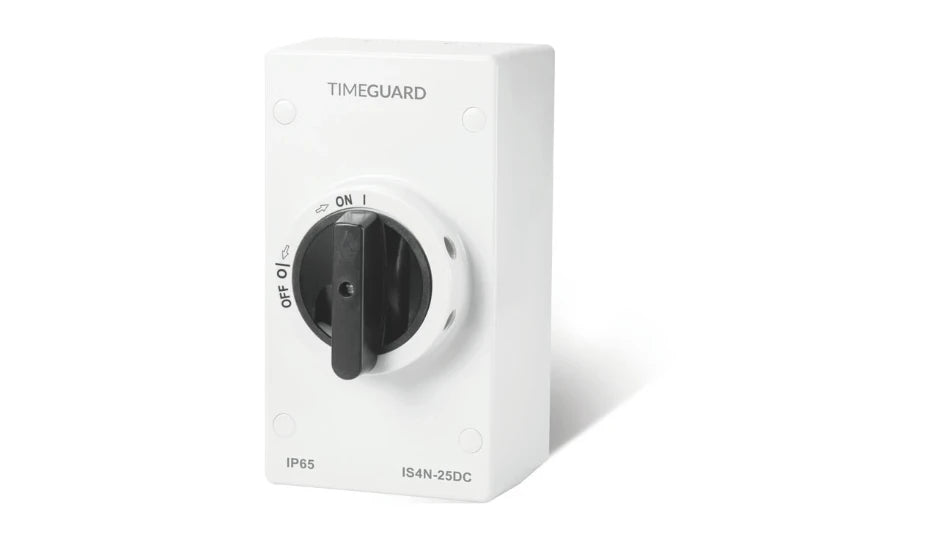

Timeguard IS4N-25DC IP65 DC Rotary Isolator Switch - 4 Pole 25A
Estimated delivery time: Next working day
Description
The Timeguard IP65 DC Rotary Isolator Switch (IS4N-25DC) is a robust and reliable solution for safely isolating DC power supplies in a wide range of applications, including solar PV systems, battery storage, inverters and other DC installations. Designed for durability and safety, this 4-pole 25A DC isolator ensures secure disconnection during maintenance or emergency shutdowns.
Housed in a tough IP65-rated weatherproof enclosure, this DC isolator switch is suitable for both indoor and outdoor use, providing excellent protection against dust and water ingress. The rotary switch mechanism offers clear ON/OFF operation, while the lockable OFF position enhances safety by preventing unauthorised operation. An interlocked cover ensures the enclosure cannot be opened while the switch is in the ON position, helping to reduce the risk of electric shock.
The isolator features multiple cable entry points for flexible installation and is manufactured from high-quality thermoplastic materials for long-term reliability in demanding environments. With its compact design and straightforward wiring, the IS4N-25DC is ideal for professional installers looking for a dependable DC isolation solution that complies with modern electrical safety requirements.
Main Features:
- Large enclosure for easier wiring made from tough thermoplastic
- On-load switch disconnectors
- Interlocked front cover can only be removed from the OFF position Lockable switch to prevent tampering
- Multiple M20 cable entry knockouts on enclosure
- The switch can be easily removed from the housing assembly allowing for a quick and easy installation
- Guaranteed arc suppression time of under 5mS
- Rising clamp terminals with 16mm² max cable support
- 3-year guarantee
