Timeguard FBT4N 4 Hour Electronic Boost Timer and Fused Spur

Timeguard FBT4N 4 Hour Electronic Boost Timer and Fused Spur

SKU FBT4N
£24.85 - £24.85
£24.85 inc VAT £20.71 exc VAT
£24.85 - £24.85
£24.85 inc VAT £20.71 exc VAT inc VAT £20.71 exc VAT
Availability:
25 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

BoostMaster Fused Spur Countdown Switches now added to the range providing timed output protected by a BS1362 fuse switch. Automatic timed countdown selections using simple push button programming with clear LED output status. Simply replace existing single gang connection units or fixed appliance outlets.

  • Ideal for immersion heaters, room heaters, towel rails and lighting
  • Replaces existing single gang connection unit or fixed appliance outlets
  • Easy push button selection with clear LED output status
  • Provides timed output protected by a BS1362 fuse switch
Specification
  • Operating Voltage - 230V AC
  • Frequency - 50Hz
  • Installation Type - Flush Wall Box / Surface Mount Patress Box
  • Earth Class Rating - Class II
  • Ingress Protection Rating - IP20
  • Setting Type - Digital
  • Program Modes - Countdown
  • Back Box Minimum Depth (mm) - 25
  • Number of Channels - 1
  • Switch rating - 13A Resistive, 1000W Incandescent/Halogen, 500W Fluorescent, 200W LED, 100W CFL
  • Shortest Switching Time - 15 Minutes
  • Time Delay Range - ¼ hour, ½ Hour, 1 Hour, 2 Hour or 4 Hour
  • Body Construction - Polycarbonate
  • Time Delay Range - ¼ hour, ½ Hour, 1 Hour, 2 Hour or 4 Hour
  • Standby Consumption - <0.7W

Datasheet

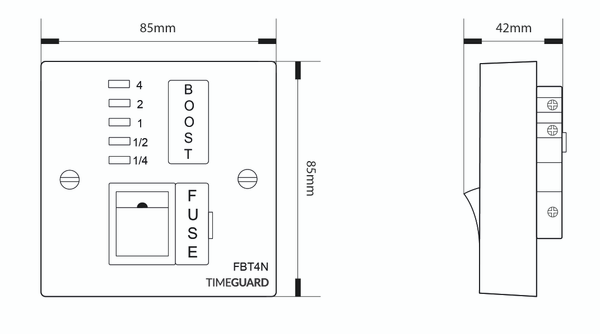

Product Dimensions

Height - 85mm

Width - 85mm

Depth - 42mm
