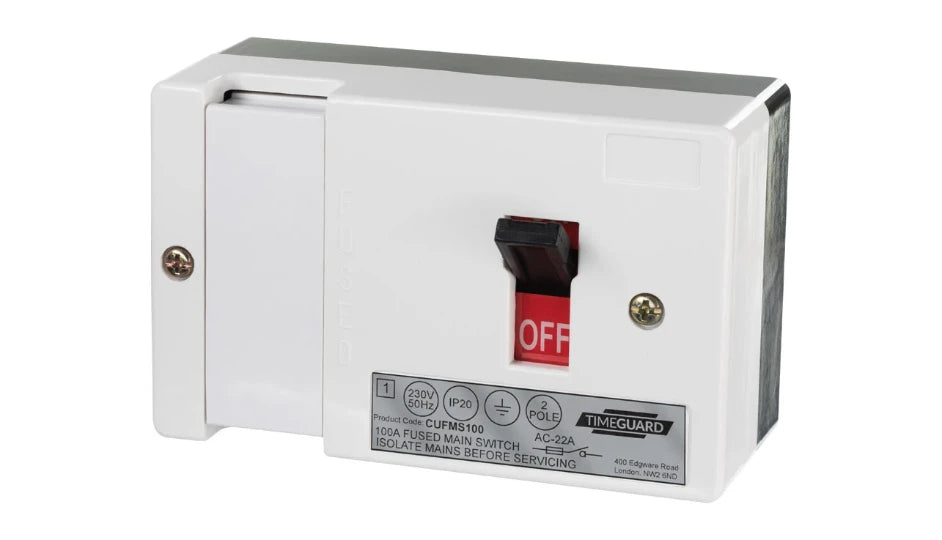

The Deta Timeguard CUFMS100 100A Fused Switch Unit provides a reliable solution for protection and isolation of 230V AC electrical supplies. Designed for surface-mounted installation, this switch fuse unit is commonly used for sub mains, system extensions and incoming mains isolation where a robust fused switch is required.
Supplied complete with both 100A and 80A HRC fuses, the CUFMS100 gives installers flexibility depending on the required circuit rating. Its double pole switch design provides isolation of both live and neutral conductors, while the included cable shroud helps deliver a neat, protected and professional installation.
The unit is built with a grey plastic body and black rocker/switch operator, offering a practical finish suitable for electrical intake areas, plant rooms, cupboards and service spaces. With a maximum cable capacity of 35mm², IP20 rating, 98mm mounting centres and surface mount design, it is well suited to domestic and light commercial electrical installations.
Backed by a 3-year manufacturer guarantee, the Deta Timeguard CUFMS100 is a dependable choice for electricians and contractors needing a 100A fused switch unit for 230V AC circuit protection and isolation.
Key Features
- 100A surface mount fused switch unit
- Suitable for 230V AC protection and isolation
- Double pole switch type
- Supplied with 1 x 100A HRC fuse and 1 x 80A HRC fuse

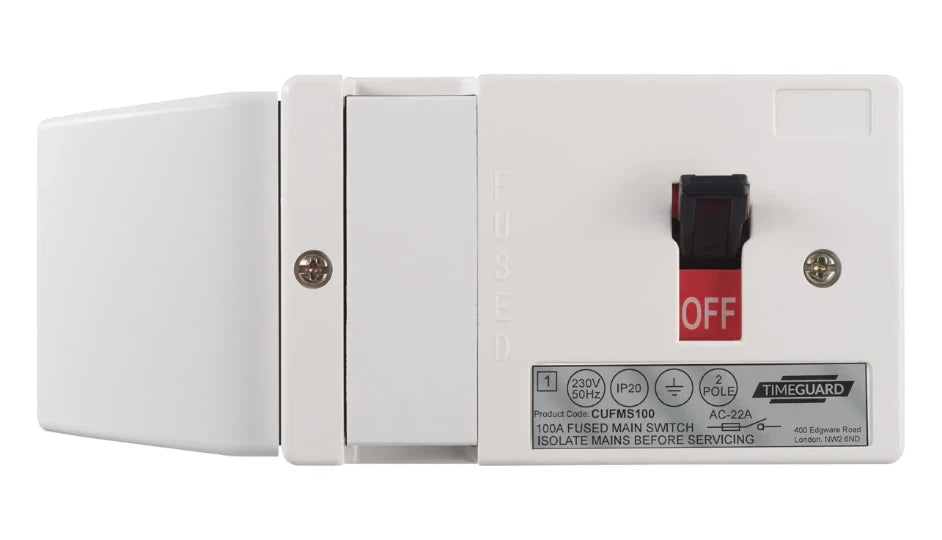

- Cable shroud/cover included as standard
- Maximum cable capacity of 35mm²
- IP20 rated for internal restricted applications
- Surface-mounted installation
- 98mm mounting centres
- Grey body with black switch operator
- Suitable for sub mains, system extensions and incoming mains isolation
- 3-year manufacturer guarantee
Customer Benefits
- Provides safe isolation for mains electrical supplies
- Supplied with two HRC fuse ratings for installation flexibility
- Double pole switching supports reliable circuit isolation
- Cable shroud helps protect cable entry and improve installation finish
- Surface mount design is straightforward for electricians to install
- Suitable for domestic and light commercial electrical installations
- Trusted Deta / Timeguard circuit protection accessory
- 3-year guarantee for added confidence
Product Specification
- Brand: Deta / Timeguard
- Product Code: CUFMS100
- Product Type: Fused switch unit
- Nominal Current: 100A
- Nominal Voltage: 230V AC
- Frequency: 50Hz
- Switch Type: Double pole
- Installation Type: Surface mounted
- IP Rating: IP20
- Maximum Cable Capacity: 35mm²
- Mounting Centres: 98mm
- Included Fuses: 1 x 100A HRC fuse and 1 x 80A HRC fuse
- Included Accessory: Cable shroud/cover
- Material: Plastic
- Colour: Grey
- Switch Operator Colour: Black
- Device Dimensions: 128mm width x 78mm height x 62mm depth
- Operating Temperature: -10°C to +40°C
- Construction Class: Class I
- Guarantee: 3 years
