Sevadis EVMW40S MaxiCharger Gen2 – DC Compact 50kW - Reliable DC Charging for High Traffic Locations

Sevadis EVMW40S MaxiCharger Gen2 – DC Compact 50kW - Reliable DC Charging for High Traffic Locations

SKU EVMW40S
£14,700.00 - £14,700.00
£14,700.00 inc VAT £12,250.00 exc VAT
£14,700.00 - £14,700.00
£14,700.00 inc VAT £12,250.00 exc VAT inc VAT £12,250.00 exc VAT
Datasheet

Estimated delivery time: Estimated delivery tomorrow*

Description

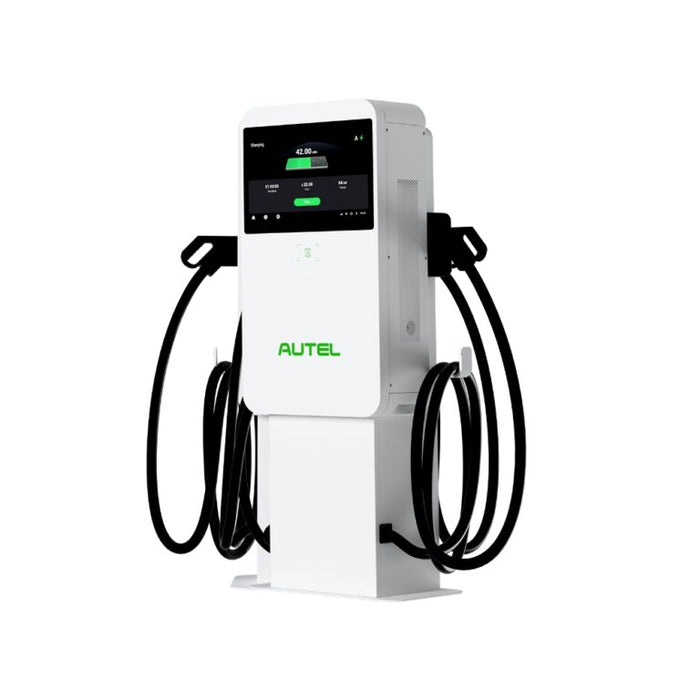

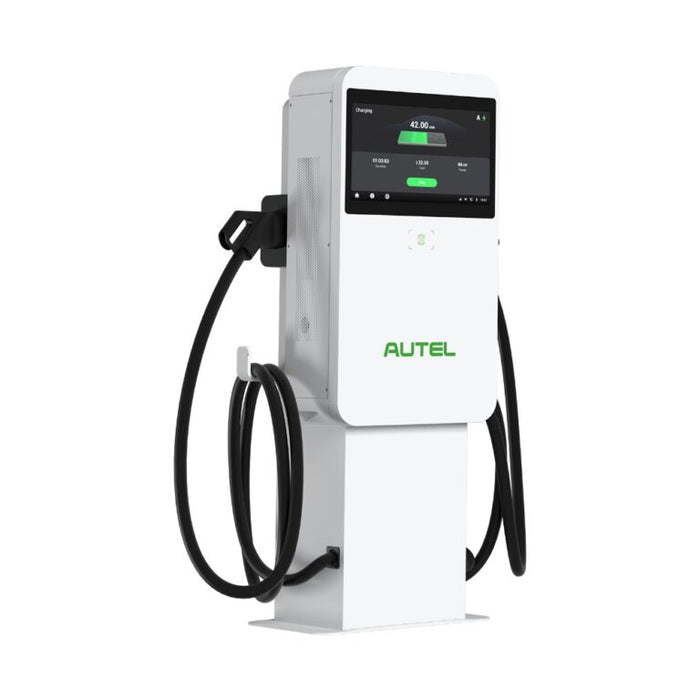

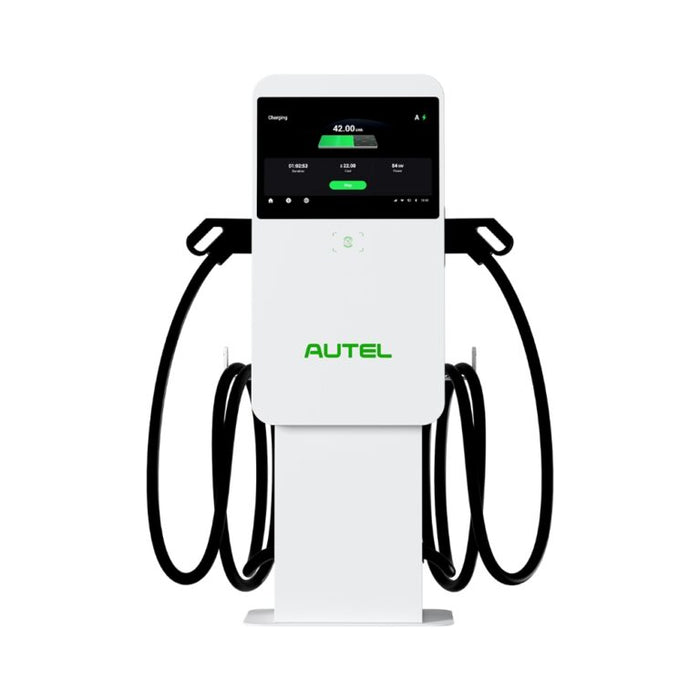

Sevadis MaxiCharger Gen2 DC Compact 50kW Rapid EV Charger – Dual CCS2, RFID & 21.5" Touchscreen

The Sevadis MaxiCharger Gen2 DC Compact 50kW is a powerful, space-efficient DC rapid EV charger designed for public car parks, retail locations, workplaces, commercial premises, hospitality destinations, fleet charging and other high-traffic EV charging environments.

Delivering up to 50kW DC rapid charging, the MaxiCharger DC Compact provides a significant step up from conventional 7kW or 22kW AC charging. It is designed to get drivers back on the road quickly while giving businesses and charge-point operators a robust commercial EV charging solution in a relatively compact footprint.

Sevadis states that approximately 30 minutes of charging can provide up to 130km of driving range, although actual range added will depend on the electric vehicle, battery condition, battery temperature and charging conditions.

With dual CCS2 charging outputs, simultaneous vehicle charging, a large 21.5-inch LCD touchscreen, RFID access, smart connectivity, OCPP integration and MID-approved energy metering, the DC Compact is particularly well suited to modern destination and public EV charging installations.

The biggest advantage of the Sevadis DC Compact 50kW charger is the ability to deliver DC power directly to a compatible electric vehicle's battery.

Unlike a conventional AC EV charger, where the vehicle's onboard charger converts AC electricity to DC, a DC rapid charger performs the conversion within the charging station.

This allows compatible EVs to charge significantly faster.

The current Sevadis specification confirms:

  • 50kW DC power output
  • Mode 4 DC charging
  • CCS2 connection
  • 150–950V DC output voltage
  • Maximum output current of 133A
  • Peak efficiency of 96% or greater
  • Three-phase 400V AC supply requirement

The current charger uses Mode 4 CCS2 charging, one of the most important DC charging standards for modern electric vehicles in the UK and Europe.

CCS2 is widely used across current electric cars and vans, making the Sevadis MaxiCharger DC Compact suitable for a broad range of compatible vehicles.

Sevadis specifically describes the charger as designed to support major EV brands currently on the road.

This makes it relevant for customers searching for:

CCS2 EV charger, CCS rapid charger, 50kW CCS charger, commercial CCS2 charger, public rapid charger and DC fast charging station.



Specification

The Sevadis MaxiCharger Gen2 DC Compact is a 50kW DC rapid EV charger for public, retail, workplace, fleet and destination charging. It features dual CCS2 outputs for simultaneous vehicle charging, a 21.5-inch LCD touchscreen, MID-approved metering, RFID authentication, 4G/Wi-Fi/Ethernet connectivity, OCPP integration, IP54 and IK10 protection and a 150–950V DC output range. Sevadis states it can provide up to approximately 130km of driving range from around 30 minutes of charging, depending on the vehicle and conditions.

FAQ's

What is the Sevadis MaxiCharger Gen2 DC Compact?

The Sevadis MaxiCharger Gen2 DC Compact is a 50kW DC rapid EV charger designed for public, retail, workplace, commercial, fleet and destination charging locations.

How powerful is the Sevadis DC Compact?

The current Sevadis specification gives the charger a 50kW DC output, with a 150–950V output range and maximum output current of 133A.

Is 50kW considered rapid EV charging?

Yes. A 50kW DC charger is generally classed as a rapid charger and provides considerably faster charging than conventional 7.4kW or 22kW AC chargers.

How quickly can a 50kW Sevadis charger charge an EV?

Sevadis states that approximately 30 minutes can provide up to 130km of additional range. Actual charging performance depends on the vehicle, battery state of charge, battery temperature and other conditions.

Does the Sevadis DC Compact use CCS2?

Yes. The current technical specification lists Mode 4 CCS2 DC charging.

Can it charge two cars simultaneously?

Yes. The DC Compact has two CCS2 outputs and supports simultaneous charging of two electric vehicles. Available power is managed by the charging system when both outputs are in use.

Does each CCS2 connector provide 50kW at the same time?

The manufacturer describes the charger as a 50kW unit with dual simultaneous outputs. It should therefore not be marketed as providing 50kW to each vehicle simultaneously unless a specific Sevadis configuration explicitly confirms that capability.

What voltage range does the charger support?

The DC output range is 150V to 950V, helping the charger support a broad range of compatible electric vehicle battery systems.

What is the maximum charging current?

Sevadis specifies a maximum DC output current of 133A.

How efficient is the Sevadis DC Compact?

The charger has a specified peak efficiency of 96% or greater.

Does it require three-phase power?

Yes. The current specification lists a three-phase 400V AC electrical input.

Does the DC Compact have a touchscreen?

Yes. It includes a large 21.5-inch LCD touchscreen.

Can advertising be displayed on the charger?

Yes. Sevadis specifically states that the touchscreen has advertising-display capability, which can be useful for retail and destination charging locations.

Does the charger support RFID?

Yes. RFID-card authentication is supported alongside app-based access.

Does it support card payments?

The Sevadis specification lists credit card and smartphone payment options as part of its commercial charging functionality, subject to the exact charger and payment configuration.

Does the charger have an MID meter?

Yes. Sevadis lists a MID-approved meter, helping support accurate commercial energy measurement.

Does it have OCPP?

Yes. It supports OCPP 1.6J and is specified as upgradeable to OCPP 2.0.1.

Does it have 4G?

Yes. Connectivity includes 4G, Wi-Fi and Ethernet.

Is the charger suitable for outdoor use?

The charger has an IP54 ingress protection rating and IK10 impact rating, making it suitable for appropriately designed commercial outdoor installations.

Is it suitable for retail EV charging?

Yes. Sevadis specifically identifies retail and destination charging as core applications for the 50kW DC Compact.

Is it suitable for fleet charging?

Yes. A 50kW DC rapid charger can be useful for fleets that need to add significant vehicle range during shorter periods rather than relying solely on overnight AC charging.

Is the charger compatible with every electric vehicle?

It is designed for compatible CCS2-equipped electric vehicles. Actual compatibility and maximum charging rate depend on the vehicle's DC charging system.

Is it OZEV approved?

Sevadis currently lists the DC Compact 50kW as OZEV approved.

What warranty does the Sevadis DC Compact 50kW have?

The current manufacturer information specifies a 2-year parts-only warranty as standard, with additional warranty years available separately.
