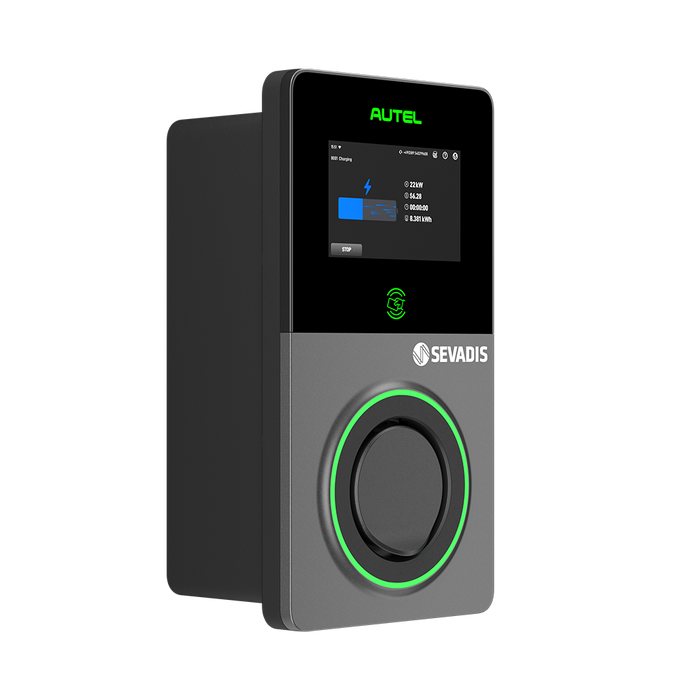

Sevadis EVASEVLCD MaxiCharger Gen2 – Smart LCD AC 22kW

Sevadis MaxiCharger Gen2 EVASEVLCD 22kW Smart LCD EV Charger – Type 2, 4G, MID Meter & RFID

The Sevadis MaxiCharger Gen2 EVASEVLCD 22kW Smart LCD EV Charger is a premium three-phase electric vehicle charging point designed for workplaces, shared residential developments, commercial premises, fleets, apartment parking and managed EV charging locations.

Delivering up to 22kW AC charging, the EVASEVLCD combines a full-colour LCD touchscreen, universal Type 2 socket, integrated MID-approved energy meter, RFID authentication, 4G, Wi-Fi, Bluetooth, Ethernet, OCPP connectivity, dynamic load balancing, solar integration and built-in PEN protection in one compact smart EV charger.

Sevadis specifically positions the MaxiCharger Gen2 Smart LCD AC 22kW for shared, semi-public, workplace and commercial charging applications where drivers need a clear user interface and operators require accurate energy monitoring and intelligent charger management.

22kW Three-Phase EV Charging

The Sevadis EVASEVLCD provides high-performance AC charging for suitable three-phase installations.

The current Sevadis specification lists:

• 22kW maximum AC charging
• 11kW / 22kW three-phase operation
• 7.4kW single-phase operation
• Three-phase input: 400V
• Single-phase input: 230V
• Up to 32A
• Mode 3 charging
• Universal Type 2 socket
• 50Hz operation

When connected to a suitable three-phase electrical supply and an electric vehicle capable of accepting 22kW AC, the charger can provide significantly faster charging than a typical 7.4kW domestic charge point.

This makes it highly relevant for customers searching for a 22kW EV charger, three-phase EV charger, workplace EV charger, commercial EV charging point, 32A EV charger or Type 2 22kW charger.

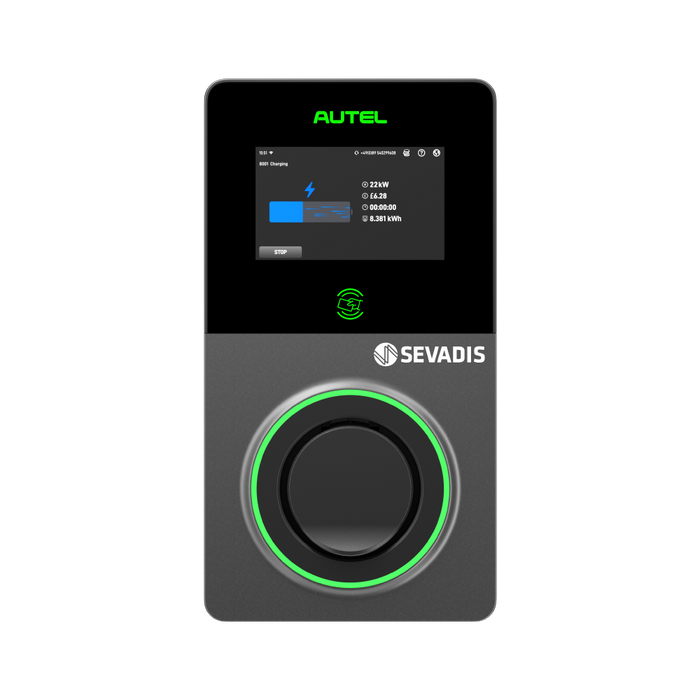

Full-Colour LCD Touchscreen

One of the biggest differences between the EVASEVLCD and the standard Sevadis Digital version is its full-colour LCD touchscreen interface.

The display gives EV drivers clear on-screen charging information, creating a more intuitive charging experience at shared and commercial charging locations. Sevadis describes the LCD model as providing a premium user experience with complete charging visibility for drivers.

The touchscreen makes the charger particularly suitable for:

• Workplace EV charging
• Commercial car parks
• Apartment developments
• Shared residential parking
• Fleet charging
• Business premises
• Employee EV charging
• Visitor EV charging
• Hotels and leisure facilities
• Retail locations
• Semi-public EV charging
• Managed charging networks

LCD Screen Advertising Opportunities

The full-colour LCD screen can provide more than charging information.

Sevadis specifically highlights the ability for operators to use the charger's screen for on-screen advertising and branded content, creating an additional opportunity for businesses at locations where drivers remain near the charger while their vehicle charges.

This could make the EVASEVLCD particularly attractive for:

• Retail parks
• Hotels
• Leisure centres
• Shopping destinations
• Business parks
• Visitor attractions
• Commercial car parks
• Hospitality sites

For commercial locations, the EV charger can therefore become both charging infrastructure and a customer-facing digital touchpoint.

Integrated MID-Approved Energy Meter

The Sevadis EVASEVLCD includes a built-in MID-approved meter with approximately ±1% metering accuracy.

Accurate energy metering is particularly important where several people use the same EV charging infrastructure.

It can help support:

• Employee EV charging
• Tenant charging
• Fleet charging
• Energy reporting
• Electricity usage monitoring
• Charging cost allocation
• Commercial billing arrangements
• Multi-user charging infrastructure

This makes the product especially relevant to searches for a 22kW EV charger with MID meter, commercial metered EV charger, workplace EV charger for billing or smart EV charger with energy monitoring.

RFID Tap & Charge

The MaxiCharger Gen2 Smart LCD supports RFID authentication, allowing authorised users to tap an RFID card to access charging.

Sevadis also specifies:

• RFID
• Mobile app
• Plug & Charge
• Autocharge

as supported user-authentication methods.

RFID access is particularly useful for workplace and communal charging installations because operators can control who is authorised to use the charger.

For example, businesses can provide RFID access to employees while residential developments can provide individual access to residents.

4G, Wi-Fi, Ethernet & Bluetooth Connectivity

The EVASEVLCD is designed as a fully connected smart EV charger.

Connectivity options include:

• 4G
• Wi-Fi
• Bluetooth
• Ethernet
• RS-485
• Wi-SUN

Having multiple communication options is particularly useful for commercial installations.

Rather than relying entirely on a customer's Wi-Fi network, installers and charge-point operators can choose a communication method appropriate for the site.

The inclusion of 4G connectivity is especially useful for car parks, apartment developments, industrial locations and workplace sites where a stable building Wi-Fi connection may not be available at the charger.

Triple-Backup Connectivity

Sevadis' Gen2 ecosystem also highlights Ethernet, Wi-Fi and cellular internet connectivity as part of its approach to reliable site-wide communication.

For businesses operating multiple chargers, maintaining charger connectivity is important for remote monitoring, billing, access management and charge-point operation.

OCPP 1.6J & OCPP 2.0.1

The Sevadis EVASEVLCD supports both OCPP 1.6J and OCPP 2.0.1 communication protocols.

OCPP compatibility allows the charger to communicate with compatible EV charging back-office and charge-point management platforms.

Depending on the software platform used, this can allow operators to manage:

• Charger status
• Users
• RFID access
• Charging sessions
• Energy consumption
• Billing structures
• Charging rules
• Multiple chargers
• Multiple charging sites
• Performance monitoring
• Costs
• On-screen advertising

Sevadis specifically describes its management ecosystem as allowing asset controllers to manage settings, billing structures, user permissions, charging rules, screen advertising, energy usage, performance and costs across a charging network.

For customers looking for a 22kW OCPP EV charger, the EVASEVLCD provides an excellent platform for scalable commercial EV charging infrastructure.

Dynamic Load Balancing

The MaxiCharger Gen2 Smart LCD supports integrated static load management and dynamic load balancing.

Dynamic load balancing helps manage how much electrical power the EV charger draws according to the available capacity of the electrical installation.

This becomes particularly important when installing several 22kW commercial EV chargers on the same site.

Instead of every charger drawing maximum power regardless of other electrical loads, intelligent load management can help optimise charging while protecting the site's available electrical capacity.

This makes the EVASEVLCD particularly attractive for:

• Workplace charger networks
• Fleet charging
• Apartment developments
• Commercial car parks
• Multi-charger installations
• Industrial sites
• Business parks

Phase Balancing for Three-Phase Installations

The LCD model also supports phase balancing, providing additional energy-management capability for suitable three-phase charging installations.

This can be valuable on larger sites where electrical demand needs to be distributed efficiently between phases.

Solar Compatible 22kW EV Charger

The MaxiCharger Gen2 Smart LCD supports solar power integration, allowing EV charging to form part of a wider renewable-energy installation.

For businesses and developments already using solar PV panels, this provides an opportunity to combine on-site renewable energy generation with electric vehicle charging.

This makes the product highly relevant to customers looking for:

• 22kW solar compatible EV charger
• Commercial solar EV charger
• Solar PV EV charging point
• Workplace solar EV charging
• Renewable energy EV charger
• Three-phase solar EV charger
• Smart energy EV charging system

As businesses increasingly combine solar PV, battery storage and EV charging, smart energy-management features become particularly valuable.

Built-In PEN / PME Fault Protection

The EVASEVLCD has PME fault detection and PEN protection incorporated within the charging unit.

The charger also incorporates:

• 30mA AC ground fault detection
• 6mA DC ground fault detection
• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Integrated surge protection
• Built-in PME / PEN fault detection

These integrated electrical protection features make the charger a practical option for professional EV charge-point installations.

Type 2 Socket – Untethered EV Charger

The Sevadis EVASEVLCD uses a universal Type 2 socket, making it an untethered EV charger.

Drivers connect their own compatible Type 2 charging cable between the charging point and electric vehicle.

A socketed charger can be especially useful in shared environments because the same charging unit can be used by different EV drivers without a permanently attached charging cable.

IP54 & IK10 Protection

The MaxiCharger Gen2 Smart LCD has an IP54 enclosure rating and IK10 impact rating.

The IK10 rating provides strong impact resistance, an important consideration for chargers installed in commercial car parks, shared residential environments and busy workplace locations.

The charger is specified for operating temperatures between approximately -30°C and +50°C and installation altitudes up to 2,000 metres.

Compact Wall-Mounted Design

Despite its advanced LCD screen and smart functionality, the EVASEVLCD remains relatively compact.

Dimensions are approximately:

• 315mm high
• 170mm wide
• 117mm deep
• Weight approximately 3.20kg

Its black and grey finish gives the charger a modern, professional appearance suitable for commercial and residential developments.

Smart EV Charger for Workplace Charging

The Sevadis MaxiCharger Gen2 EVASEVLCD is particularly well suited to workplace EV charging.

Businesses increasingly need to provide charging for:

• Employees
• Company cars
• Visitors
• Electric vans
• Fleet vehicles
• Customers

The combination of 22kW charging, RFID access, MID metering, OCPP connectivity, LCD touchscreen and dynamic load balancing makes the EVASEVLCD much better suited to managed workplace charging than a basic standalone domestic charger.

Ideal for Shared Residential & Apartment EV Charging

The charger is also designed for shared residential developments.

Apartment charging can create additional challenges because several residents may need access to chargers while energy usage must be monitored accurately.

Features such as RFID identification, MID metering, OCPP management and load balancing allow the EVASEVLCD to become part of a scalable communal charging infrastructure.

This makes it suitable for:

• Apartment blocks
• New-build housing developments
• Residential car parks
• Build-to-rent developments
• Landlord EV charging
• Communal parking areas

Commercial & Fleet EV Charging

Businesses operating electric vehicle fleets need chargers that can be managed as part of a larger charging network.

The EVASEVLCD 22kW commercial EV charger combines high-power AC charging with user authentication, accurate energy metering, OCPP and intelligent load management.

This makes it suitable for:

• Company car fleets
• Electric van fleets
• Delivery vehicles
• Service vehicles
• Fleet depots
• Business vehicle charging
• Industrial sites
• Logistics premises

OZEV Grant Approved

Sevadis lists the MaxiCharger Gen2 Smart LCD AC 22kW as OZEV grant approved.

Eligibility for a particular UK grant still depends on the current OZEV scheme, applicant, property and installation circumstances.

3-Year Warranty

The Sevadis EVASEVLCD is supplied with a 3-year warranty, with additional warranty years available separately according to the current manufacturer datasheet.

For customers looking for a premium 22kW commercial EV charger with LCD touchscreen, 4G connectivity, MID metering, RFID, OCPP, solar integration and dynamic load balancing, the Sevadis MaxiCharger Gen2 EVASEVLCD provides an advanced solution for modern workplace, commercial and shared EV charging installations.
