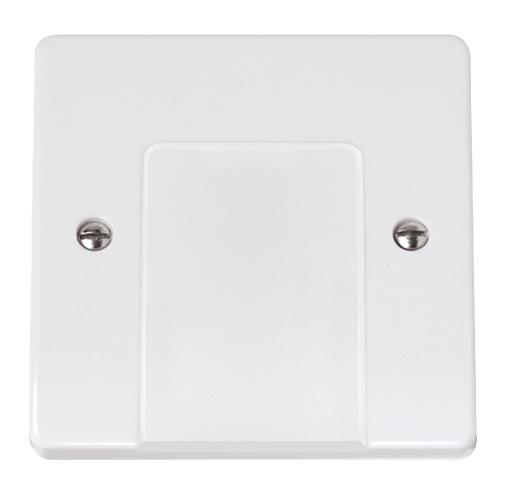

Click Scolmore Mode CMA017 20A Flex Outlet Plate

Click Scolmore Mode CMA017 20A Flex Outlet Plate

SKU CMA017
£1.37 - £1.37
£1.37 inc VAT £1.14 exc VAT
£1.37 - £1.37
£1.37 inc VAT £1.14 exc VAT inc VAT £1.14 exc VAT
Availability:
97 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The Scolmore CMA017 20A Flex Outlet Plate is a robust and hygienic solution for fixed appliance connections. Designed with twin Live, Neutral, and CPC terminals, it offers front or bottom flex outlet options for versatile installation. The smooth polar white moulded finish complements any interior, while the antiviral and antibacterial certified urea formaldehyde construction ensures enhanced hygiene. With a 20A rating, IP20 ingress protection, and BS 5733 compliance, this plate is ideal for residential, commercial, and healthcare environments. It fits a minimum 16mm back box and supports 3 x 2.5mm² or 2 x 4mm² cables.

Specification
  • Anti Microbial Certified Yes
  • Operating Voltage (AC) 250 Frequency (Hz) 50
  • Resistive Load Rating (A) 20
  • Termination Type Screw
  • Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.8
  • Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
  • Twin Earth Terminals Yes
  • Flex Outlet Available Yes
  • Flex Outlet Location Front & Bottom of
  • Plate Flex Outlet Dimension (mm) Ø10
  • Minimum Back Box Depth (mm) 16Ingress Protection IP20
  • Operational Temperature (°C) -5 to +40
    Warranty (Years) 25
  • Plate Fixing Centres - Horizontal (mm) 60.3
Product Dimensions

86 (W) x 86 (H) x 9.5 (D)
