Scolmore Click Mode CMA022 1G DP 20A Switch C/W Flex Outlet

SKU CMA022
Original price £2.40 - Original price £2.40
Original price
£2.40 inc VAT £2.00 exc VAT
£2.40 - £2.40
Current price £2.40 inc VAT £2.00 exc VAT inc VAT £2.00 exc VAT
Availability:
Only 5 left!

Estimated delivery time: Next working day

Description

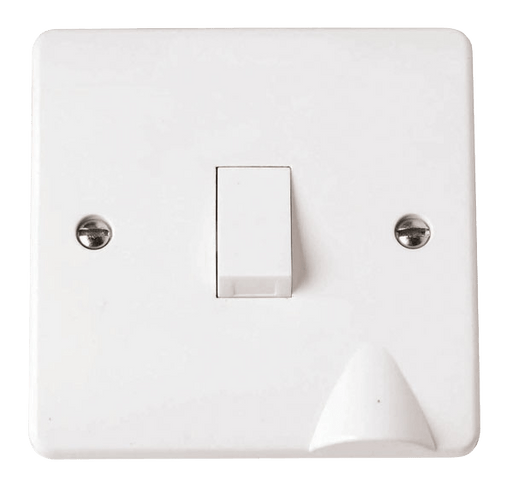

The Scolmore CMA022 20A Double Pole Plate Switch with Optional Flex Outlet is a high-performance solution for isolating fixed appliances such as extractor fans, water heaters, and more. Designed with a smooth polar white moulded finish, it features double pole switching for enhanced safety and a bottom-mounted flex outlet for versatile cable management. Manufactured from antiviral and antibacterial certified urea formaldehyde, it’s ideal for hygiene-sensitive environments. With a 20A rating, IP20 ingress protection, and BS EN 60669-1 compliance, this switch fits a 25mm back box and supports 3 x 2.5mm² terminal capacity, making it a reliable choice for residential and commercial installations.

Specification
  • Anti Microbial Certified Yes
  • Operating Voltage (AC) 250 Frequency (Hz) 50
  • Resistive Load Rating (A) 20
  • Termination Type Screw
  • Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.8
  • Terminal Capacity - Solid (mm²) 3 x 2.5
  • Double Pole Switch Yes
  • Twin Earth Terminals Yes
  • Flex Outlet Available Yes
  • Flex Outlet Location Bottom of Plate Flex Outlet
  • Dimension (mm) Ø10
  • Minimum Back Box Depth (mm) 25
  • Ingress Protection IP20
  • Operational Temperature (°C) -5 to +40
  • Warranty (Years) 25

Datasheet

Product Dimensions

86 (W) x 86 (H) x 9.5 (D)
