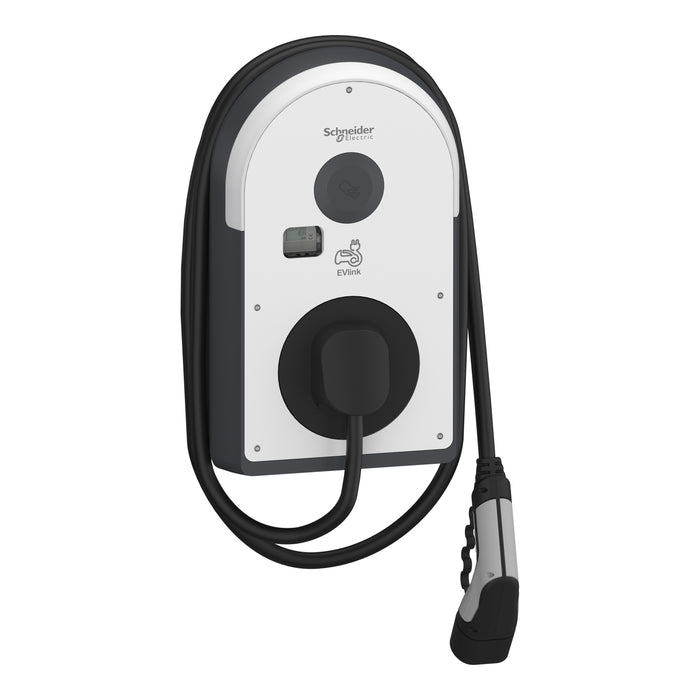

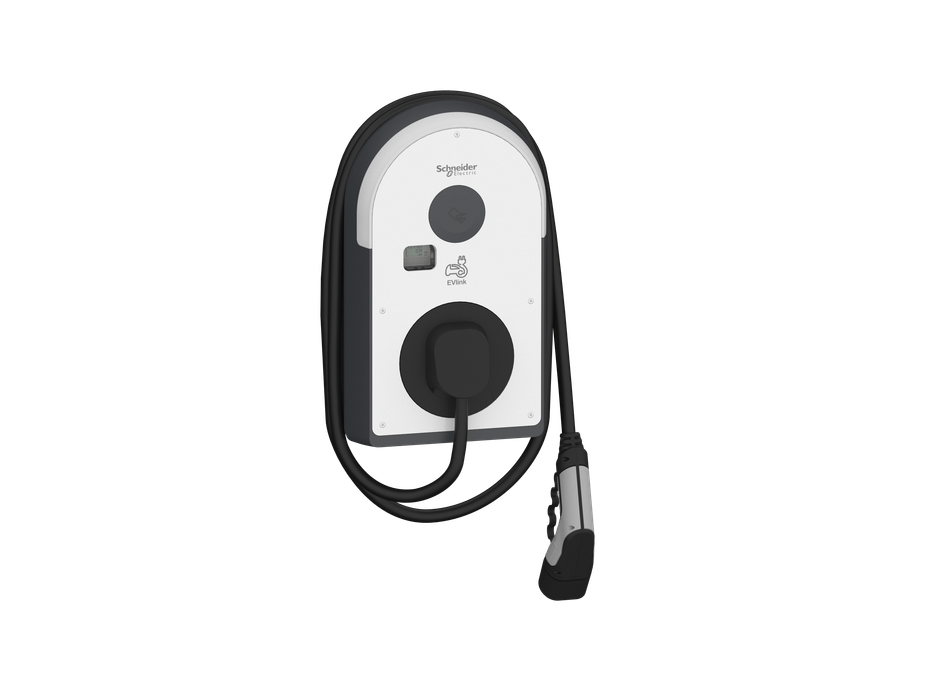

Schneider EVB3S22NC0M EVlink Pro AC 22kW 32A 3-Phase Type 2 EV Charger with MID Meter

The Schneider Electric EVB3S22NC0M EVlink Pro AC is a professional 22kW electric vehicle charging station designed for high-performance AC charging in commercial, workplace, fleet, residential and semi-public EV charging installations. Featuring a 32A three-phase supply, permanently attached 5m Type 2 charging cable and integrated MID energy meter, the EVB3S22NC0M provides a complete and flexible charging solution for modern electric vehicles.

The EVB3S22NC0M is part of Schneider Electric's professional EVlink Pro AC range and can deliver up to 22kW at 32A across a 3-phase 380–415V AC supply. The integrated Type 2 cable provides a convenient tethered charging solution without requiring the user to carry a separate charging cable. Schneider's documentation specifies a 5m attached Type 2 cable with silver-plated contacts.

22kW 3-Phase EV Charging

With a maximum output of 22kW at 32A, the Schneider EVB3S22NC0M is designed for installations with a suitable three-phase electrical supply. Three-phase 22kW AC charging can provide significantly faster charging than standard 7.4kW single-phase EV chargers, although the actual charging rate is dependent on the vehicle's onboard AC charger and the electrical installation.

The Type 2 Mode 3 charging cable is permanently attached to the charger and measures 5 metres, making the EVB3S22NC0M particularly convenient for workplace car parks, commercial premises, fleet depots and other locations where a tethered charging solution is preferred.

Integrated MID Energy Meter

A major advantage of the EVB3S22NC0M is its integrated MID-certified energy meter. The charger includes an integrated MID meter with Class 1 energy measurement, making it particularly suitable for applications where accurate electricity consumption measurement, monitoring and billing are required.

This makes the EVB3S22NC0M an excellent choice for workplace EV charging, commercial EV charging, fleet charging, managed car parks and semi-public charging installations where energy usage needs to be measured accurately.

Integrated 6mA RDC-DD Protection

The EVB3S22NC0M incorporates a 6mA DC residual-current detection device (RDC-DD) specifically designed for EV charging applications. This provides DC leakage-current detection and is designed to work with appropriate upstream protection as specified by the installation requirements.

The Schneider EVlink Pro AC platform is designed to provide dedicated EV charging protection while helping installers develop a suitable electrical protection arrangement for the installation. Always follow Schneider Electric's installation instructions and applicable UK requirements.

5m Type 2 Tethered Charging Cable

Unlike untethered EV chargers that require the customer to provide a separate Type 2 cable, the EVB3S22NC0M includes a permanently attached 5m Type 2 charging cable.

This makes the charger particularly suitable for commercial and workplace environments where ease of use is important. The Type 2 connector uses silver-plated contacts, with Schneider documentation specifying the attached cable as 5m in length.

IP55 and IK10 Protection

The EVlink Pro AC EVB3S22NC0M is built for demanding charging environments and features IP55 ingress protection and IK10 impact protection.

It is suitable for appropriate indoor and outdoor installations and can be wall mounted or installed using compatible pedestal or enclosure options. Schneider specifies an operating temperature range of approximately -30°C to +50°C for the EVlink Pro AC platform.

Smart EV Charging with OCPP 1.6

The EVB3S22NC0M is designed as a connected, professional EV charging station rather than a basic standalone wallbox.

It supports OCPP 1.6, Ethernet, Bluetooth and Modbus TCP, with optional 3G/4G connectivity. Available functions include load management, diagnostics and charging detail records, making the charger suitable for integration into managed EV charging networks.

RFID and NFC Access Control

The EVB3S22NC0M supports access control using RFID and NFC technology, while free-access operation is also available depending on configuration.

This provides flexibility for businesses and organisations that want to control who can use the EV charging station, record charging activity or integrate the charger into a managed charging environment. Schneider documentation lists compatibility with RFID technologies including MIFARE Classic, MIFARE Ultralight and MIFARE Plus.

Flexible Installation

The Schneider EVB3S22NC0M can be installed in a range of environments. Mounting options include:

• Wall mounting
• Wall mounting using a kit enclosure
• Floor-standing pedestal installation
• Floor-standing installation using a kit enclosure

The pedestal and enclosure options are ordered separately. Cable entry can be configured from the bottom, top or rear to suit the installation.

Ideal Applications

The Schneider EVB3S22NC0M is particularly suited to:

• Workplace EV charging
• Commercial EV charging
• Fleet charging
• Business car parks
• Office developments
• Apartment and residential developments
• Semi-public EV charging
• Managed car parks
• Hospitality venues
• Customer and visitor charging
• Fleet depots
• Commercial property developments

Key Features

• Schneider Electric EVlink Pro AC
• Product reference: EVB3S22NC0M
• 22kW maximum AC charging power
• 32A three-phase charging
• 380–415V AC supply
• 3P + N
• 5m permanently attached Type 2 charging cable
• Mode 3 charging
• Integrated MID-certified energy meter
• Class 1 energy measurement
• Integrated 6mA RDC-DD
• IP55 ingress protection
• IK10 impact protection
• OCPP 1.6
• Ethernet connectivity
• Bluetooth connectivity
• Modbus TCP
• Optional 3G/4G connectivity
• RFID/NFC access control
• Load management
• Charging detail records
• Diagnostics capability
• eSetup commissioning
• Wall or pedestal installation options
• Suitable for indoor and outdoor applications
• Professional commercial EV charging solution

Why Choose the Schneider EVB3S22NC0M?

The Schneider EVB3S22NC0M combines high-power 22kW three-phase AC charging with a permanently attached 5m Type 2 cable and integrated MID energy metering.

Its combination of 22kW output, 32A 3-phase charging, MID measurement, 6mA RDC-DD protection, OCPP 1.6, RFID/NFC access control, load management, IP55 and IK10 protection makes it particularly well suited to professional EV charging installations.

For businesses looking for a 22kW commercial EV charger with MID metering and a tethered Type 2 cable, the EVB3S22NC0M provides a comprehensive EV charging solution from Schneider Electric.

Installation and commissioning should be carried out by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.
