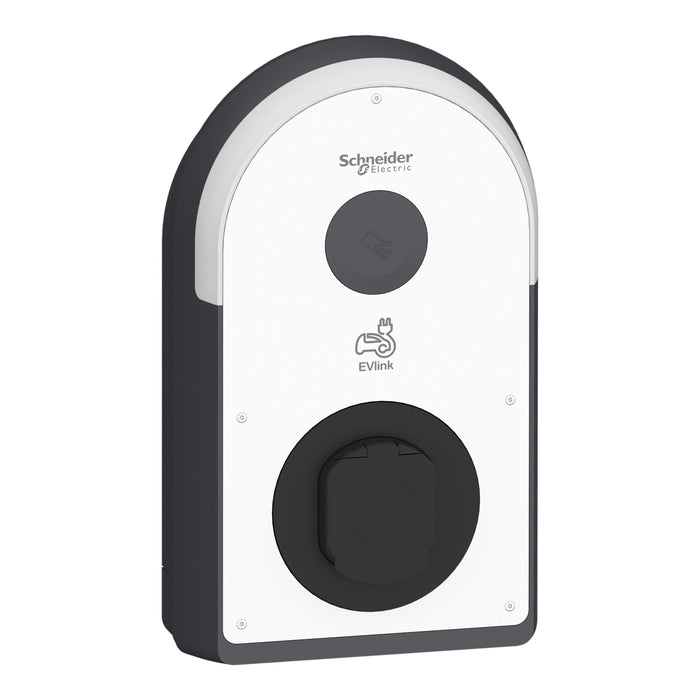

Schneider EVB3S22N4B EVlink Pro AC 22kW 32A 3-Phase Type 2 EV Charger

The Schneider Electric EVB3S22N4B EVlink Pro AC is a professional 22kW electric vehicle charging station designed for high-performance AC charging in commercial, workplace, fleet, residential and semi-public EV charging environments. Featuring a 32A three-phase supply, Type 2 socket outlet and integrated Type B-EV RCD protection, the EVB3S22N4B provides a robust and flexible EV charging solution for modern electric vehicles.

Part of Schneider Electric's professional EVlink Pro AC range, the EVB3S22N4B delivers up to 22kW AC charging power at 32A using a 3-phase + neutral supply. The Type 2 socket outlet provides an untethered charging solution, allowing a compatible Mode 3 Type 2 charging cable to be connected according to the vehicle and installation requirements.

22kW 3-Phase EV Charging

The EVB3S22N4B is a high-power 22kW three-phase EV charger designed for installations with a suitable three-phase electrical supply.

With a maximum charging current of 32A, the charger can provide up to 22kW of AC charging power. The actual charging rate depends on the vehicle's onboard AC charger, charging cable and available electrical supply.

For compatible vehicles capable of accepting 22kW AC charging, this can provide considerably faster charging than a conventional 7.4kW single-phase EV charger.

Untethered Type 2 EV Charger

The Schneider EVB3S22N4B features a Type 2 socket outlet, making it an untethered EV charger.

A compatible Type 2 Mode 3 charging cable can be connected when required. The socket configuration provides flexibility for commercial, workplace and fleet charging applications where users may have their own charging cables or where different cable lengths are required.

The charging cable is not permanently attached to the EVB3S22N4B.

Integrated Type B-EV RCD Protection

One of the most important features of the EVB3S22N4B is its integrated Type B-EV residual current device (RCD).

Schneider Electric specifically identifies this model as the EVlink Pro AC 22kW, 32A, 3-phase, Type 2 socket version with RCD B-EV and MNx auxiliary.

The Type B-EV RCD configuration differentiates the EVB3S22N4B from other EVlink Pro AC variants, including models using Type A-SI RCD protection or 6mA RDC-DD configurations.

The electrical protection arrangement must always be assessed and installed in accordance with Schneider Electric's instructions and applicable UK requirements by a suitably qualified electrical installer.

Professional EV Charging Platform

The EVB3S22N4B is designed as a connected professional EV charging station rather than a basic standalone wallbox.

The EVlink Pro AC platform supports OCPP 1.6 JSON, Ethernet and Bluetooth connectivity, with Modbus TCP and optional 3G/4G communication available.

This allows the charger to be integrated into compatible EV charging management systems and wider energy management solutions. Available functionality includes load management, charging data and diagnostics.

IP55 and IK10 Protection

The EVB3S22N4B is designed for demanding EV charging environments and provides IP55 ingress protection and IK10 impact protection.

This robust construction makes it suitable for appropriate indoor and outdoor EV charging installations when installed correctly. Schneider Electric describes the EVlink Pro AC platform as flexible, modular and low maintenance.

Future-Ready Connectivity

The EVlink Pro AC platform is designed to accommodate future charging requirements. Schneider Electric states that the platform can be upgraded with 4G, Wi-Fi and ISO 15118 communication modules.

The charger can also be commissioned using Schneider Electric's eSetup app, helping qualified installers configure the EV charging station efficiently.

Flexible Type 2 Charging

The Type 2 socket configuration allows the EVB3S22N4B to work with compatible Mode 3 Type 2 charging cables.

This makes it particularly useful in shared charging environments where multiple users may need to connect different vehicles. A separate Type 2 charging cable is required.

Ideal Applications

The Schneider EVB3S22N4B is particularly suited to:

• Workplace EV charging
• Commercial EV charging
• Fleet charging
• Business car parks
• Office developments
• Apartment developments
• Managed parking facilities
• Customer and visitor charging
• Hospitality venues
• Fleet depots
• Commercial property developments
• Semi-public EV charging installations

Key Features

• Schneider Electric EVlink Pro AC
• Product reference: EVB3S22N4B
• 22kW maximum AC charging power
• 32A three-phase charging
• 380–415V AC supply
• 3P + N
• Type 2 socket outlet
• Untethered EV charging
• Compatible with Mode 3 Type 2 charging cables
• Integrated Type B-EV RCD
• MNx auxiliary contact
• IP55 ingress protection
• IK10 impact protection
• OCPP 1.6 JSON
• Ethernet connectivity
• Bluetooth connectivity
• Modbus TCP
• Optional 3G/4G connectivity
• Upgradeable with Wi-Fi
• Upgradeable with ISO 15118
• Load management capabilities
• Charging data and diagnostics
• eSetup commissioning
• Wall and pedestal installation options
• Suitable for indoor and outdoor applications
• Professional commercial EV charging solution

Why Choose the Schneider EVB3S22N4B?

The Schneider EVB3S22N4B is an excellent choice where a professional 22kW three-phase Type 2 EV charger with integrated Type B-EV RCD protection is required.

Its combination of 22kW output, 32A three-phase charging, untethered Type 2 socket, Type B-EV RCD, OCPP 1.6 connectivity, load management, IP55 and IK10 protection makes it suitable for demanding workplace, commercial and fleet EV charging installations.

The EVB3S22N4B is particularly useful where a Type B-EV RCD-equipped EV charger is preferred as part of the electrical protection strategy.

This model does not include an integrated MID energy meter. Schneider Electric lists separate EVlink Pro AC variants for applications requiring MID metering.

Installation and commissioning should be carried out by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.
