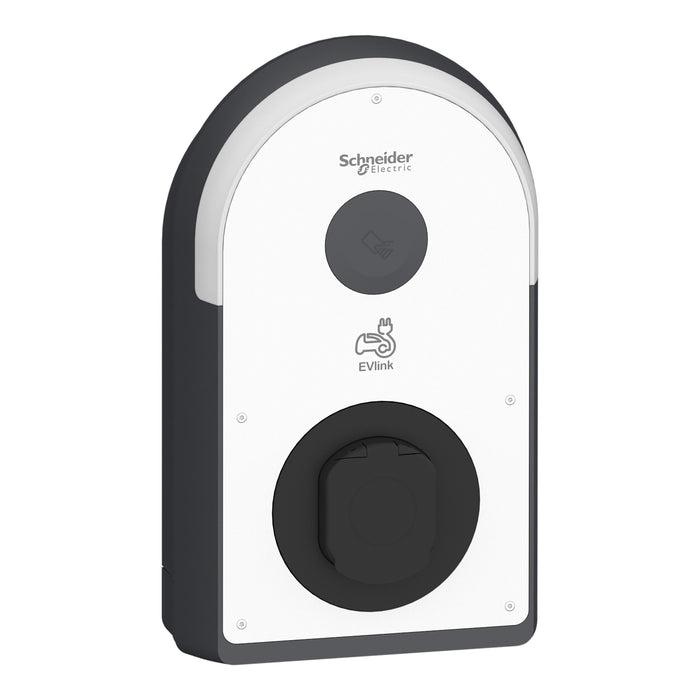

Schneider EVB3S22N4A EVlink Pro AC 22kW 32A 3-Phase Type 2 EV Charger

The Schneider Electric EVB3S22N4A EVlink Pro AC is a professional 22kW electric vehicle charging station designed for high-performance AC charging across commercial, workplace, fleet, residential and semi-public EV charging installations. Featuring a 32A three-phase supply, Type 2 socket outlet, integrated 6mA RDC-DD and 30mA Type A-SI RCD, the EVB3S22N4A provides a robust and flexible charging solution for modern electric vehicles.

Part of Schneider Electric's professional EVlink Pro AC range, the EVB3S22N4A delivers up to 22kW of AC charging power at 32A using a 3-phase 380–415V supply. The untethered Type 2 socket allows users to connect a compatible Mode 3 Type 2 charging cable, providing flexibility over cable length and charging requirements.

22kW 3-Phase EV Charging

The EVB3S22N4A is a high-power 22kW three-phase EV charger, making it suitable for installations with an appropriate three-phase electrical supply.

At 32A across three phases, the charger can deliver up to 22kW of AC charging power. However, the actual charging speed is determined by the vehicle's onboard AC charger, the charging cable and the electrical installation.

For vehicles capable of accepting 22kW AC charging, the EVB3S22N4A can provide substantially faster charging than a conventional 7.4kW single-phase EV charger.

Untethered Type 2 EV Charger

The EVB3S22N4A features a Type 2 socket outlet with shutter, making it an untethered EV charging station.

Unlike a tethered EV charger with a permanently attached cable, the socket design allows the user to connect a compatible Type 2 Mode 3 charging cable. This provides greater flexibility for workplace, fleet and commercial charging installations where different cable lengths or user-owned charging cables may be required.

Integrated RCD and RDC-DD Protection

One of the key differences between the EVB3S22N4A and EVB3S22N4 is its integrated residual-current protection.

The EVB3S22N4A incorporates a 6mA RDC-DD together with an integrated 30mA Type A-SI RCD. It also includes an MNx auxiliary contact. Schneider Electric specifically identifies the EVB3S22N4A as the 22kW, 32A, 3-phase Type 2 socket model with 6mA RDC-DD, 30mA Type A-SI RCD and MNx auxiliary.

The integrated Type A-SI protection is designed to provide enhanced immunity against unwanted tripping in suitable electrical installations. Installation requirements should always be assessed by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.

IP55 and IK10 Protection

Designed for demanding EV charging environments, the EVB3S22N4A provides IP55 ingress protection and IK10 impact protection.

This makes the EVlink Pro AC suitable for appropriate indoor and outdoor applications when correctly installed. Schneider Electric describes the EVlink Pro AC platform as robust, modular, flexible and designed for low-maintenance operation.

Smart EV Charging and OCPP 1.6

The EVB3S22N4A is designed as a connected professional EV charging station rather than a basic standalone wallbox.

The EVlink Pro AC platform supports OCPP 1.6 JSON, Ethernet, Bluetooth and Modbus TCP, with optional 3G/4G connectivity. Available functions include load management, charging detail records and diagnostics, allowing the charger to be incorporated into compatible managed EV charging systems.

The platform can also be upgraded with 4G, Wi-Fi and ISO 15118 modules, helping provide additional flexibility as EV charging requirements develop.

Easy Commissioning

Schneider Electric has designed the EVlink Pro AC range to simplify installation and commissioning for qualified installers.

The EVB3S22N4A can be commissioned using Schneider Electric's eSetup app, providing a convenient way to configure the charging station and connected functions.

No Integrated MID Meter

The EVB3S22N4A does not include an integrated MID energy meter.

This is an important distinction when comparing Schneider EVlink Pro AC models. The EVB3S22N4A provides the 22kW, 32A, 3-phase Type 2 socket configuration with 6mA RDC-DD and 30mA Type A-SI RCD, whereas Schneider's EVB3S22N40M is the corresponding 22kW Type 2 socket version with an integrated MID meter.

Ideal Applications

The Schneider EVB3S22N4A is particularly suitable for:

• Workplace EV charging
• Commercial EV charging
• Fleet charging
• Business car parks
• Office developments
• Apartment developments
• Managed parking facilities
• Customer and visitor charging
• Hospitality venues
• Fleet depots
• Commercial property developments
• Semi-public EV charging installations

Key Features

• Schneider Electric EVlink Pro AC
• Product reference: EVB3S22N4A
• 22kW maximum AC charging power
• 32A three-phase charging
• 380–415V AC supply
• 3P + N
• Type 2 socket outlet with shutter
• Untethered EV charging
• Compatible with Mode 3 Type 2 charging cables
• 6mA RDC-DD
• 30mA Type A-SI RCD
• MNx auxiliary contact
• IP55 ingress protection
• IK10 impact protection
• OCPP 1.6 JSON
• Ethernet connectivity
• Bluetooth connectivity
• Modbus TCP
• Optional 3G/4G connectivity
• Upgradeable with Wi-Fi
• Upgradeable with ISO 15118
• Load management capabilities
• Charging detail records
• Diagnostic capabilities
• eSetup commissioning
• Wall and pedestal installation options
• Suitable for indoor and outdoor applications
• Professional commercial EV charging solution

Why Choose the Schneider EVB3S22N4A?

The Schneider EVB3S22N4A is an excellent choice where a professional 22kW three-phase Type 2 EV charger with integrated RCD protection is required.

Its combination of 22kW output, 32A three-phase charging, untethered Type 2 socket, 6mA RDC-DD, 30mA Type A-SI RCD, OCPP 1.6, load management, IP55 and IK10 protection makes it suitable for demanding workplace, commercial and fleet charging installations.

For customers looking for a 22kW Type 2 EV charger with integrated 30mA Type A-SI RCD protection, the EVB3S22N4A offers a professional EV charging solution from Schneider Electric.

Installation and commissioning should be carried out by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.
