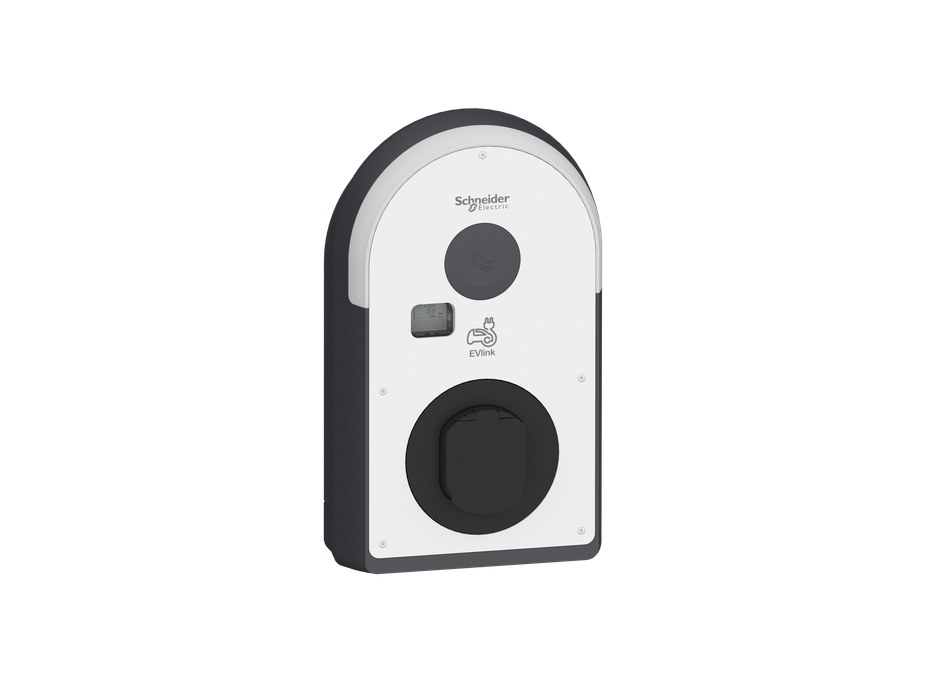

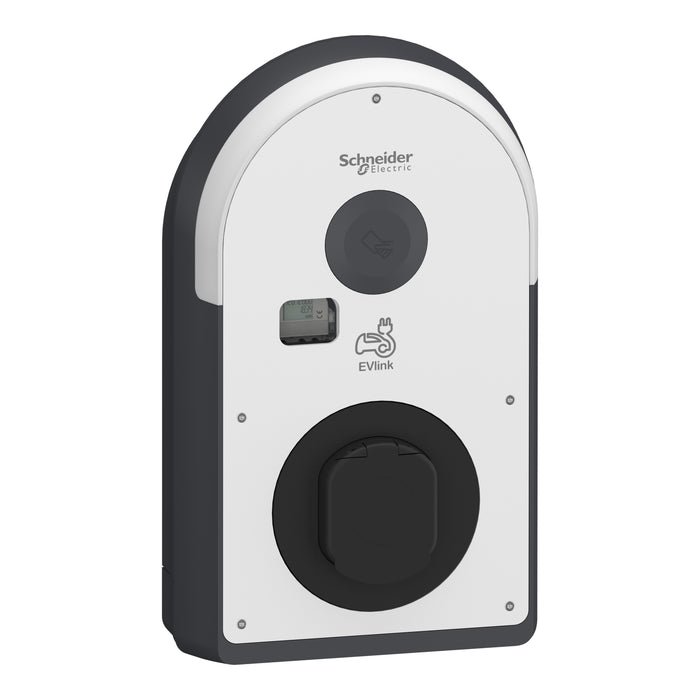

Schneider EVB3S22N40MR EVlink Pro AC 22kW 32A 3-Phase Type 2 EV Charger with MID Meter

The Schneider Electric EVB3S22N40MR EVlink Pro AC is a professional 22kW electric vehicle charging station designed for commercial, workplace, fleet and semi-public EV charging installations. Combining 32A three-phase AC charging, an untethered Type 2 socket, integrated MID metering and Type B-EV RCD protection, it provides a flexible and professional solution for modern electric vehicle charging.

The EVB3S22N40MR is rated at 22kW and 32A on a 3P+N supply, making it suitable for high-power AC charging where the electrical installation and vehicle support three-phase 22kW charging. Schneider identifies this exact model as an EVlink Pro AC Metal charging station with T2S socket-outlet, RCD B-EV, MNx auxiliary and MID meter.

22kW 3-Phase EV Charger

With a maximum output of 22kW at 32A, the EVB3S22N40MR is designed for fast AC charging from a suitable three-phase electrical supply.

The actual charging speed will depend on the electric vehicle's onboard AC charger. A vehicle capable of accepting 22kW AC can make full use of the charger's available output, whereas an EV limited to 11kW AC will charge at a maximum of 11kW.

This makes the EVB3S22N40MR particularly suitable for:

• Commercial EV charging
• Workplace charging
• Fleet charging
• Business premises
• Apartment developments
• Hotels and hospitality
• Commercial car parks
• Managed EV charging installations

Untethered Type 2 EV Charging

The Schneider EVB3S22N40MR features a Type 2 socket outlet with shutter, making it an untethered EV charger.

Unlike a tethered charger with a permanently attached cable, users connect a compatible Mode 3 Type 2 charging cable when charging their vehicle.

This configuration provides flexibility for shared charging environments where different users may require different cable lengths.

A Type 2 charging cable is required separately.

Integrated MID Energy Meter

A major advantage of the EVB3S22N40MR is its integrated MID meter.

MID-compliant metering is particularly useful where electricity consumption needs to be accurately measured for applications such as:

• Employee EV charging
• Workplace charging
• Fleet charging
• Commercial charging
• Tenant billing
• Customer charging
• Managed charging
• Charge point operator installations

Schneider's product information specifically identifies the EVB3S22N40MR as incorporating a MID meter.

The integrated MID meter is one of the key reasons to choose this model over non-MID EVlink Pro AC variants.

Integrated Type B-EV RCD Protection

The EVB3S22N40MR also incorporates an RCD Type B-EV configuration.

This is an important distinction between this model and the EVB3S22N40M. The N40M is specified with a 6mA RDC-DD, whereas the N40MR uses Type B-EV RCD protection. Schneider's official product description identifies the N40MR as T2S socket, RCD B-EV, MNx auxiliary and MID meter.

The complete electrical protection arrangement should always be designed and installed by a suitably qualified installer in accordance with Schneider Electric's installation requirements and applicable UK regulations.

Professional Smart EV Charging

The EVB3S22N40MR belongs to Schneider Electric's professional EVlink Pro AC charging platform.

The platform supports OCPP 1.6 JSON, Ethernet, Bluetooth, Modbus TCP and optional 3G/4G connectivity. Available functions include load management, charging detail records and diagnostic capabilities.

This makes the charger suitable for managed EV charging installations where charging stations need to communicate with charging management and energy management systems.

Future-Ready EV Charging

Schneider describes the EVlink Pro AC platform as future ready, with upgrade options including 4G, Wi-Fi and ISO 15118 modules.

The charger can also be commissioned using Schneider Electric's eSetup app, helping qualified installers configure and commission the EV charging station.

IP55 and IK10 Protection

The EVB3S22N40MR is designed for demanding charging environments, providing IP55 ingress protection and IK10 impact protection.

Schneider identifies the EVlink Pro AC Metal platform as suitable for indoor and outdoor installations, subject to appropriate installation and environmental conditions.

Commercial EV Charging Solution

The combination of 22kW three-phase charging, Type 2 socket, MID metering and Type B-EV RCD protection makes the EVB3S22N40MR particularly attractive for professional EV charging installations.

It can be used in:

• Workplace car parks
• Commercial premises
• Fleet depots
• Office developments
• Apartment blocks
• Hotels
• Retail locations
• Customer parking
• Business premises
• Managed charging networks
• Commercial EV charging facilities

Key Features

• Schneider Electric EVlink Pro AC
• Product reference: EVB3S22N40MR
• 22kW maximum AC charging power
• 32A
• Three-phase
• 3P + N
• 380–415V AC
• Type 2 socket outlet with shutter
• Untethered EV charging
• Compatible with Mode 3 Type 2 charging cables
• Integrated MID meter
• Integrated energy meter
• Type B-EV RCD
• MNx auxiliary
• IP55 ingress protection
• IK10 impact protection
• OCPP 1.6 JSON
• Ethernet
• Bluetooth
• Modbus TCP
• Optional 3G/4G
• Load management
• Charging detail records
• Diagnostic capabilities
• eSetup commissioning
• Upgradeable with 4G, Wi-Fi and ISO 15118 modules
• Indoor and outdoor installation capability
• Professional commercial EV charging solution

Why Choose the Schneider EVB3S22N40MR?

The Schneider EVB3S22N40MR combines several highly desirable features in a single professional EV charger: 22kW three-phase charging, an untethered Type 2 socket, integrated MID metering and Type B-EV RCD protection.

The integrated MID meter makes this model particularly suitable where accurate energy measurement is required, while the Type B-EV RCD configuration provides a further point of differentiation from other EVlink Pro AC models.

For businesses looking for a 22kW MID EV charger with Type 2 socket and Type B-EV RCD protection, the EVB3S22N40MR is a strong professional option from Schneider Electric.
