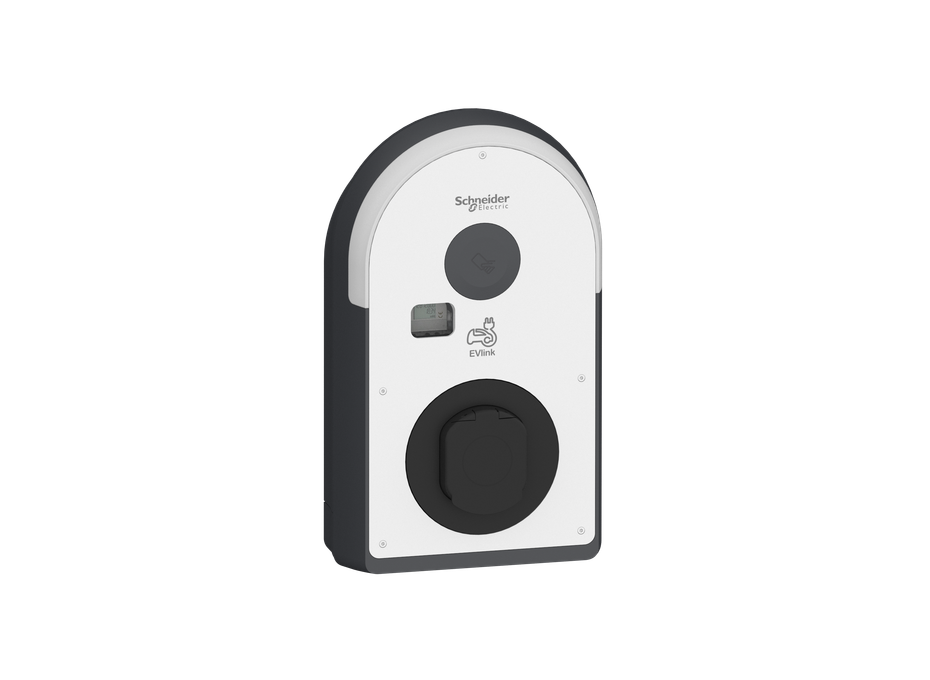

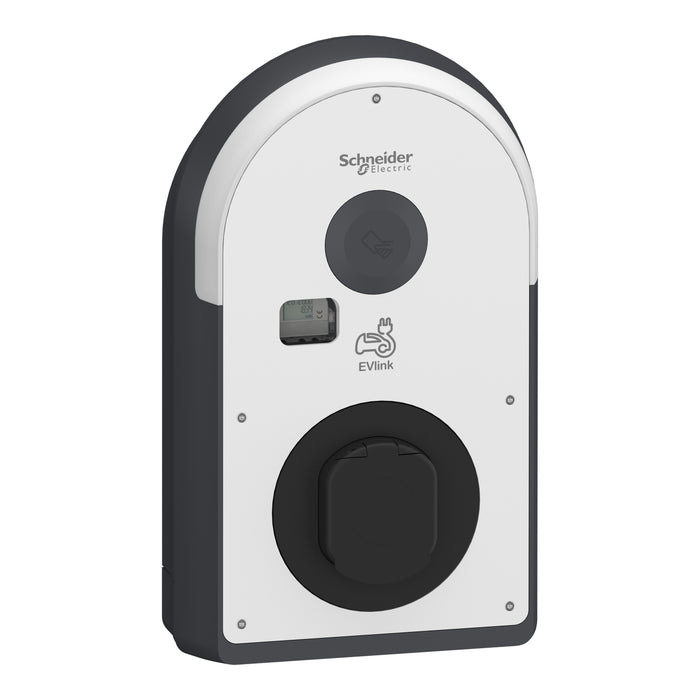

Schneider EVB3S22N40M EVlink Pro AC 22kW 32A 3 Phase Type 2 EV Charger
Estimated delivery time: 5-7 Working Days
Description
Schneider EVB3S22N40M EVlink Pro AC 22kW 32A 3-Phase Type 2 EV Charger with MID Meter
The Schneider Electric EVB3S22N40M EVlink Pro AC is a professional 22kW electric vehicle charging station designed for commercial, workplace, fleet, residential and semi-public EV charging applications. Offering 32A three-phase AC charging, an untethered Type 2 socket and an integrated 3-phase MID meter, this EVlink Pro AC charging station provides a flexible, connected and future-ready solution for modern electric vehicle charging installations.
The EVB3S22N40M is designed for 22kW AC charging from a 3-phase supply, making it suitable for EVs capable of accepting higher-power AC charging. The actual charging speed depends on the vehicle's onboard AC charger, charging cable and available electrical supply.
Schneider Electric specifies this model as a 22kW, 32A, 3P+N EV charging station with T2S socket outlet, 6mA RDC-DD and MID meter.
22kW 3-Phase EV Charging
With a maximum output of 22kW at 32A, the EVB3S22N40M provides high-power AC charging for suitable three-phase installations.
The 3-phase configuration makes this charger particularly suitable for commercial properties, workplaces, fleet facilities, apartment developments and other locations where faster AC charging is required.
A vehicle with an 11kW onboard AC charger, for example, will only draw up to 11kW even when connected to this 22kW charger.
Untethered Type 2 EV Charger
The EVB3S22N40M features a Type 2 socket outlet with shutter, providing an untethered charging solution.
A compatible Mode 3 Type 2 charging cable is connected between the charger and electric vehicle when charging is required. Because the cable isn't permanently attached, users can select a suitable cable length and keep the cable separately when the charger isn't being used.
This makes the EVB3S22N40M particularly useful for shared workplace, commercial and fleet charging environments.
Integrated MID Energy Meter
One of the biggest advantages of the EVB3S22N40M is its integrated 3-phase MID-certified energy meter.
The integrated MID meter makes this model particularly suitable for installations where accurate, compliant measurement of electricity consumed during EV charging is required.
This can be especially valuable for:
- Workplace charging
- Commercial car parks
- Fleet charging
- Employee EV charging
- Customer charging
- Tenant billing
- Managed charging installations
- Charge point operators
Schneider's product information specifically lists the EVB3S22N40M as incorporating a MID meter and integrated energy meter.
Integrated 6mA RDC-DD Protection
The EVB3S22N40M incorporates an integrated 6mA residual direct-current detection device (RDC-DD).
This is an important feature for EV charging installations and forms part of the charger's integrated protection arrangement. Schneider's product documentation specifies 6mA RDC-DD for this model.
The complete upstream electrical protection and installation requirements should be assessed by a suitably qualified installer in accordance with Schneider Electric's installation instructions and applicable UK requirements.
Smart and Connected EV Charging
The EVB3S22N40M is part of Schneider Electric's professional EVlink Pro AC charging platform.
It supports OCPP 1.6 JSON and provides Ethernet and Bluetooth connectivity, with optional 3G/4G connectivity and Modbus TCP available. Schneider also lists functions including load management, charging detail records and diagnostic capabilities.
This allows the charger to be integrated into suitable EV charging management and energy management systems.
Future-Ready EV Charging
The EVlink Pro AC platform has been designed to accommodate evolving EV charging requirements. Schneider states that the platform can be upgraded with 4G, Wi-Fi and ISO 15118 modules.
The charger can also be commissioned using Schneider Electric's eSetup app, providing installers with a convenient way to configure and commission the charging station.
IP55 and IK10 Protection
The EVB3S22N40M provides IP55 ingress protection and IK10 impact protection, helping protect the charging station against dust, water ingress and mechanical impact.
Schneider identifies the EVlink Pro AC platform as suitable for indoor and outdoor installation, subject to correct installation and environmental conditions.
Professional EV Charging Applications
The Schneider EVB3S22N40M is suitable for a wide range of applications, including:
- Commercial EV charging
- Workplace EV charging
- Fleet charging
- Business car parks
- Office developments
- Apartment developments
- Hotels and hospitality
- Customer and visitor charging
- Employee charging
- Tenant charging
- Fleet depots
- Managed parking facilities
- Semi-public EV charging
- EV charging requiring MID metering
Key Features
- Schneider Electric EVlink Pro AC
- Product reference: EVB3S22N40M
- 22kW maximum AC charging power
- 32A
- Three-phase
- 3P + N
- 380–415V AC
- Type 2 socket outlet with shutter
- Untethered EV charger
- Compatible with Mode 3 Type 2 charging cables
- Integrated 3-phase MID meter
- Integrated energy meter
- 6mA RDC-DD
- OCPP 1.6 JSON
- Ethernet connectivity
- Bluetooth connectivity
- Modbus TCP
- Optional 3G/4G connectivity
- Load management
- Charging detail records
- Diagnostic capabilities
- IP55 protection
- IK10 impact protection
- eSetup commissioning
- Upgradeable with 4G, Wi-Fi and ISO 15118 modules
- Suitable for indoor and outdoor installations
- Professional commercial EV charging solution
Why Choose the Schneider EVB3S22N40M?
The Schneider EVB3S22N40M combines high-power 22kW three-phase EV charging with an untethered Type 2 socket and integrated MID meter, making it particularly suitable for professional charging applications where energy consumption needs to be accurately measured.
Its combination of 22kW output, 32A three-phase charging, Type 2 socket, MID metering, 6mA RDC-DD, OCPP 1.6, load management, IP55 and IK10 protection makes it a strong choice for commercial and workplace EV charging installations.
The integrated MID meter is the major differentiating feature compared with the standard EVB3S22N4, making the EVB3S22N40M particularly relevant for charging installations where energy measurement and potential billing are important.
Installation and commissioning should be completed by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.
