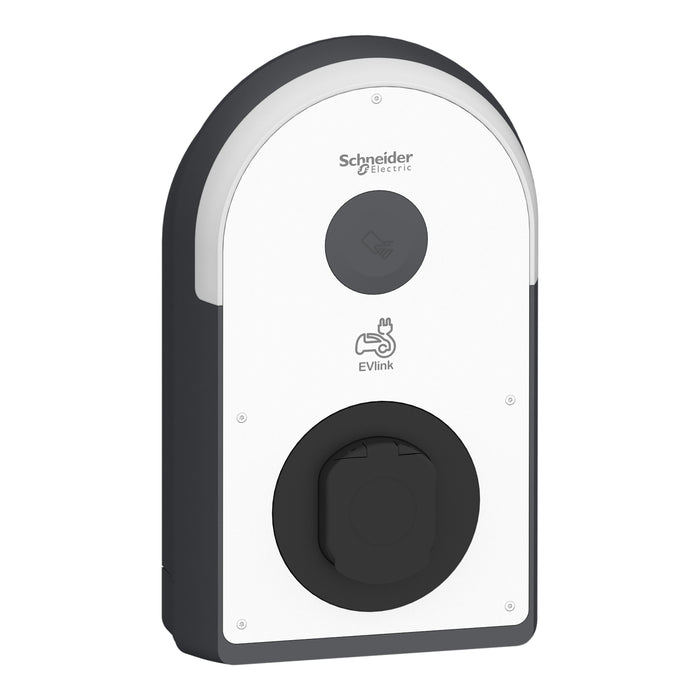

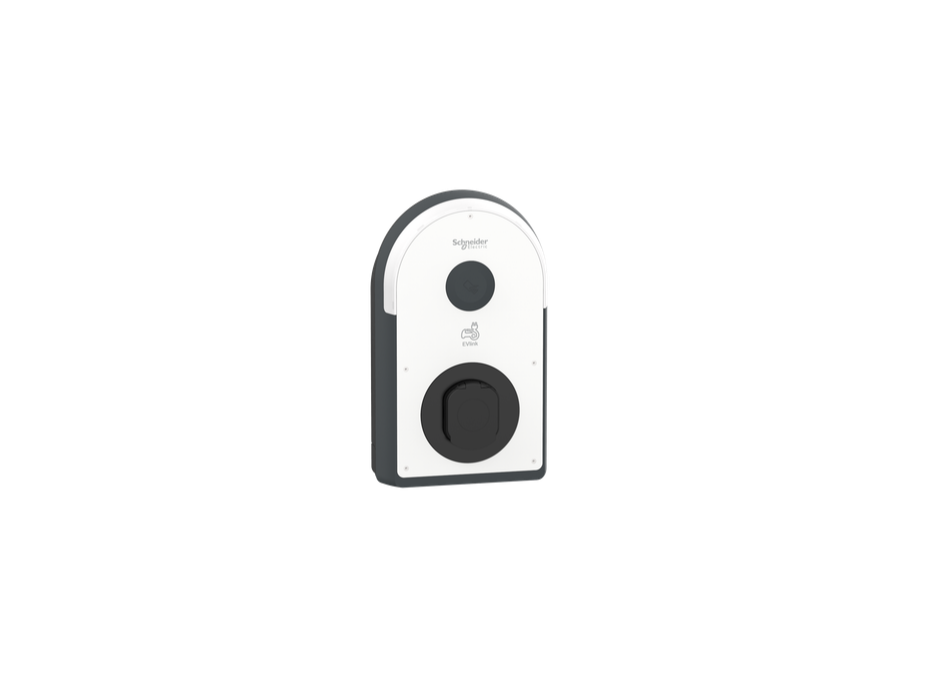

Schneider EVB3S22N4 EVlink Pro AC 22kW 32A 3-Phase Type 2 EV Charger

The Schneider Electric EVB3S22N4 EVlink Pro AC is a professional 22kW electric vehicle charging station designed for high-performance AC charging in commercial, workplace, fleet, residential and semi-public EV charging installations. Featuring a 32A three-phase supply and Type 2 socket outlet, the EVB3S22N4 provides a flexible untethered charging solution for electric vehicles equipped with Type 2 charging capability.

Part of Schneider Electric's professional EVlink Pro AC range, the EVB3S22N4 delivers up to 22kW of AC charging power at 32A using a 380–415V 3-phase supply. The Type 2 socket allows users to connect a compatible Mode 3 Type 2 charging cable, providing flexibility over cable length and connector configuration.

22kW 3-Phase EV Charging

With a maximum output of 22kW at 32A, the EVB3S22N4 is designed for installations with a suitable three-phase electrical supply. A 22kW three-phase EV charger can provide significantly faster AC charging than a typical 7.4kW single-phase charger, although the actual charging speed is ultimately determined by the vehicle's onboard AC charger and the charging cable being used.

The Type 2 socket outlet makes this charger particularly flexible for commercial and workplace environments because a separate compatible Type 2 charging cable can be selected according to the installation and vehicle requirements.

Untethered Type 2 EV Charger

The Schneider EVB3S22N4 is an untethered EV charger, meaning the charging cable is not permanently attached to the unit.

The charger uses a Type 2 socket with shutter, allowing customers to connect their own compatible Type 2 Mode 3 charging cable. This can be advantageous for workplaces, fleet environments, commercial car parks and multi-user charging locations where different cable lengths may be required.

Integrated 6mA RDC-DD Protection

The EVB3S22N4 incorporates a 6mA DC residual-current detection device (RDC-DD) designed specifically for EV charging applications.

The unit also includes an integrated MNx auxiliary contact. Schneider's product documentation identifies the EVB3S22N4 as the 22kW, 32A, 3-phase T2S socket version with 6mA RDC-DD and MNx auxiliary protection. (se.com)

Professional Smart EV Charging

The EVB3S22N4 is designed as a connected, professional EV charging station rather than a basic standalone wallbox. It supports OCPP 1.6 JSON, Ethernet, Bluetooth and Modbus TCP, with optional 3G/4G communication.

Available functions include load management, charging detail records and diagnostic capabilities, allowing the charger to be incorporated into managed EV charging installations and compatible charging management platforms. (shop.cnw.com.au)

IP55 and IK10 Protection

Built for demanding charging environments, the EVB3S22N4 features IP55 ingress protection and IK10 impact protection.

This makes the EVlink Pro AC suitable for appropriate indoor and outdoor installations when correctly installed. Schneider describes the platform as robust, modular and designed for low maintenance. (se.com)

Future-Ready EV Charging

The EVB3S22N4 is designed with future connectivity in mind. Schneider states that the EVlink Pro AC platform can be upgraded with 4G, Wi-Fi and ISO 15118 modules.

The charger can also be commissioned using Schneider Electric's eSetup app, helping installers configure and commission the EV charging station efficiently. (se.com)

Flexible Installation Options

The EVB3S22N4 can be installed in a variety of professional EV charging environments. Available mounting configurations include wall mounting, wall mounting using a kit enclosure, floor-standing pedestal installation and floor-standing installation using a kit enclosure.

Cable entry can be configured from the bottom, top or rear, providing additional flexibility for installers. (shop.cnw.com.au)

Ideal Applications

The Schneider EVB3S22N4 is particularly suitable for:

• Workplace EV charging
• Commercial EV charging
• Fleet charging
• Business car parks
• Office developments
• Apartment developments
• Managed parking facilities
• Customer and visitor charging
• Hospitality venues
• Fleet depots
• Commercial property developments
• Semi-public EV charging installations

Key Features

• Schneider Electric EVlink Pro AC
• Product reference: EVB3S22N4
• 22kW maximum AC charging power
• 32A three-phase charging
• 380–415V AC supply
• 3P + N
• Type 2 socket outlet with shutter
• Untethered EV charging
• Compatible with Mode 3 Type 2 charging cables
• Integrated 6mA RDC-DD
• Integrated MNx auxiliary contact
• IP55 ingress protection
• IK10 impact protection
• OCPP 1.6 JSON
• Ethernet connectivity
• Bluetooth connectivity
• Modbus TCP
• Optional 3G/4G connectivity
• Load management
• Charging detail records
• Diagnostic capabilities
• eSetup commissioning
• Compatible with Schneider EV charging management solutions
• Wall or pedestal mounting options
• Suitable for indoor and outdoor applications
• Professional commercial EV charging solution

Why Choose the Schneider EVB3S22N4?

The Schneider EVB3S22N4 is an excellent choice where a professional 22kW three-phase Type 2 EV charger is required without an integrated MID meter.

Its combination of 22kW output, 32A three-phase charging, untethered Type 2 socket, 6mA RDC-DD protection, OCPP 1.6 connectivity, load management, IP55 and IK10 protection makes it suitable for demanding workplace, commercial and fleet EV charging installations.

Unlike the EVB3S22NC0M, the EVB3S22N4 does not include an integrated MID energy meter, making it an important option where MID metering is not required. Schneider's EVlink Pro AC documentation specifically lists EVB3S22N4 as the non-MID 22kW T2S socket version. (download.schneider-electric.com)

Installation and commissioning should be carried out by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.
