Schneider EVB3S07N4AM EVlink Pro AC 7.4kW 32A Type 2 MID EV Charger!
Estimated delivery time: 5-7 Working Days
Description

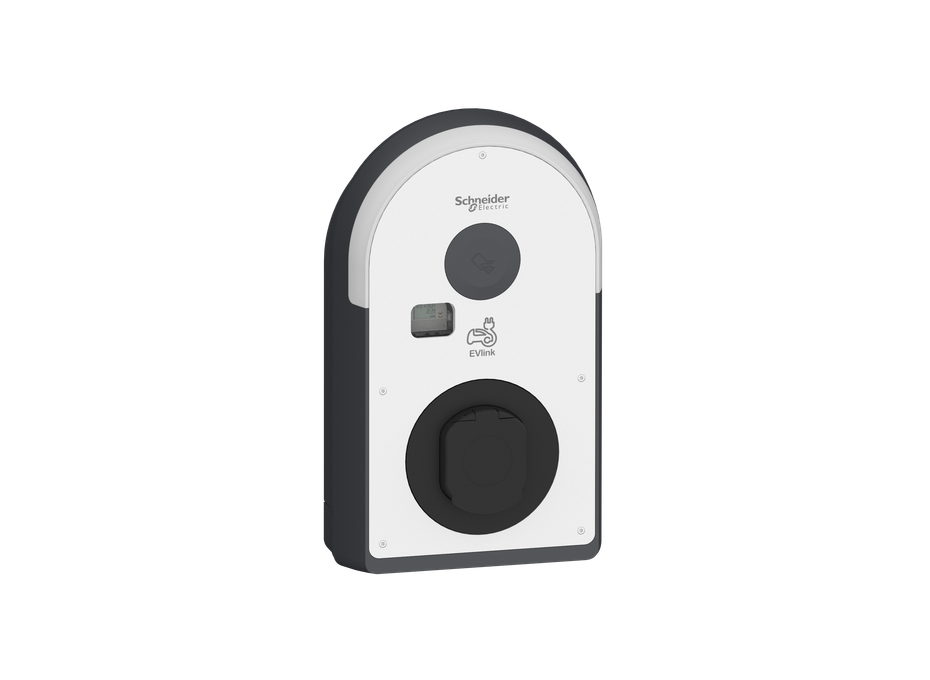

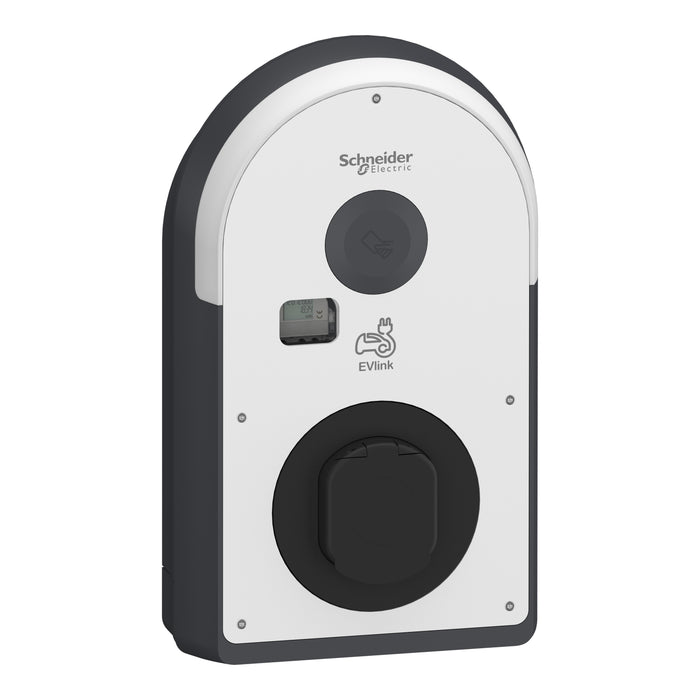

Schneider EVB3S07N4AM EVlink Pro AC 7.4kW 32A Type 2 EV Charger with MID Meter
The Schneider Electric EVB3S07N4AM EVlink Pro AC is a professional 7.4kW electric vehicle charging station designed for reliable AC charging across commercial, workplace, residential and other EV charging installations. Featuring a 32A single-phase supply, Type 2 socket and integrated MID energy meter, the EVB3S07N4AM provides accurate energy measurement alongside flexible and connected EV charging.
Part of Schneider Electric's EVlink Pro AC range, this 7.4kW EV charger delivers up to 32A on a single-phase supply and uses a Type 2 socket outlet, allowing the user to connect a suitable Type 2 charging cable to charge compatible electric vehicles and plug-in hybrid vehicles.
Integrated MID Energy Meter
One of the key advantages of the EVB3S07N4AM is its integrated MID-certified energy meter. This makes the charger particularly suitable for applications where accurate measurement of electricity consumption is important, including workplace charging, commercial premises, managed car parks and other professional EV charging environments.
The MID version is specifically identified by Schneider Electric as the EVlink Pro AC 7.4kW 32A 1-phase Type 2 socket model with MID meter, helping distinguish it from the standard EVB3S07N4A version.
7.4kW 32A Single-Phase EV Charging
The EVB3S07N4AM provides 7.4kW maximum AC charging power at 32A on a 1-phase supply, making it an ideal choice for installations requiring a high-power single-phase AC EV charging point.
The Type 2 socket design provides flexibility because the charging cable can be selected separately to suit the vehicle. This makes the unit suitable for a wide range of modern electric cars and plug-in hybrid vehicles fitted with Type 2 charging capability.
Integrated EV Charging Protection
The Schneider EVB3S07N4AM incorporates dedicated electrical protection designed for EV charging applications. It includes 6mA RDC-DD DC residual-current detection together with an integrated 30mA Type A-SI RCD.
This integrated protection helps provide dedicated residual-current protection within the charging station and can simplify the design of suitable EV charging installations. Always follow Schneider Electric's installation instructions and the requirements of the specific installation.
Robust IP55 and IK10 Protection
Built for demanding environments, the EVB3S07N4AM features IP55 ingress protection and IK10 impact protection. This makes it suitable for indoor and outdoor EV charging applications when correctly installed.
The EVlink Pro AC platform has been developed around a robust, modular and low-maintenance design, making it suitable for professional charging installations where durability and reliability are important.
OCPP 1.6 and Smart EV Charging Connectivity
The Schneider EVB3S07N4AM supports OCPP 1.6 JSON, enabling integration with compatible EV charging management and back-office systems.
The EVlink Pro AC platform also supports connected charging functionality and can be upgraded with additional communication technologies, including 4G, Wi-Fi and ISO 15118 modules. Schneider Electric also provides eSetup for commissioning the charging station.
Professional Commercial EV Charger
With its combination of 7.4kW charging, 32A single-phase operation, Type 2 socket, MID energy metering, integrated RCD protection, OCPP connectivity and robust IP55/IK10 construction, the EVB3S07N4AM is particularly well suited to professional EV charging installations.
Potential applications include:
- Workplace EV charging
- Commercial premises
- Office car parks
- Managed EV charging sites
- Residential developments
- Apartment developments
- Fleet charging
- Customer and visitor parking
- Public and semi-public charging installations
Key Features
- Schneider Electric EVlink Pro AC
- Product reference: EVB3S07N4AM
- 7.4kW maximum AC charging power
- 32A single-phase charging
- 1P + N supply
- Type 2 socket outlet with shutter
- Integrated MID energy meter
- 6mA RDC-DD DC residual-current detection
- Integrated 30mA Type A-SI RCD
- IP55 ingress protection
- IK10 impact protection
- OCPP 1.6 JSON
- Ethernet and Bluetooth connectivity
- Upgradeable with 4G and Wi-Fi modules
- Upgradeable with ISO 15118 module
- eSetup commissioning
- Load management capabilities
- Professional EV charging solution
- Suitable for indoor and outdoor applications
- Flexible and modular EV charging platform
- Schneider Electric EVlink Pro AC technology
Why Choose the Schneider EVB3S07N4AM?
The Schneider EVB3S07N4AM is an excellent choice where an installer or business requires a professional 7.4kW Type 2 EV charger with MID metering. The integrated MID meter makes this model particularly relevant to commercial and workplace charging installations where accurate energy measurement is required.
Combined with Schneider Electric's EVlink Pro AC platform, integrated electrical protection, OCPP 1.6 connectivity, IP55/IK10 protection and future communication upgrades, the EVB3S07N4AM provides a flexible and future-ready solution for modern EV charging installations.
Installation and commissioning should be carried out by a suitably qualified electrical installer in accordance with Schneider Electric's instructions and applicable UK requirements.
