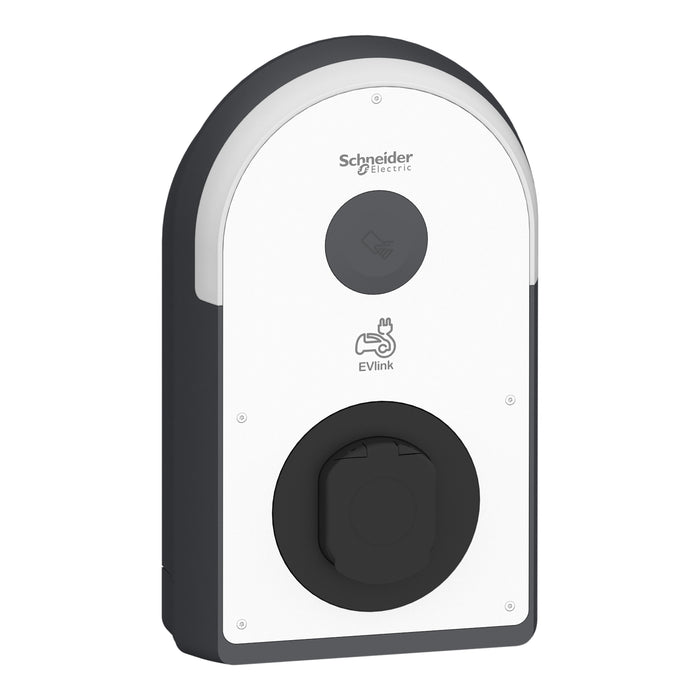

Schneider EVB3S07N4A EVlink Pro AC 7.4kW 32A Type 2 EV Charger
Estimated delivery time: 5-7 Working Days
Description
Schneider EVB3S07N4A EVlink Pro AC 7.4kW 32A Type 2 EV Charger
The Schneider Electric EVB3S07N4A EVlink Pro AC is a professional 7.4kW electric vehicle charging station designed for reliable AC charging in commercial, workplace, residential and other EV charging installations. Part of Schneider Electric's established EVlink Pro AC range, this 32A single-phase EV charger features a Type 2 socket outlet, making it suitable for charging electric vehicles using a compatible Mode 3 Type 2 charging cable.
Operating at 7.4kW and 32A on a 1-phase supply, the EVB3S07N4A provides an effective AC charging solution for a wide range of electric cars, vans and plug-in hybrid vehicles. The Type 2 socket design also provides flexibility, allowing the appropriate charging cable to be selected according to the vehicle and installation requirements.
Integrated EV Charging Protection
Safety is a key feature of the Schneider EVlink Pro AC. The EVB3S07N4A incorporates an RDC-DD residual direct current detection device rated at 6mA together with an integrated 30mA Type A-SI (Super Immunised) residual current device. This integrated protection helps simplify the overall EV charging installation while providing dedicated residual-current protection within the charging station.
Robust IP55 and IK10 Construction
Designed for demanding charging environments, the EVB3S07N4A offers IP55 ingress protection and IK10 impact protection, making it suitable for both indoor and outdoor applications when installed correctly. The EVlink Pro AC platform is designed around a robust, modular construction intended to provide dependable operation with low maintenance requirements.
Smart EV Charging Connectivity
The Schneider EVB3S07N4A is more than a basic AC EV charger. It supports OCPP 1.6 JSON, Ethernet and Bluetooth connectivity, with optional 3G/4G communication available depending on the configuration. The charger can support functions including charging detail records, load management, diagnostics and software updates. It can also integrate with Schneider Electric's wider EV charging ecosystem, including EcoStruxure EV Charging Expert and EV Advisor.
Easy Installation and Commissioning
The EVlink Pro AC has been designed to make installation and commissioning straightforward for qualified installers. Schneider Electric provides the eSetup commissioning app, while the charger supports wall-mounted installation as well as compatible pedestal and enclosure mounting options. Cable entry can be configured from the top or bottom to suit the installation.
Future-Ready EV Charging
The EVB3S07N4A is designed with future expansion in mind. Schneider Electric states that the EVlink Pro AC can be upgraded with 4G, Wi-Fi and ISO 15118 modules, providing additional flexibility as EV charging requirements and connected charging technologies develop.
Whether you are installing an EV charging point at a workplace, commercial premises, car park, residential development or other property, the Schneider EVB3S07N4A 7.4kW EV charger provides a robust and flexible Type 2 AC charging solution from a leading electrical technology manufacturer.
Key Features
- Schneider Electric EVlink Pro AC EV charger
- Product reference: EVB3S07N4A
- 7.4kW maximum AC charging power
- 32A single-phase charging
- 1P + N power supply
- Type 2 socket outlet with shutter
- Compatible with Mode 3 Type 2 charging cables
- Integrated 6mA RDC-DD DC residual-current detection
- Integrated 30mA Type A-SI RCD
- IP55 ingress protection
- IK10 impact protection
- OCPP 1.6 JSON communication
- Ethernet and Bluetooth connectivity
- Optional 3G/4G connectivity
- Modbus TCP support
- Integrated Class 1 energy meter
- Load management functionality
- Charging detail records
- Diagnostics and software update capability
- eSetup app commissioning
- Suitable for indoor and outdoor installation
- Modular and future-ready EV charging platform
- Optional 4G, Wi-Fi and ISO 15118 upgrades
- Schneider Electric EVlink Pro AC range
Why Choose the Schneider EVB3S07N4A?
The EVB3S07N4A is particularly suited to customers looking for a commercial-grade 7.4kW EV charging station rather than a basic domestic wallbox. Its combination of Type 2 socket flexibility, integrated electrical protection, IP55 and IK10 protection, OCPP connectivity, load management capability and future upgrade options makes it a strong choice for professional EV charging installations.
Please ensure the EV charger is installed, configured and commissioned by a suitably qualified electrical installer in accordance with the manufacturer's instructions and applicable UK electrical regulations.
