Schneider EVA1RFKS2 EVlink Pro AC Metal Kit Enclosure Dual Pedestal

Schneider EVA1RFKS2 EVlink Pro AC Metal Kit Enclosure Dual Pedestal

SKU EVA1RFKS2
£1,210.35 - £1,210.35
£1,210.35 inc VAT £1,008.63 exc VAT
£1,210.35 - £1,210.35
£1,210.35 inc VAT £1,008.63 exc VAT inc VAT £1,008.63 exc VAT

Estimated delivery time: 5-7 Working Days

Description

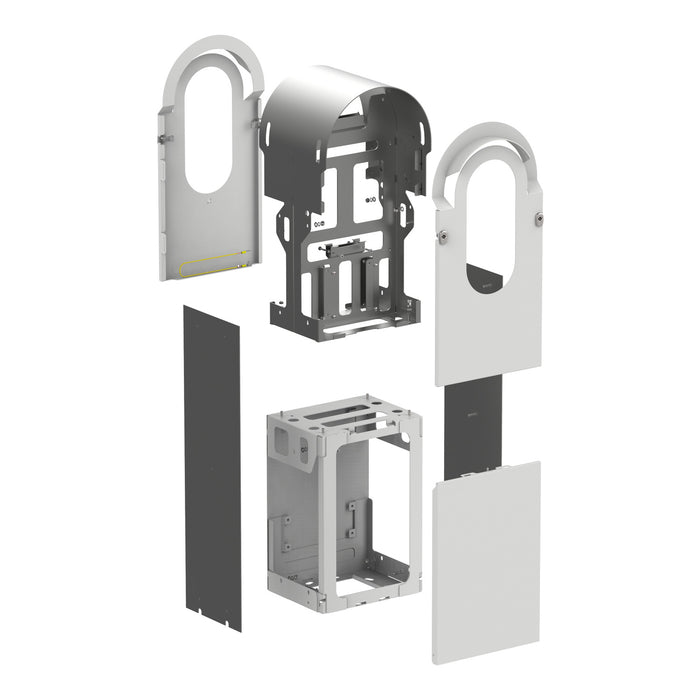

Schneider Electric EVlink Pro AC Metal Kit Enclosure for 2 Charging Stations (EVA1RFKS2)

Expand your EV charging capabilities and maximize space efficiency with the Schneider Electric EVA1RFKS2 EVlink Pro AC Metal Kit Enclosure. Engineered to house two back-to-back or side-by-side floor-standing charging stations, this commercial-grade dual pedestal structure provides industrial protection, streamlined power distribution, and modern aesthetics for busy commercial, fleet, and public parking environments.

Designed for High-Capacity Commercial EV Charging

Constructed from heavy-duty electro-galvanised C4M steel, the EVA1RFKS2 delivers exceptional structural strength, weather resistance, and corrosion protection. Finished in sleek RAL 9003 white (side panels) and RAL 9022 alu grey (front/rear plates), this floor-mounted enclosure combines visual appeal with rugged public infrastructure durability.



Technical Specifications & Key Features

  • Product Model: Schneider Electric EVA1RFKS2 (EVlink Pro AC Series)

  • Capacity: Metallic kit enclosure designed for 2 floor-standing EV charging stations

  • Material & Finish: Heavy-gauge electro-galvanised C4M steel (weather-proof and impact-resistant)

  • Color Finish: Front/Rear: Alu Grey (RAL 9022) | Sides: White (RAL 9003)

  • Dimensions: 1360 mm (H) x 390 mm (W) x 355 mm (D)

  • Net Weight: 61 kg (ultra-stable ground mounting designed for dual-station stability)

  • Customization: Includes customizable front/rear panels for station branding, payment info, and user instructions

Efficient Dual-Station Installation

The EVA1RFKS2 dual-station enclosure allows Charge Point Operators (CPOs) and electrical contractors to install two independent EVlink Pro AC chargers on a single concrete foundation base. Integrated internal raceways conceal and route cabling safely, lowering installation costs per charger while ensuring full compliance with European electrical standards.

Specification

What is the Schneider EVA1RFKS2?

The Schneider Electric EVA1RFKS2 is a dual-charger electro-galvanised steel pedestal enclosure kit designed for mounting two floor-standing EVlink Pro AC charging stations. Measuring 1360 mm high, 355 mm deep, and weighing 61 kg, this heavy-duty metallic pedestal offers weatherproofing, dual cable management, and customizable panel branding for fleet and public charging infrastructure.

FAQ's

Frequently Asked Questions (FAQ)

Q1: What is the main difference between Schneider EVA1RFKS1 and EVA1RFKS2?

A: The EVA1RFKS1 is designed to house a single (1) floor-standing EVlink Pro AC charger (depth: 180.3 mm, weight: 40 kg), while the EVA1RFKS2 is engineered to house two (2) floor-standing EVlink Pro AC chargers on one pedestal (depth: 355 mm, weight: 61 kg).

Q2: What material is the EVA1RFKS2 enclosure constructed from?

A: It is built from industrial-grade electro-galvanised C4M steel, offering maximum protection against corrosion, severe weather, and physical impacts in public commercial installations.

Q3: What are the exact dimensions and weight of the EVA1RFKS2 dual pedestal?

A: The enclosure measures 1360 mm (Height) x 390 mm (Width) x 355 mm (Depth) and has a net weight of 61 kg, providing a stable foundation for two charging units.

Q4: Can the panels of the EVA1RFKS2 be customized with company logos or branding?

A: Yes, the panels are customizable. Schneider Electric provides official 2D dimension templates so operators and site owners can easily apply vinyl logos, payment instructions, or branded graphics.
