Schneider A9D11816 Type C 16A 30MA 10KA RCBO

Schneider A9D11816 Type C 16A 30MA 10KA RCBO

SKU A9D11816
£57.00 - £57.00
£57.00 inc VAT £47.50 exc VAT
£57.00 - £57.00
£57.00 inc VAT £47.50 exc VAT inc VAT £47.50 exc VAT
Availability:
10 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

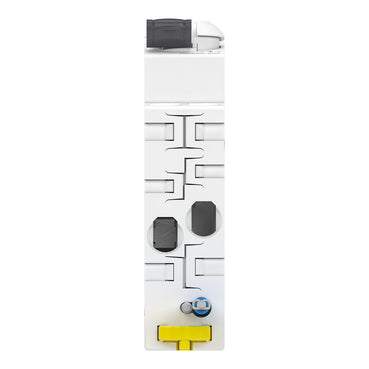

Protect your circuits with the Schneider Electric A9D11816 iC60H RCBO – a compact 1P+N residual current circuit breaker with overcurrent protection. Rated at 16A with a 30mA earth leakage sensitivity and C curve tripping characteristic, this modular device ensures reliable protection against short circuits, overloads, and electric shocks. Ideal for residential and commercial applications, it features a 240V operating voltage, DIN rail mounting, and a 10kA breaking capacity. Designed for safety and efficiency, the iC60H RCBO includes Visitrip and VisiSafe indicators for easy fault detection and maintenance.

Specification
  • Device Short Name iC60H RCBO
  • Poles Description 1P + Ns
  • [In] Rated Current 16 A at 50 °C
  • Earthing System TN
  • Curve Code C
  • Earth-Leakage Sensitivity 30 mA
  • Breaking Capacity 10000 A Icn at 230/240 V AC 50/60 Hz
  • Network Frequency 50 Hz
  • Network Type AC
  • Trip Unit Technology Thermal-magnetic
  • [Ue] Rated Operational Voltage 230/240 V AC 50/60 Hz
  • Control Type Toggle
  • Local Signalling ON/OFF indication
  • Mounting Mode Clip-on
  • Mounting Support DIN rail

Datasheet

Product Dimensions

  • Height 110 mm
  • Width 18 mm
  • Depth 77.5 mm
