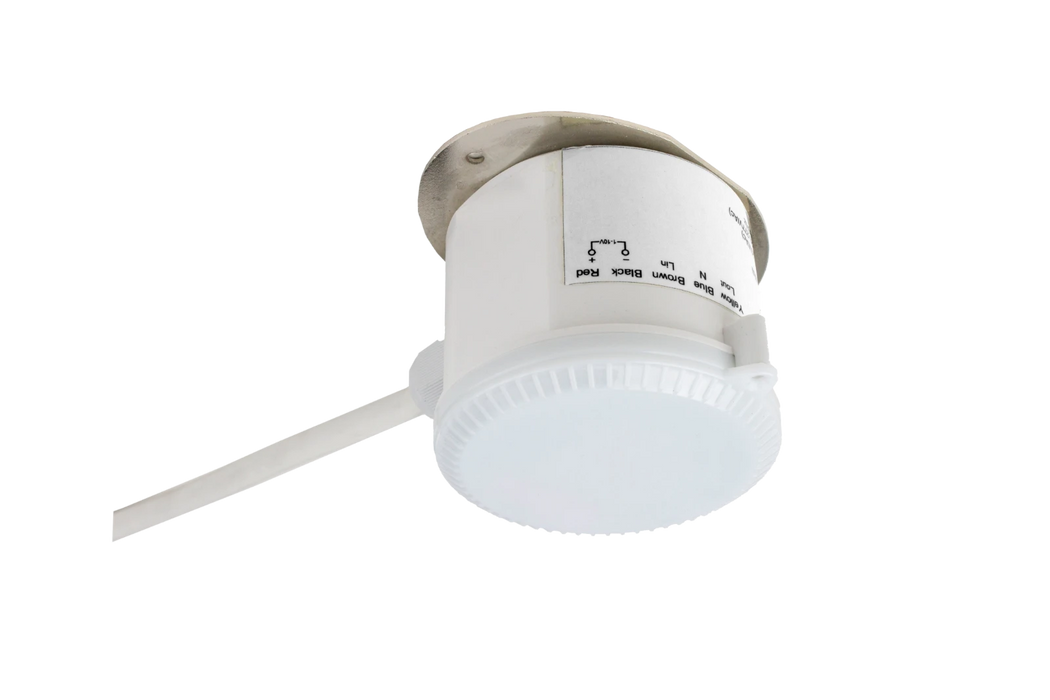

Robus RRD360MW-01 RADAR Surface Mounted 360 Degree Microwave Sensor

Robus RRD360MW-01 RADAR Surface Mounted 360 Degree Microwave Sensor

SKU RRD360MW-01
£64.00 - £64.00
£64.00 inc VAT £53.33 exc VAT
£64.00 - £64.00
£64.00 inc VAT £53.33 exc VAT inc VAT £53.33 exc VAT

Estimated delivery time: Next working day

Description

ROBUS RADAR 360° Microwave Sensor with 3-Step Dimming IP65 White

The ROBUS RADAR 360° Microwave Sensor is an advanced occupancy sensor designed to maximise energy savings while maintaining safe and effective lighting levels in commercial and industrial environments. Unlike traditional PIR sensors, microwave technology detects movement through non-metallic materials and offers enhanced sensitivity, making it ideal for warehouses, car parks, stairwells, communal areas, corridors and large commercial spaces.

Featuring intelligent 3-step dimming control, the RADAR automatically switches connected lighting to 100% when movement is detected, then reduces output to a selectable standby level before finally switching off when the area becomes vacant. This creates significant energy savings while maintaining comfort and safety in occupied spaces.

The robust IP65-rated housing and IK10 impact-resistant construction make the sensor suitable for both indoor and outdoor installations. With a maximum mounting height of 15 metres and detection coverage up to 10 metres, the RADAR is particularly suited to high-bay and industrial lighting applications.

Ideal Applications

  • Warehouses
  • High bay lighting
  • Factories
  • Car parks
  • Stairwells
  • Corridors
  • Apartment communal areas
  • Industrial buildings
  • Retail units
  • Outdoor commercial lighting
Specification
  • Suitable for indoor and outdoor applications
  • Weatherproof IP65 polycarbonate housing with nickel plated stainless steel mount
  • High impact rating of IK10
  • Surface mounted
  • Power consumption of <0.7W
  • Maximum mounting height of 15m
  • Maximum detection range of 10m
  • Detection angle of 360º
  • Adjustable hold duration of 5s to 30 min
  • Adjustable standby duration of 0s to 60 min or infinite
  • Adjustable lux settings of 2 lux to 50 lux or disabled
  • LED load max 800W
  • Fluorescent load max 800W
  • Incandescent load max 1200W

Datasheet

FAQ's

What is the ROBUS RADAR Microwave Sensor?

The ROBUS RADAR is a 360° microwave occupancy sensor that automatically controls lighting based on movement detection. It helps reduce energy consumption by dimming or switching lights off when areas are unoccupied.

How is a microwave sensor different from a PIR sensor?

Microwave sensors detect movement using radio waves rather than heat. This allows them to provide more sensitive detection and operate effectively in larger spaces where PIR sensors may be less effective.

What is 3-step dimming?

3-step dimming automatically:

  1. Switches lights to 100% when movement is detected.
  2. Reduces output to a selected standby brightness level.
  3. Turns lights off after a programmed period of inactivity.

Why choose the RADAR sensor?

The combination of microwave detection, IP65 protection, IK10 impact resistance and intelligent dimming control makes it ideal for energy-efficient commercial lighting systems.

Is a microwave sensor better than a PIR sensor?

For large commercial spaces, microwave sensors often provide more reliable coverage because they can detect movement more effectively across larger areas and around obstacles.
