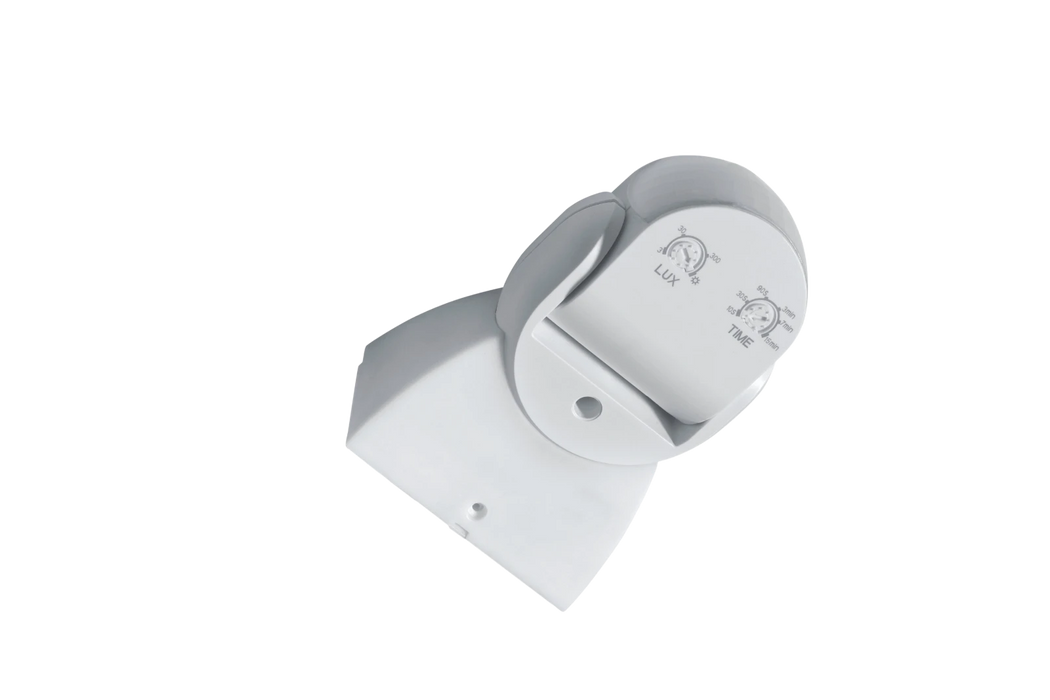

Robus RPR180PIR-01 PROTON Multi-Directional 180 Degree PIR, IP54 - White

Robus RPR180PIR-01 PROTON Multi-Directional 180 Degree PIR, IP54 - White

SKU RPR180PIR-01
£13.50 - £13.50
£13.50 inc VAT £11.25 exc VAT
£13.50 - £13.50
£13.50 inc VAT £11.25 exc VAT inc VAT £11.25 exc VAT

Estimated delivery time: Next working day

Description

ROBUS PROTON 180° PIR sensor in white with IP54 rating, multi-directional detection, manual override and adjustable time delay. Ideal for outdoor lighting control, security lighting, entrances, walkways and commercial areas.

Specification

PROTON Passive Infra-Red detectors are designed using the latest electronic integrated chips to provide reliable, accurate detection to ensure that lighting is switched on only when required, but more importantly, switched off when the area is vacated to make much sought after energy savings . Available as 360° ceiling and 180° wall mounted versions . Large terminals suitable for 2 conductors in each - LS, N, & E conductors can be taken to light fitting without using a junction box . No minimum load requirements mean a single low wattage fitting can be controlled if required

  • Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
  • Suitable for outdoor applications.
  • Manual over ride with automatic reset after 8 hours
  • Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out.
  • Earth terminal included
  • 3 wire - multiple sensors can be wired in parallel
  • High load contact rating, allows numerous fittings to be switched
  • No minimum load requirements
  • Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED
  • Adjustable time delay of 10sec to 15min

Datasheet
